Technical Specifications

Product Overview

Industrial Emergency Stop Safety Switch

This 40mm red mushroom head emergency stop switch is engineered for safety-critical industrial environments, providing reliable and immediate circuit interruption. It is built with high-grade anti-flame materials and silver alloy contacts to ensure longevity and superior electrical performance. Rated to IP65 standards, it provides robust protection against dust and water ingress, making it suitable for demanding applications in control cabinets and distribution systems.

Diagram explaining the model designation and contact configuration codes — Technical guide for model selection and contact type identification.

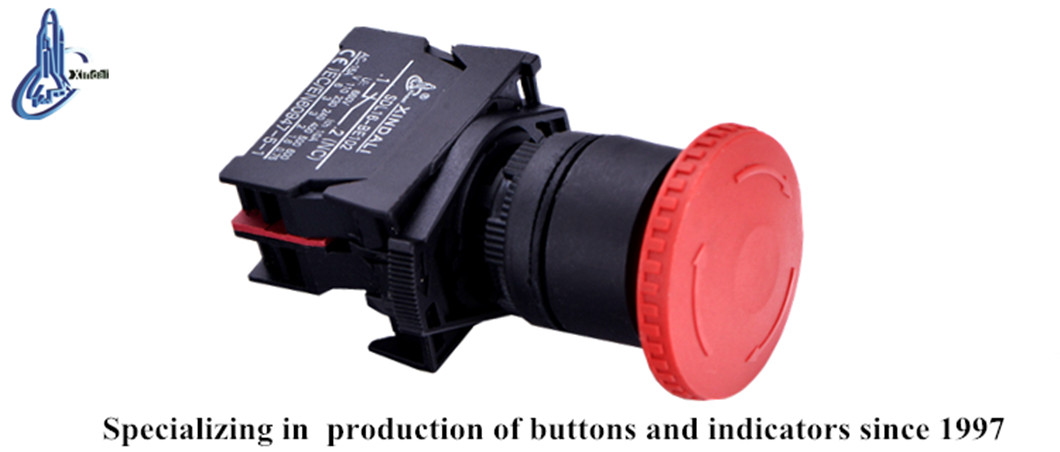

Emergency stop button front view — Robust red mushroom actuator for high-visibility emergency shutdown.

Technical Specifications

Electrical Performance

660 V

Max Rated Voltage

10 A

Thermal Current

60 cd/m2

Brightness

Contact Types: 1NO1NC2NO2NC1NO+1NC3NO2NC+1NO

Dimensions & Mounting

Dimensions Table

Feature	Measurement
Mushroom Head Diameter	40mm
Mounting Hole	M22
Max Panel Thickness	5mm
Total Button Height	49mm

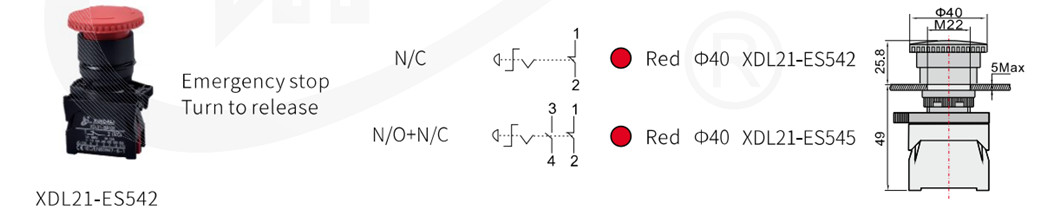

Technical dimensional line drawing of the emergency switch — Precise dimensional data for mounting and installation planning.

Compliance & Environment

Certifications

CERoHSISO 9001IEC 60947-5-1GB/T 14048.1

Ingress Protection: IP65 (Dust-tight and water-resistant)
