Emergency Stop Push Button Switch
This emergency stop push button switch is designed for quick activation in emergency situations. It provides a critical safety measure for operators and equipment in various machinery and control panel applications.
Technical Specifications
Overview
Industrial Emergency Stop Solution

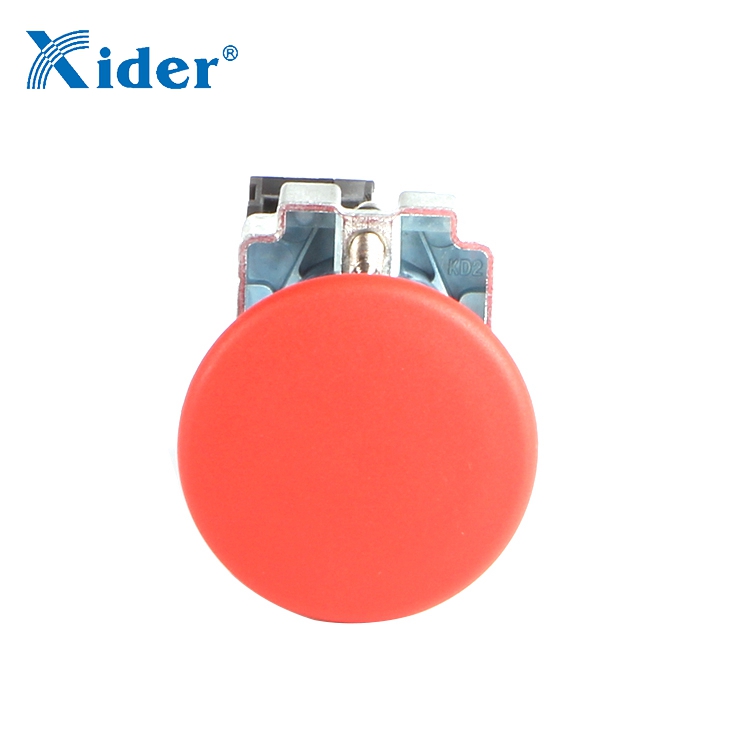

This robust emergency stop switch is engineered for critical safety applications in industrial environments. Featuring a high-visibility, mushroom-shaped red button, it ensures rapid activation during emergency situations to protect both operators and machinery. Built with durable materials, this switch is designed to withstand demanding operational conditions while maintaining reliable performance.
Technical Specifications
Rated Operational Current
10 A
Rated Current
400 V AC
Voltage
Ingress Protection
IP40
- Rated Insulation Voltage (Ui)
- 500 V
- Thermal Current (Ith)
- 10 A
- Contact Block
- Normally Closed (NC)
Compliance & Standards
- Compliance Standards
- IEC60947-5-1EN60947-1
General Information
- Country of Origin
- China
