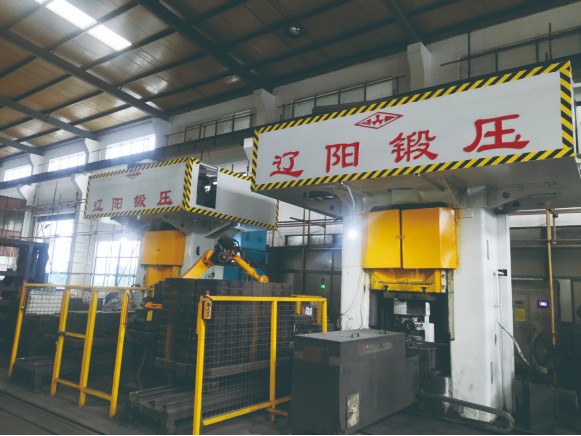

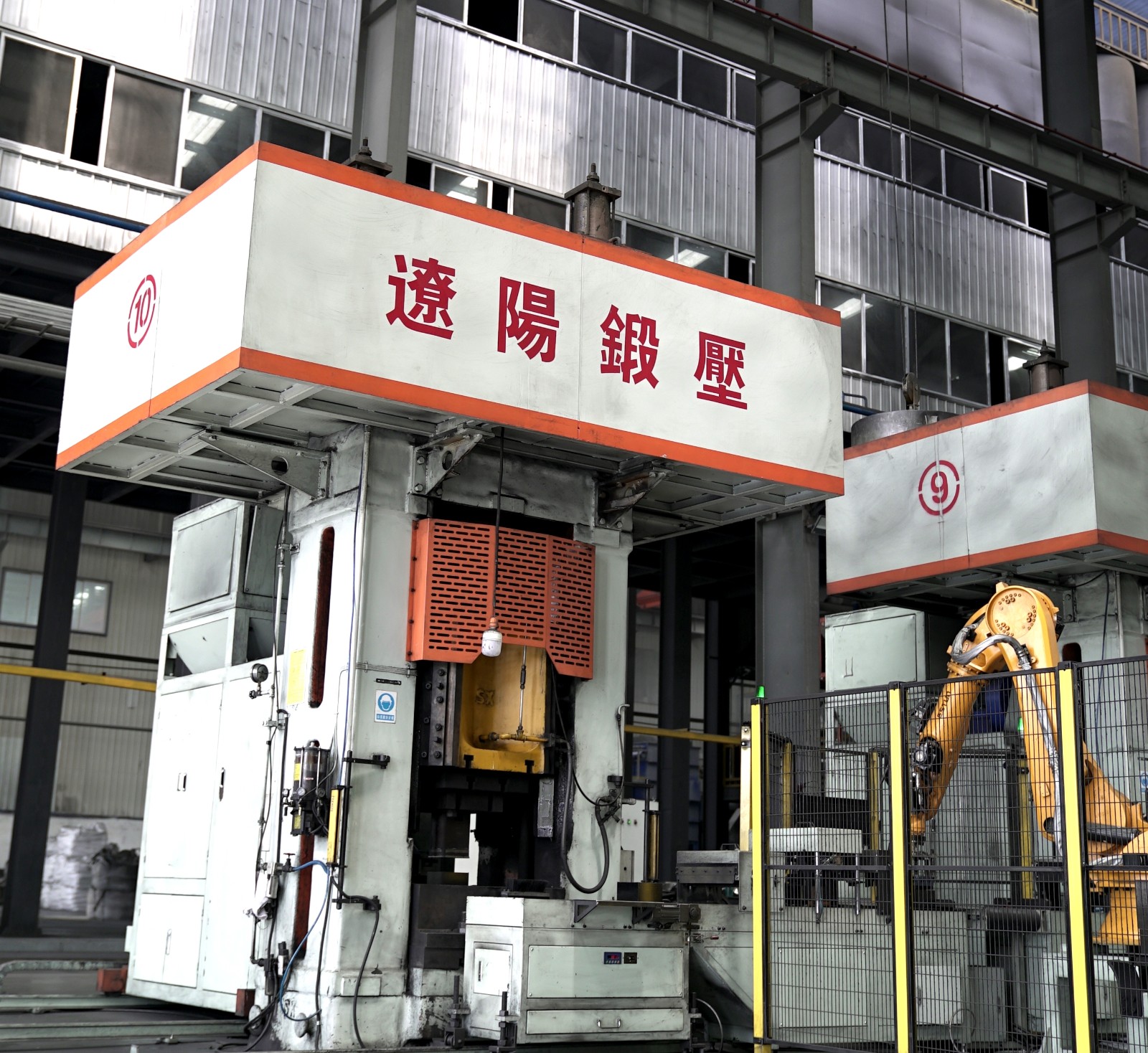

Electric Refractory Brick Press
The electric screw press is designed for producing various refractory bricks, including clay, magnesia, and corundum bricks. Its structure ensures stable transmission, convenient maintenance, and smooth, low-noise operation.
Technical Specifications
Overview
High-Performance Refractory Brick Press
This series of electric refractory brick presses is engineered for high-force pressing operations, providing consistent accuracy and reliability for demanding manufacturing environments. Designed with a robust frame and precision control systems, these machines are optimized for high-volume production requirements. The series offers a range of nominal forces from 4000 KN to 20000 KN, ensuring a suitable configuration for diverse industrial metal forming and material compression tasks.
Key Metrics
Performance Highlights
20,000 KN
Max Nominal Force
160 KW
Max Motor Power
850 mm
Max Slide Stroke
Technical Specifications
Machine Specifications Matrix
| Parameter | LDS67-400 | LDS67-630 | LDS67-1000 | LDS67-1250 | LDS67-1400 | LDS67-1600 | LDS67-2000 |
|---|---|---|---|---|---|---|---|
| Nominal Force (KN) | 4000 | 6300 | 10000 | 12500 | 14000 | 16000 | 20000 |
| Allowable Force (KN) | 8000 | 12500 | 20000 | 25000 | 28000 | 32000 | 40000 |
| Slide Stroke (mm) | 500 | 650 | 750 | 750 | 800 | 800 | 850 |
| Min Closing Height (mm) | 700 | 720 | 860 | 860 | 900 | 1000 | 1200 |
| Trips (min-1) | 18 | 16 | 14 | 14 | 13 | 9 | 9 |
| Motor Power (KW) | 45x1 | 45x2 | 75x2 | 90x2 | 110x2 | 132x2 | 160x2 |
Features
- Suitable Applications
- Metal FormingStampingForgingExtrusionRefractory Brick Production
