Double Push Button Cap Switch with Return Spring
This double push button switch is designed with a cap switch mechanism and a return spring. It is suitable for controlling circuits in AC voltage environments up to 660V.
Technical Specifications
Product Overview
Double Push Button Cap Switch

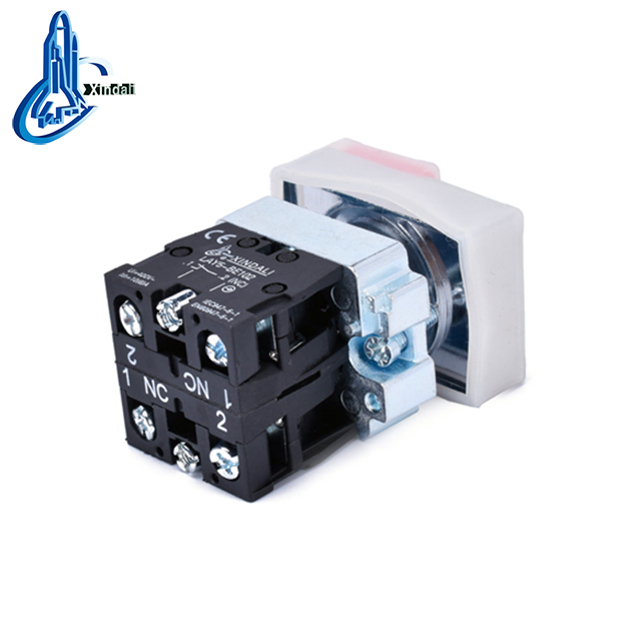

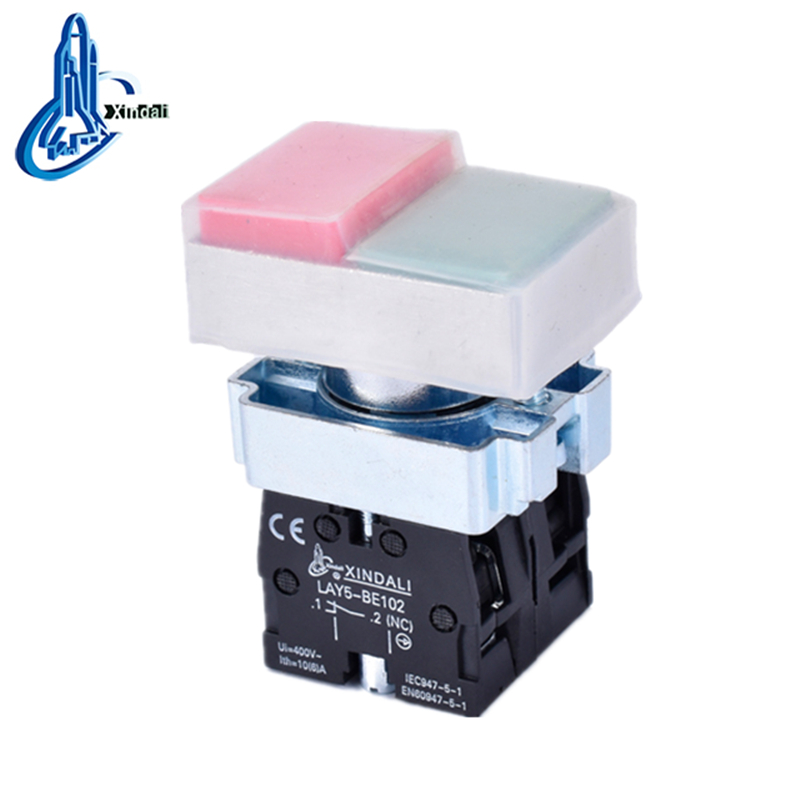

The LAY5-BL9425 is a professional-grade double push button switch designed for industrial control applications. It features a flush green button and a convex red button, both protected by a waterproof cover rated IP65 for environmental durability. Constructed with high-grade anti-flame materials and silver alloy contacts, this switch ensures reliable operation in demanding electrical environments such as distribution cabinets and control systems.
Technical Parameters
Electrical Specifications
| Parameter | Value |
|---|---|
| Rated Insulation Voltage | 600V AC |
| Conventional Heating Current | 10A |
| Insulation Resistance | ≥50MΩ |
| Contact Resistance | ≤25mΩ |
| Withstand Voltage | 2.5kV AC |
Performance Metrics
1,000,000 cycles
Mechanical Life
500,000 cycles
Electrical Life

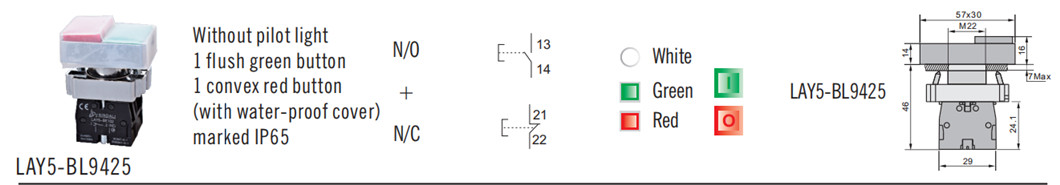

Construction & Design
Design Features
- Flush green button
- Convex red button
- Waterproof cover included
- Return spring mechanism
- M22 mounting thread
Ingress Protection
IP65
Certifications & Standards
- Compliance
- CEISO 9001RoHSULIEC 60947-5-1
