Technical Specifications
Overview
Versatile Double Layer Production

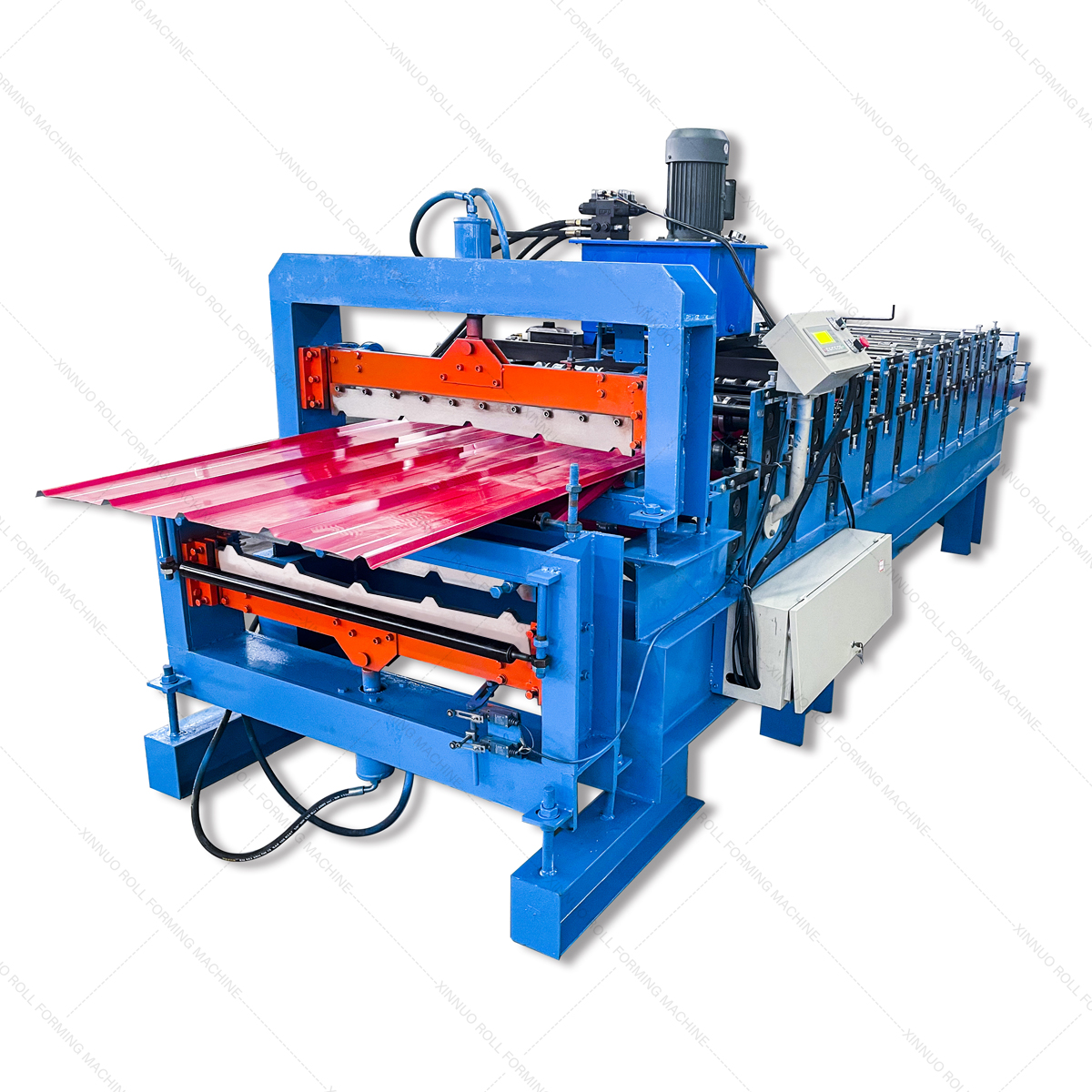

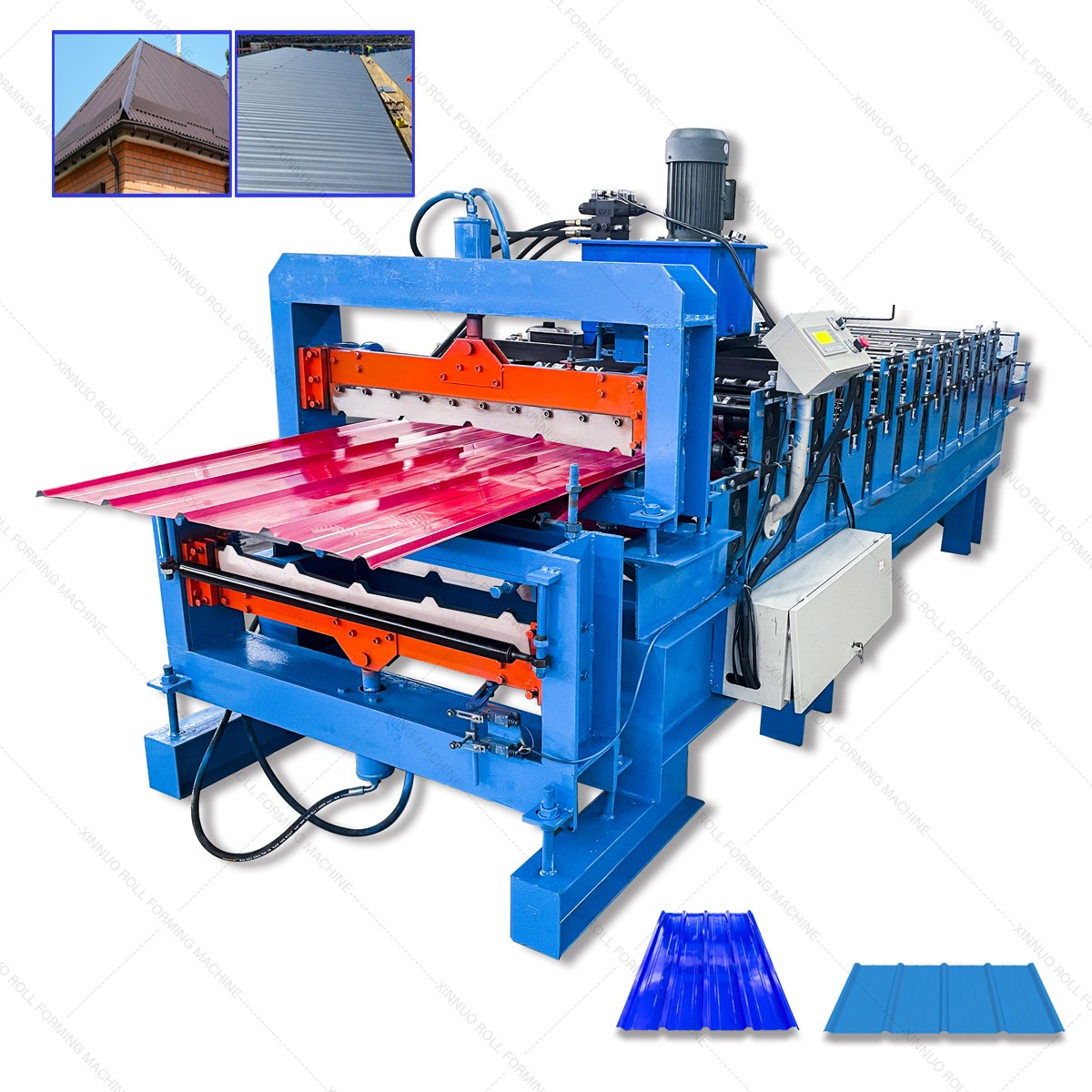

This double-layer roof panel roll forming machine is engineered for the efficient and precise production of two distinct roofing profiles within a single compact footprint. By utilizing a double-decker configuration, it allows manufacturers to optimize workshop space while maintaining high-volume output for various metal roofing applications. The system features a robust steel frame and an automated control system to ensure consistent quality and long-term reliability in industrial environments.
Key Performance Metrics
Performance Highlights
12 m/min
Max Productivity
5 T
Loading Capacity
15 m/min
Max Working Speed
Material Specifications
- Compatible Materials
- Color steel plateGalvanized sheetAluminum coils
- Feeding Material Thickness
- 0.8 mm
- Feeding Material Width
- 914-1250mm
Technical Parameters
- Roller Stations
- 11-18 rows (customizable)
- Roller Material
- High grade No. 45 forged steel
- Shaft Diameter
- 70-80mm
Control & Hydraulic Systems
Control Cabinet Features
- PLC computer control system
- Programmable length and quantity settings
- Automatic and manual operation modes
- Multi-language support: English, Chinese, Spanish, Russian
Hydraulic System Details
| Parameter | Specification |
|---|---|
| Power | 4kW |
| Oil Type | 46# Hydraulic Oil |
| Working Pressure | 12-16Mpa (Adjustable) |
| Solenoid Valve | 1 Group |
Cutting & Finishing
Cutting System
- Blade Material: Cr12Mov with quenched treatment
- Drive: Hydraulic drive
- Mechanism: Dimension decided by PLC control
Uncoiler Specifications
Manual Uncoiler Parameters
| Feature | Value |
|---|---|
| Inner Diameter | 500-508mm |
| Max Outer Diameter | 1250mm |
| Steel Coil Width | 1300mm |
| Main Motor Power | 5.5KW AC Motor |
Certifications & Warranty
Quality Standards
CEISO 9001Supplier Assessed
- Warranty
- 1 Year (Negotiable)
