Technical Specifications
Product Overview

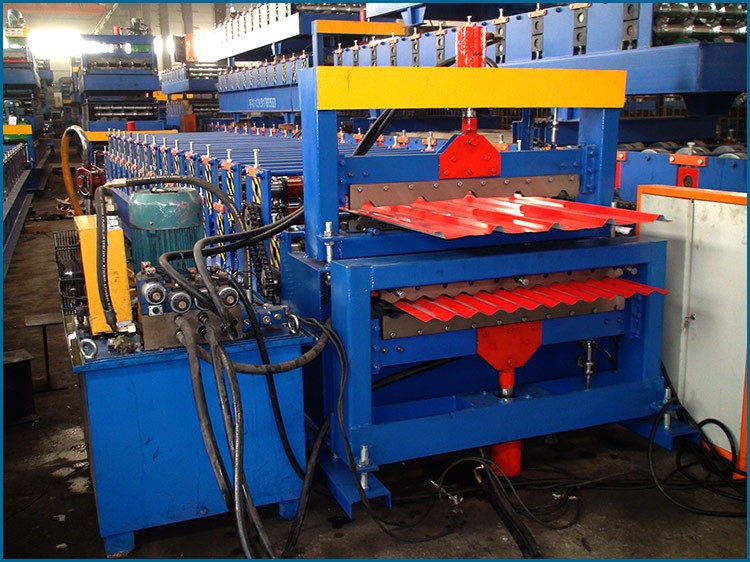

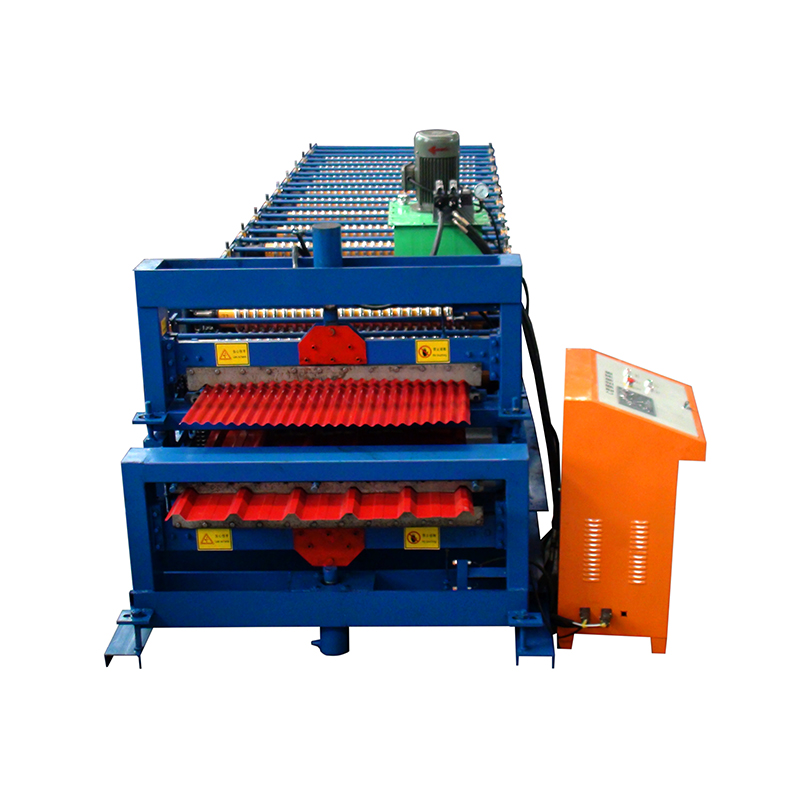

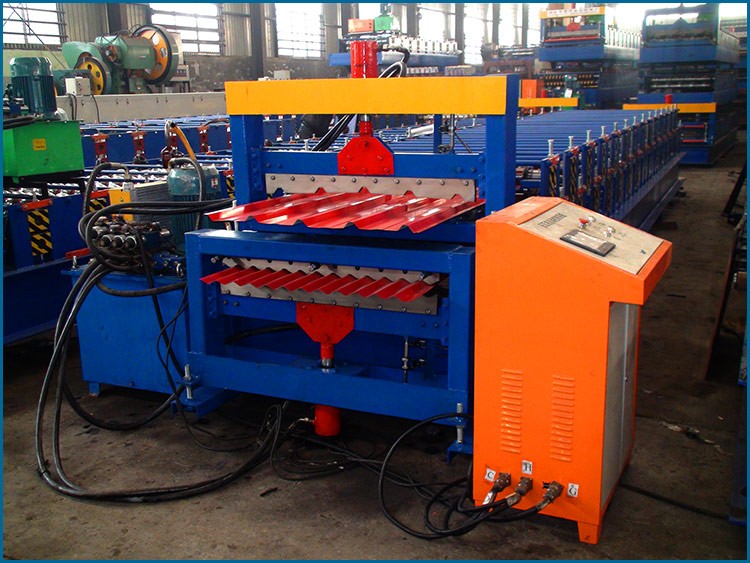

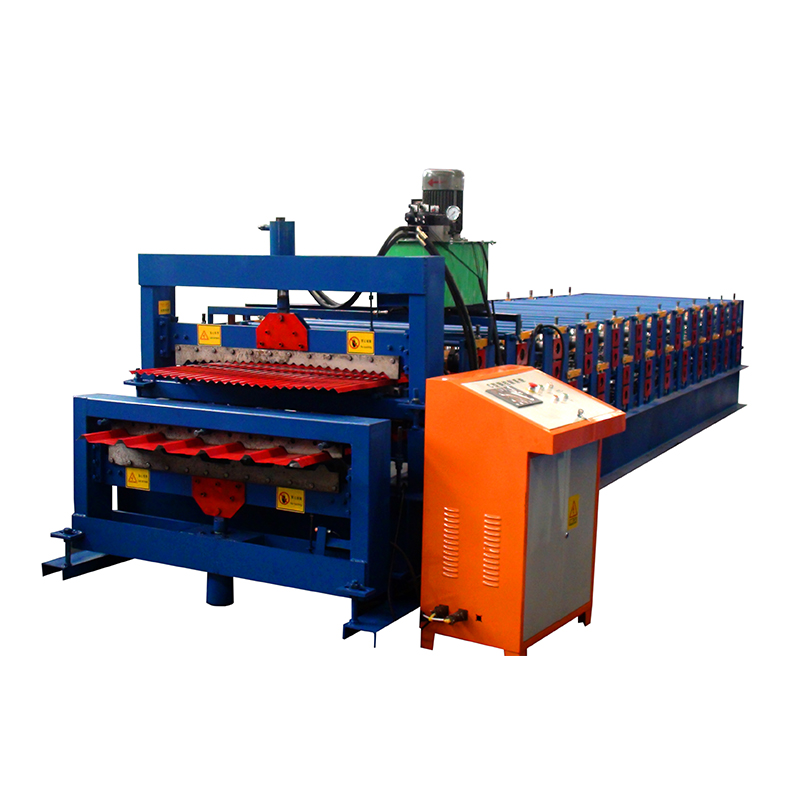

High-Efficiency Double Layer Roll Forming
This double-layer metal roofing sheet machine is engineered for high-volume production of both corrugated and IBR roofing panels. Its dual-tier design allows for the simultaneous forming of two different profiles, significantly increasing operational efficiency and saving workshop space. Built with a robust steel frame and precision-engineered rollers, it ensures consistent, weather-resistant panel quality for diverse construction needs.
Technical Performance
Production Speed
12 m/min
Max Speed
- Roller Stations
- 11-18 rows (customizable)
Material Specifications
- Compatible Materials
- Color steel plateGalvanized sheetAluminum coils
- Feeding Material Width
- 914-1250mm
- Material Thickness Range
- 0.3-0.8mm
Component Details
Cutting System
- Blade Material: Cr12Mov with quenched treatment
- Drive: Hydraulic system
- Control: PLC computer integration
- Roller Material
- High grade No.45 forged steel
- Shaft Diameter
- 80 mm
Control & Automation
Control Cabinet Features
- Programmable profile length and quantity
- Automatic and manual operation modes
- Multi-language support (English, Chinese, Spanish, Russian)
Hydraulic & Power
Hydraulic System Parameters
| Parameter | Value |
|---|---|
| Motor Power | 4kW |
| Working Pressure | 12-16Mpa (Adjustable) |
| Oil Type | 46# Hydraulic Oil |
Uncoiler Specifications
Manual Uncoiler Specs
- Loading Capacity: 5T
- Inner Diameter: 500-508mm
- Max Outer Diameter: 1250mm
- Main Motor: 5.5KW AC
Compliance & Quality
Quality Standards
CEISO 9001Alibaba Assessed Supplier
Service & Warranty
- Warranty
- 1 year
