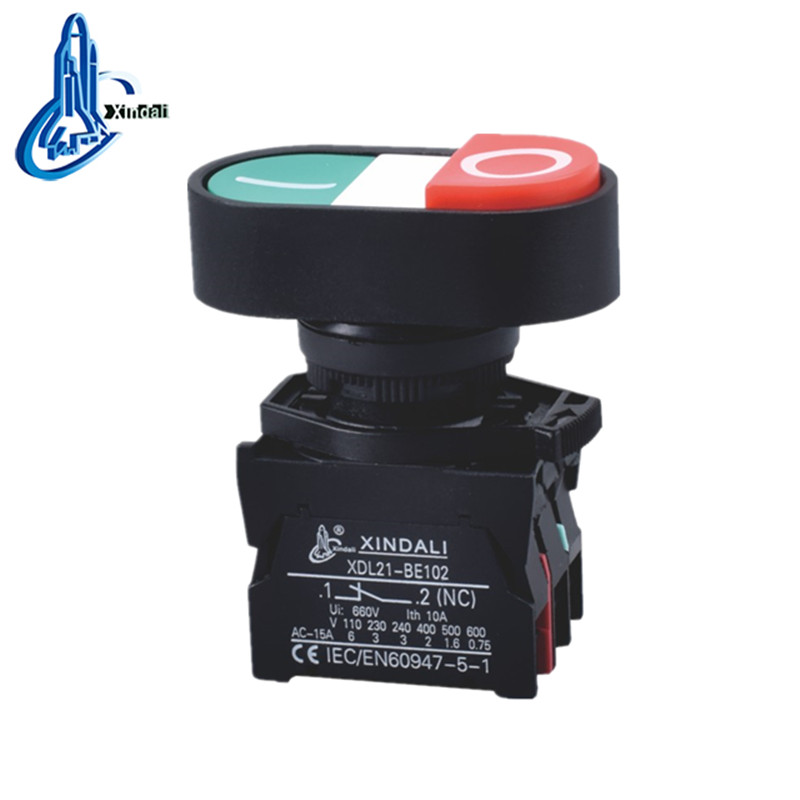

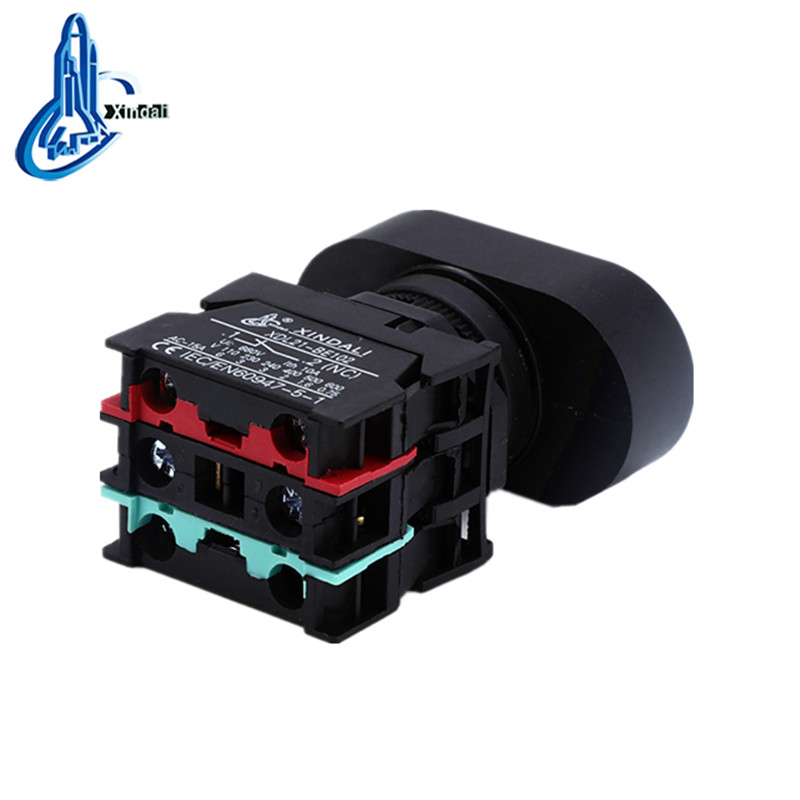

Double-Head Waterproof Push Button Switch
This double-head push button switch is waterproof and designed for electrical power applications. It features both green and red buttons, typically used for start and stop functions.
Technical Specifications
Product Overview
Professional Double-Head Control Switch
This double-head waterproof push button switch is engineered for high-performance control in industrial applications. Featuring a combination of flush green and projecting red buttons, it provides intuitive start and stop control for circuits up to 660V. Designed with a robust zinc alloy and high-grade anti-flam plastic body, it offers excellent durability and reliability for distribution cabinets and power stations.
Electrical Ratings
- Rated Insulation Voltage
- 660 V
- Conventional Heating Current
- 10 A
- Contact Resistance
- ≤25mΩ
- Insulation Resistance
- ≥50MΩ
Performance Metrics
Protection Rating
IP40
- Mechanical Life (Pushbutton)
- 1000000
- Electrical Life (Pushbutton)
- 500000
Technical Specifications
- Contact Configuration
- 1NO + 1NC
- Mounting Diameter
- 22 mm
- Certifications
- CERoHSIEC60947-5-1

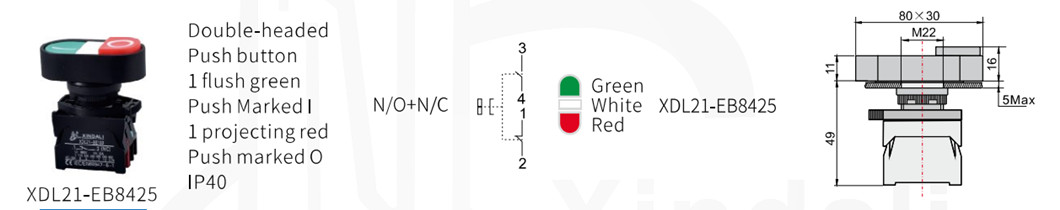

Dimensions
- Dimensions (H x W)
- 49mm x 80mm
