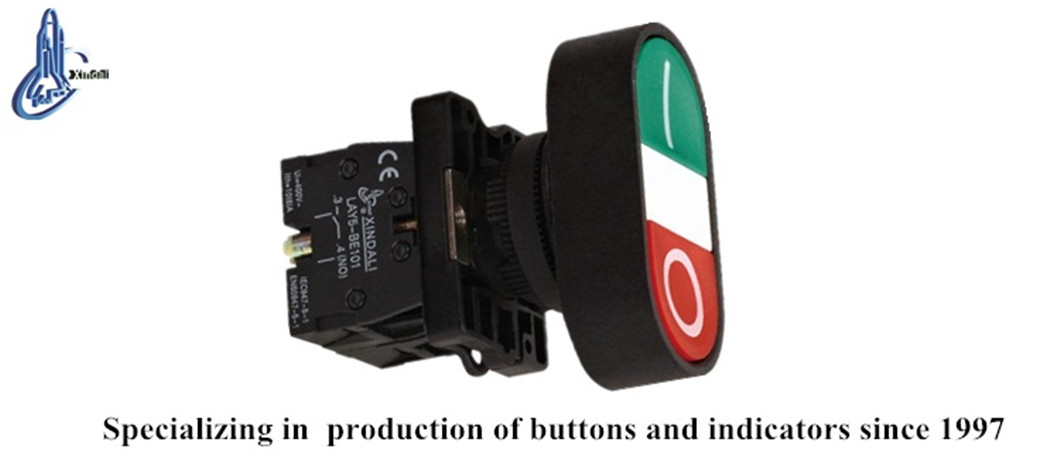

Double Head Spring Return Pushbutton Switch
This double-headed pushbutton switch features a spring return mechanism and robust plastic construction. It is designed for use in industrial control applications, providing reliable performance and clear visual feedback.
Technical Specifications
Overview
Industrial Double Head Pushbutton Switch
The double head spring return pushbutton switch is a versatile industrial control component designed for AC circuits up to 660V and DC circuits below 400V. Featuring a robust plastic housing and high-grade silver alloy contacts, this switch ensures reliable performance and high resistance to electrical erosion. It is ideal for control panels, machinery, and signaling applications requiring clear, durable interface controls.
- Certifications
- CEISO 9001ROHSULIEC60947-5-1GB/T14048.1
Technical Specifications
Mechanical Life
1,000,000 cycles
Pushbutton
500,000 cycles
Selector Switch
- Rated Insulation Voltage
- 600 V
- Conventional Heating Current
- 10 A
- Insulation Resistance
- ≥50MΩ
- Contact Resistance
- ≤25mΩ
- Power Frequency Withstand Voltage
- AC 2.5KV/min
- Voltage Wave Tolerance
- ±20%
Design & Dimensions
Dimensions & Mounting

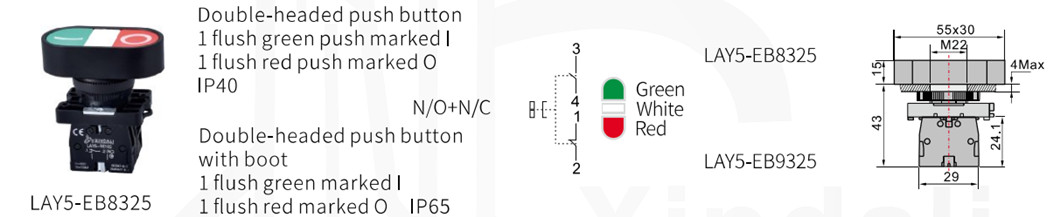

| Parameter | Value |
|---|---|
| Mounting Hole | M22 |
| Overall Dimensions | 55 x 30 mm |
| Max Panel Thickness | 4 mm |
| Total Height | 43 mm |
Ingress Protection
IP40 (Standard)IP65 (With Boot)
