Double Head Pushbutton Switch - On/Off Indicator | Merhein

Products
Double Head Pushbutton Switch with On/Off Indication

Technical Specifications

Overview

Double Head Pushbutton Switch

This double head pushbutton switch is designed for reliable on/off control in industrial environments. Featuring a clear visual interface with distinct green and red buttons, it is ideal for distribution cabinets, control panels, and machinery. Built with a zinc alloy body and high-grade anti-flam plastic, it ensures durability and safety in demanding electrical circuits.

Electrical Specifications

Rated Insulation Voltage: 600 V
Conventional Heating Current: 10 A
Insulation Resistance: ≥50MΩ
Contact Resistance: ≤25mΩ
Withstand Voltage: AC 2.5KV/min

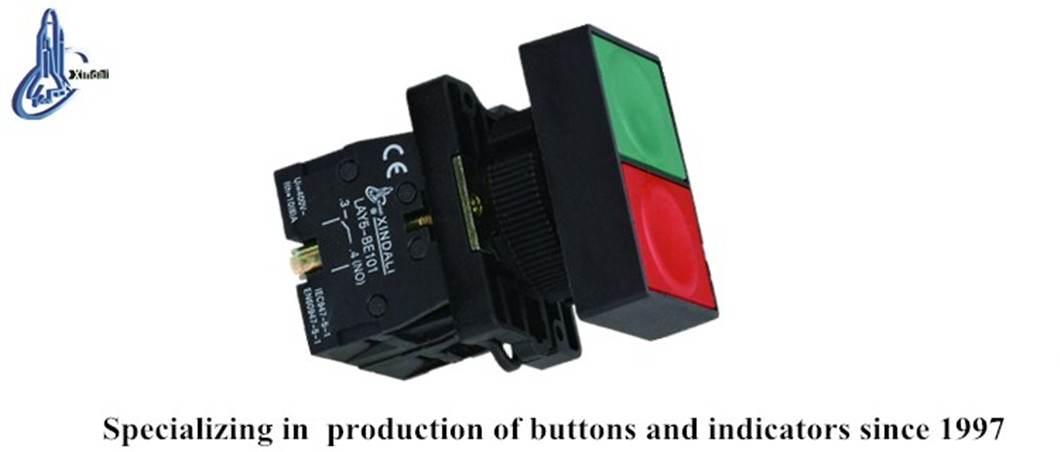

Close up of the double head pushbutton switch showing contact terminals — Detailed view of the contact block and terminal configuration.

Performance Metrics

Mechanical Life

1,000,000 ops

Pushbutton Cycles

Electrical Life

500,000 ops

Pushbutton Cycles

Indicator Brightness: 60 cd/m2
Continuous Working Life: 100000 h

Physical & Compliance

Ingress Protection

IP40

Certifications: CEISO 9001RoHSUL
Mounting Thread: M22

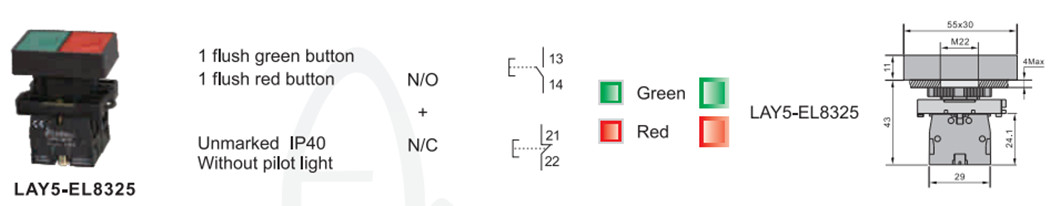

Technical diagram showing dimensions of the double head pushbutton switch — Dimensional drawing showing M22 mounting and 55x30mm faceplate.

Interested in Sourcing This Product?

Submit a request to connect with verified manufacturers who produce this product.

Your Name

Email Address

Company Name

Phone Number

Country

Target Quantity (MOQ)

Requirements

By submitting this form, you agree to our privacy policy and terms of service.

Your information is protected. Privacy policy · Terms of service

Double Head Pushbutton Switch with On/Off Indication

This double head pushbutton switch is designed for on/off control in electrical applications. It features two distinct buttons, typically green for 'on' and red for 'off', providing clear visual indication.

Request a Quote Download PDFPDF

Double Head Pushbutton Switch with On/Off Indication - Image 1

Double Head Pushbutton Switch with On/Off Indication - Image 1
