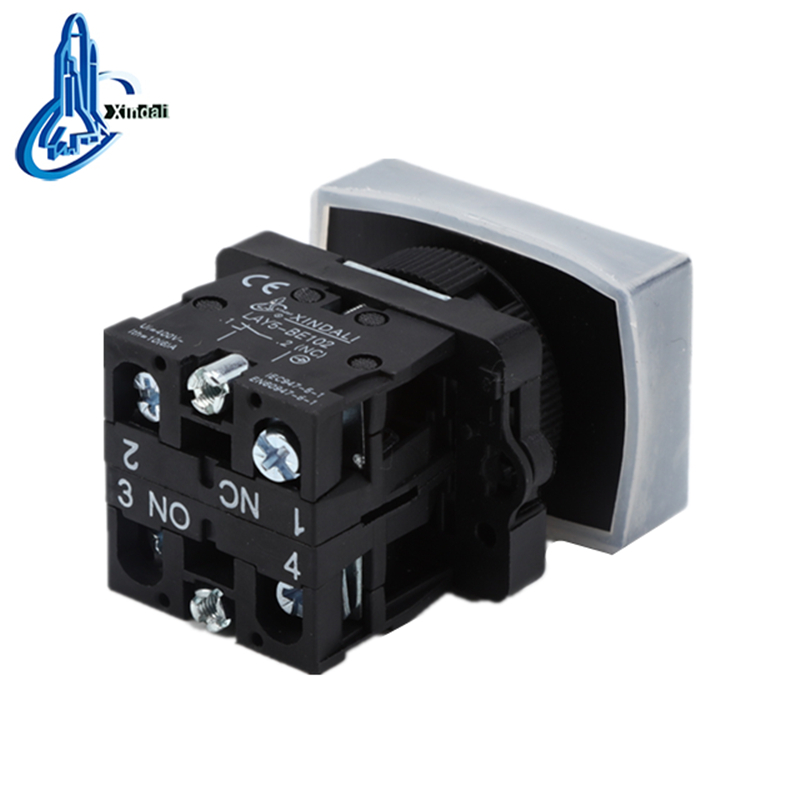

Double Head Push Button Switch with Waterproof Cover
This double-headed push button switch is designed with a waterproof cover for durability. It features both normally open (NO) and normally closed (NC) contacts, offering versatile control options.
Technical Specifications
Product Overview
Industrial Double Head Push Button Switch

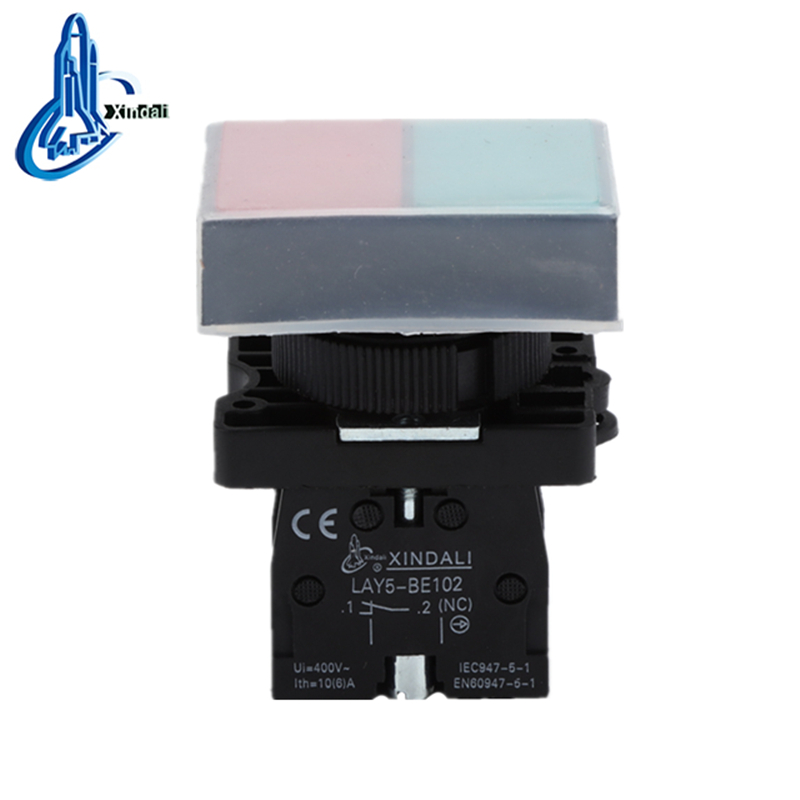

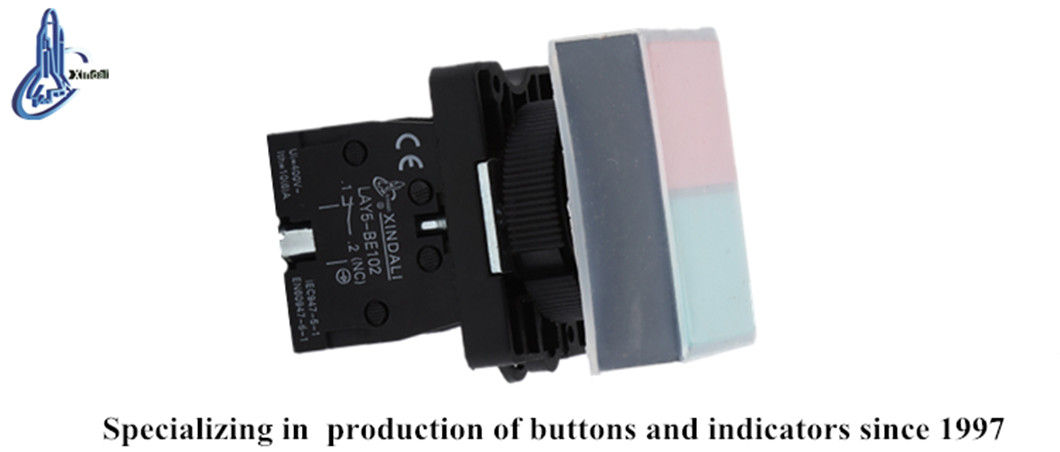

This double-head push button switch features an integrated waterproof cover, making it ideal for demanding industrial environments where protection against dust and moisture is critical. Designed for versatile control, it includes both normally open (NO) and normally closed (NC) contacts. The unit is constructed with high-grade anti-flam plastic and zinc alloy for durability, ensuring reliable performance in control circuits for distribution boxes, cabinets, and machinery.
- Certifications
- CEISO 9001ROHSUL
Technical Specifications
Electrical Ratings
600 V
Rated Insulation Voltage
10 A
Conventional Heating Current
2.5 KV/min
Withstand Voltage
Performance Metrics
| Parameter | Value |
|---|---|
| Insulation Resistance | ≥50MΩ |
| Contact Resistance | ≤25mΩ |
| Voltage Wave Tolerance | ±20% |
| Signal Lamp Brightness | 60cd/m² |
Operational Life
- Mechanical Life (Pushbutton): 1,000,000 cycles
- Mechanical Life (Selector): 500,000 cycles
- Electrical Life (Pushbutton): 5,000,000 cycles
- Electrical Life (Selector): 250,000 cycles
- Signal Lamp Life: 100,000 hours

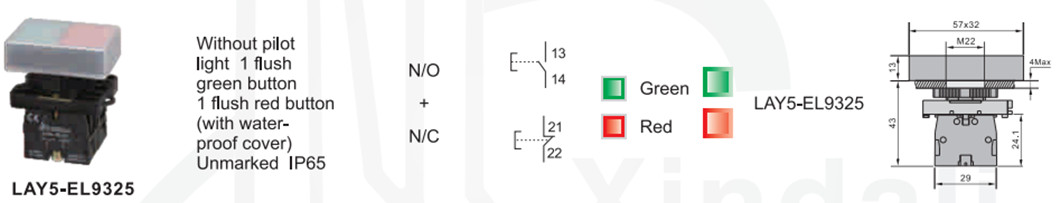

Design & Construction
Physical Characteristics
- Mounting Thread: M22
- Head Dimensions: 57x32mm
- Overall Height: 43mm
- Protection Rating: IP65
- Contact Configuration: 1NO + 1NC
Material Composition
Zinc AlloyAnti-flam PlasticSilver Alloy Contacts
