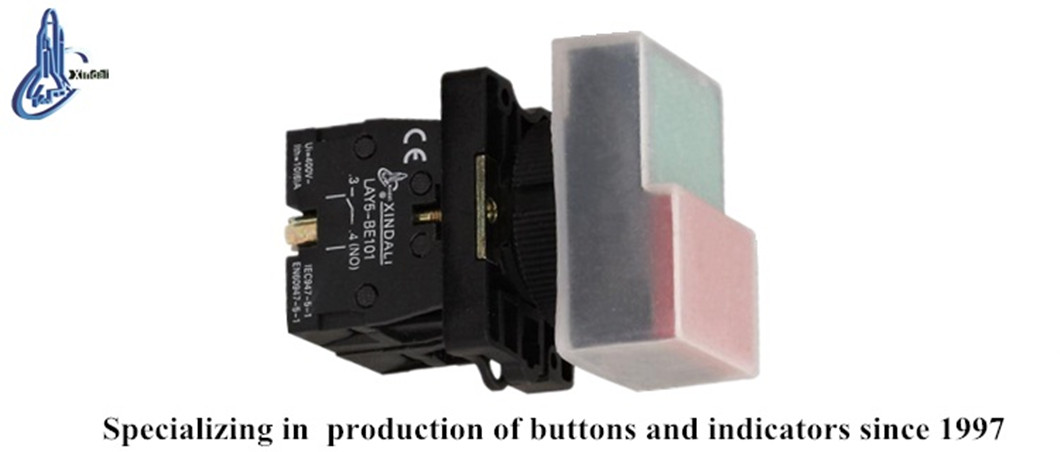

Double Head Push Button Switch with Waterproof Cap
This double-headed push button switch is designed for on/off control. It features a waterproof cap and includes both normally open (NO) and normally closed (NC) contacts.
Technical Specifications
Product Overview
Double Head Push Button Switch
This double-headed push button switch is engineered for reliable on/off control in industrial environments. Featuring a robust waterproof cap and durable zinc alloy construction with anti-flame plastic, it is designed to withstand harsh conditions while providing versatile control through integrated normally open (NO) and normally closed (NC) contacts. It is an ideal solution for control panels, distribution cabinets, and power stations requiring high-performance switching.
Technical Specifications
Mechanical Life
1,000,000 cycles
Pushbutton
500,000 cycles
Selector Switch
Electrical Life
5,000,000 cycles
Pushbutton
250,000 cycles
Selector Switch
- Rated Insulation Voltage
- AC 600V (50Hz/60Hz)
- Conventional Heating Current
- 10 A
- Insulation Resistance
- ≥50MΩ
- Contact Resistance
- ≤25mΩ
Design & Construction
Ingress Protection
IP65
Material Composition
- Zinc Alloy Main Body
- High-grade Anti-flame Plastic
- Silver Alloy Contacts

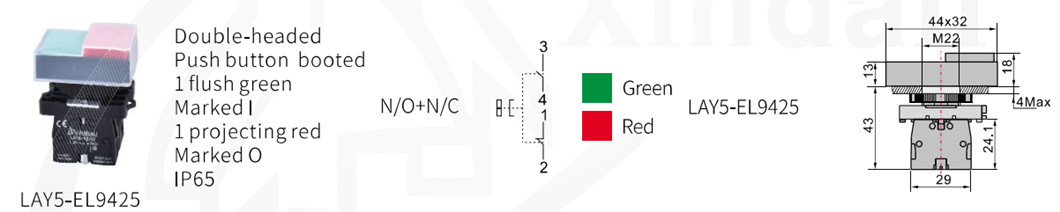

- Contact Configuration
- NONC
Certifications & Compliance
- Standards & Certifications
- CEISO 9001RoHSULIEC 60947-5-1GB/T 14048.1
Applications
Suitable Environments
- Distribution Boxes
- Distribution Cabinets
- Control Cabinets
- Power Stations
- Communication Networks
