Double Head Push Button Switch with Lamp
This double-headed push button switch features an integrated lamp. It is designed for versatile control applications with a pull on/off mechanism and is rated for AC/DC 24V operation.
Technical Specifications
Product Overview
Professional Double Head Push Button Switch

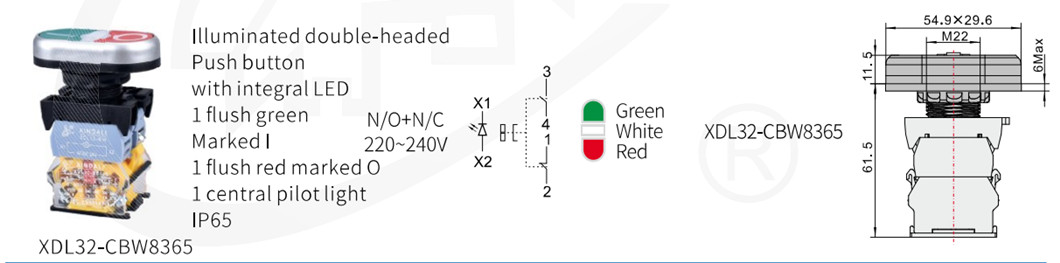

This double-head push button switch with integrated lamp is designed for precise circuit control and signal indication in demanding industrial environments. It features one flush green button marked 'I' and one flush red button marked 'O', paired with a central pilot light for clear status visibility. Engineered with high-grade anti-flame materials and silver alloy contacts, it ensures long-term operational reliability and superior electrical erosion resistance.
Technical Specifications
- Insulation Voltage (Ui)
- 600 V
- Thermal Current (Ith)
- 10 A
- Pollution Grade
- 3
- Rated Withstanding Impulse Voltage (Uimp)
- 6 kV
Environment
- Operating Temperature
- -5°C to +55°C
- Storage Temperature
- -25°C to +70°C
- Relative Humidity
- 35% - 85% RH
Compliance & Protection
Protection Grade
IP65IP66IP67IP68
- Certified Standards
- IEC60947-5-1GB/T14048.1GB14048.5CEULRoHS
Mechanical Performance
Mechanical Life
3,000,000 cycles
Button Operations
300,000 cycles
Emergency Stop Operations
- Mounting Type
- M22
- Max Fastening Torque
- 1.2 Nm
