Product Overview

Industrial Double Head Push Button Switch

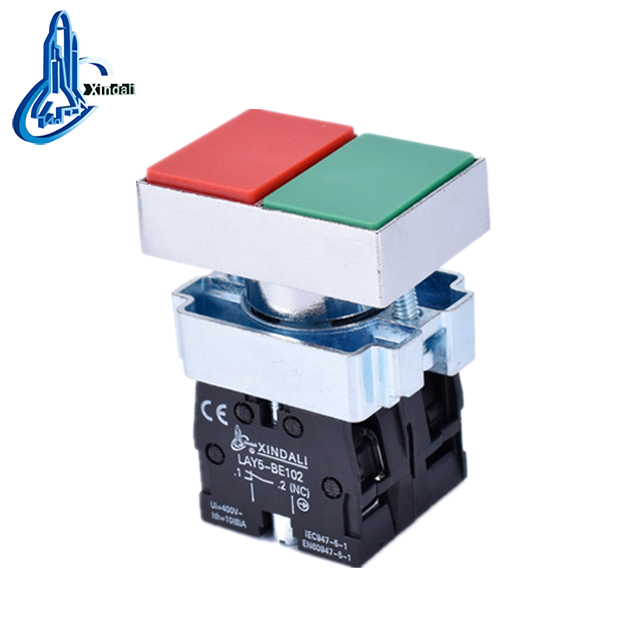

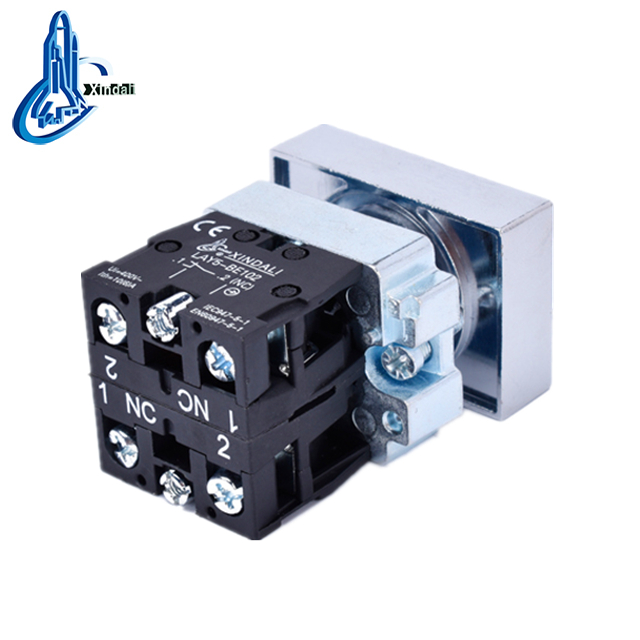

The LAY5-BL8325 is a robust double-headed push button switch designed for reliable on/off control in industrial applications. Featuring distinct red and green actuators, it provides clear visual status indication for operators. Built with a durable metal housing, this switch is engineered to withstand demanding environments while ensuring precise mechanical performance in control panels and machinery.

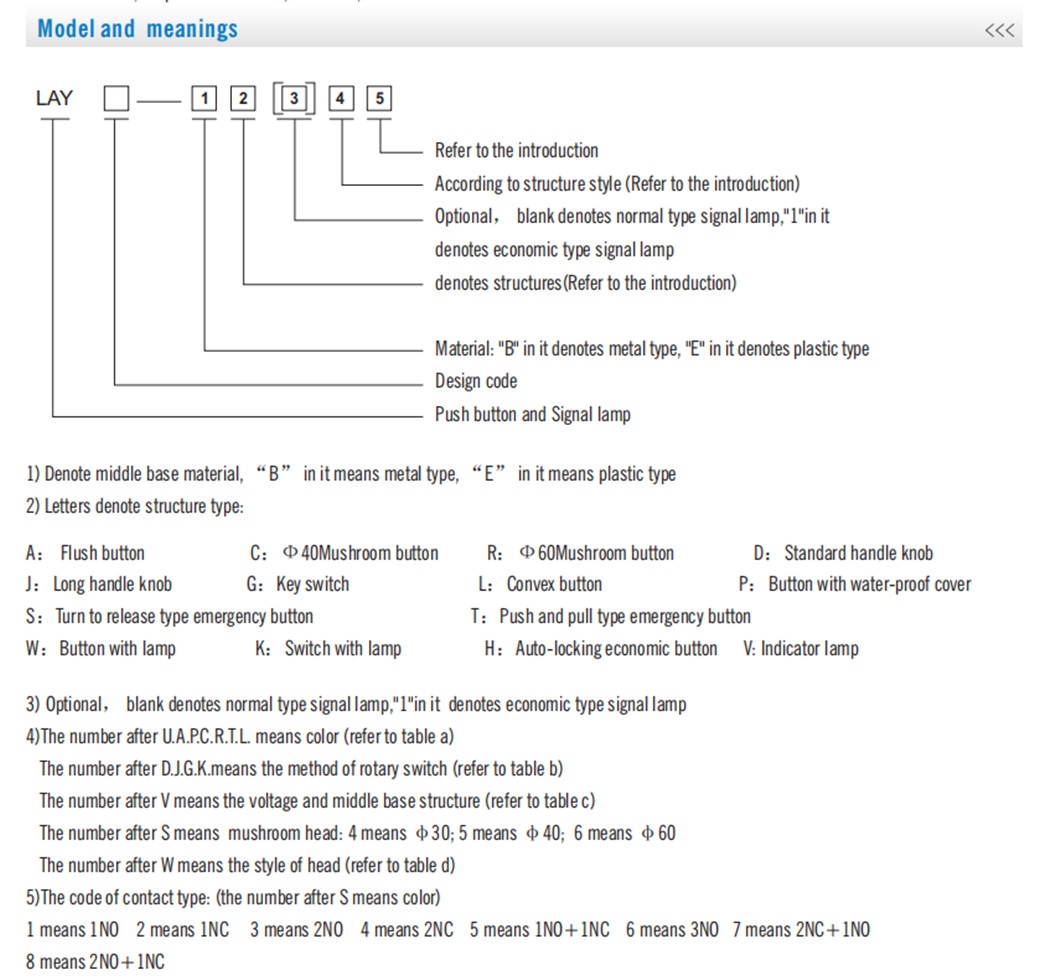

Modular design chart for push button series — Modular configuration guide for the switch series.

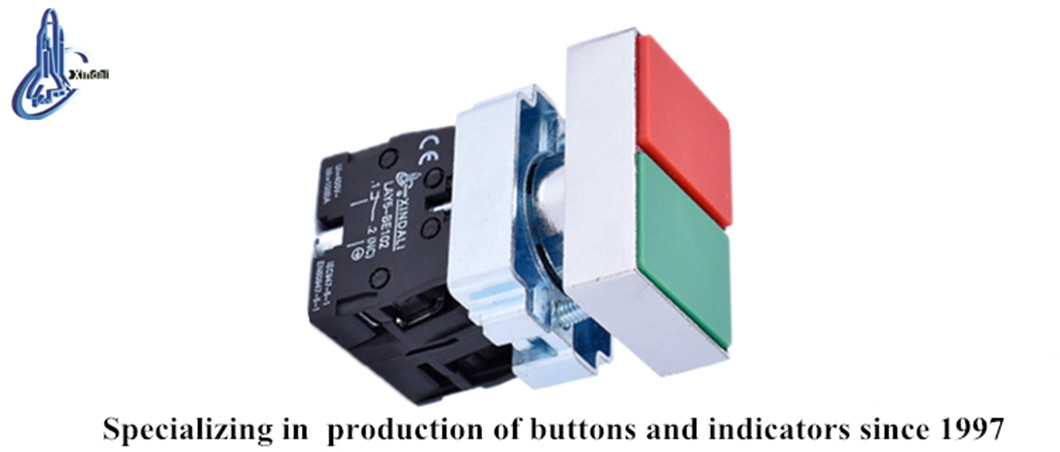

Close up of the double head push button switch — The LAY5-BL8325 double-headed actuator provides clear on/off visual feedback.

Technical Specifications

Electrical Ratings

660 V

Max AC Voltage

400 V

Max DC Voltage

10 A

Heating Current

Insulation Performance

Parameter	Value
Insulation Resistance	≥50MΩ
Contact Resistance	≤25mΩ
Withstand Voltage	AC 2.5KV/min

Mechanical & Electrical Life

Mechanical Life: 1,000,000 cycles
Electrical Life: 500,000 cycles

Design & Installation

Physical Dimensions

Button Head: 55 x 30 mm
Mounting Size: M22
Total Height: 46 mm
Base Width: 29 mm

Materials & Protection: Metal HousingIP40 ProtectionAnti-flam Plastic ComponentsSilver Alloy Contacts

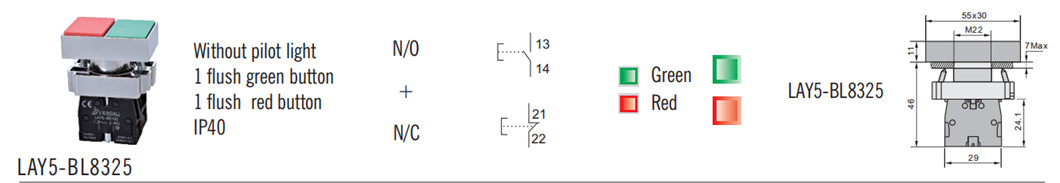

Technical diagram showing dimensions and contact configuration of the double head push button — Dimensional drawing and contact terminal layout for the LAY5-BL8325.

Compliance

Standards & Certifications

CEISO 9001RoHSULIEC 60947-5-1GB/T 14048.1
