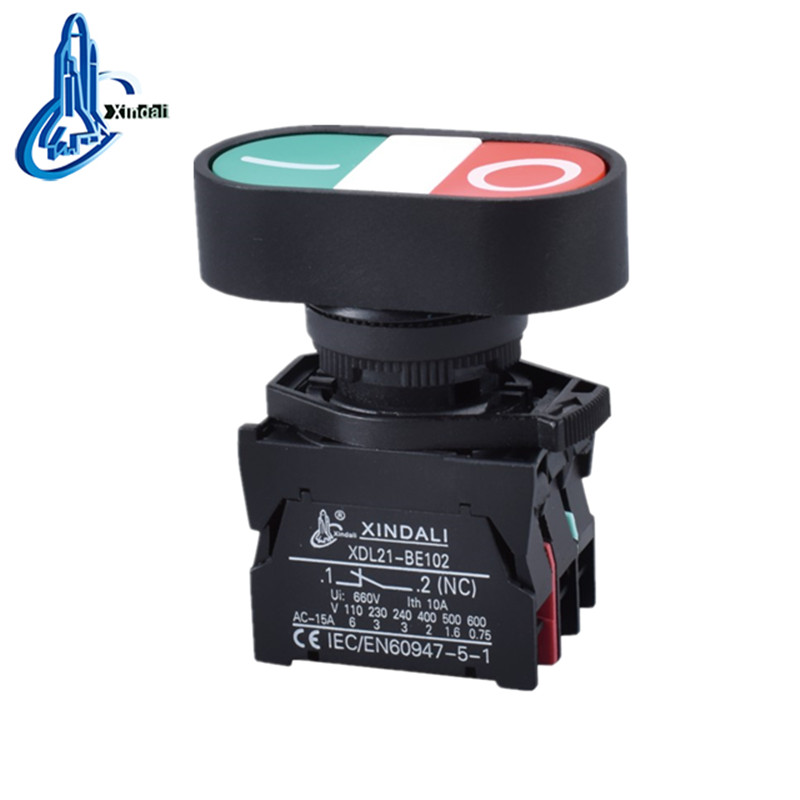

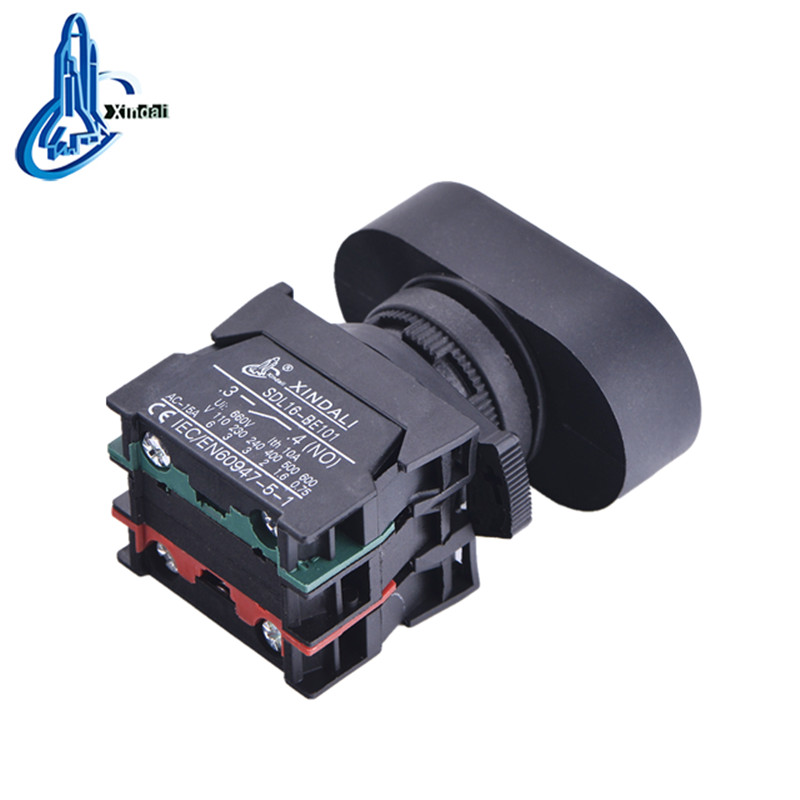

Double Head Push Button Switch 220V
This double-head pushbutton switch controls on-off functionality in electrical power applications. It features a 220V rating and double pole configuration.
Technical Specifications
Product Overview
Professional Industrial Push Button

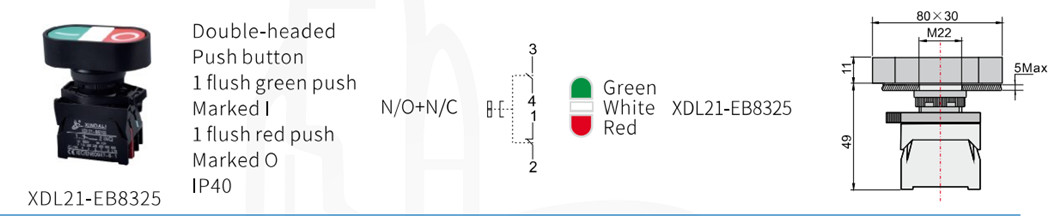

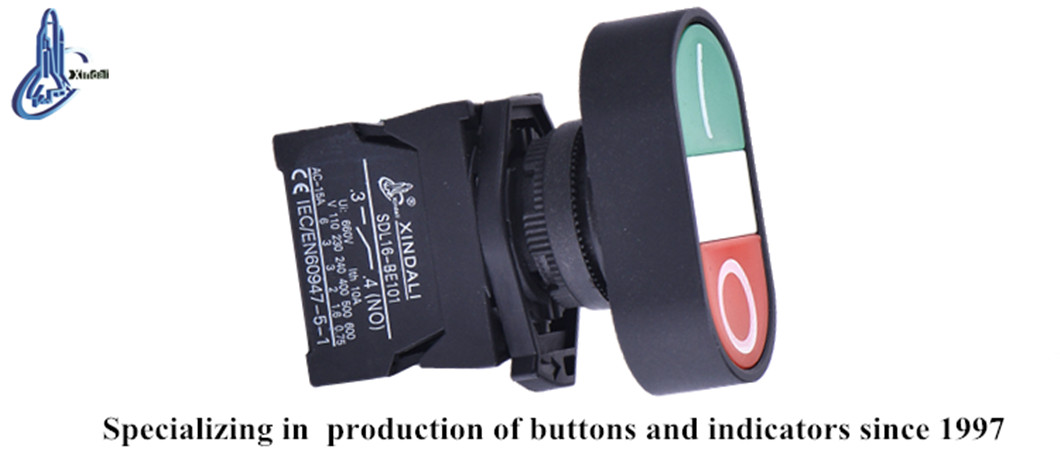

This double-head push button switch provides reliable on-off control for industrial circuits up to 660V. Engineered for durability, it features high-grade anti-flame plastic and metal construction with silver alloy contacts for superior electrical resistance. Its dual-button configuration includes flush green and red markers, making it an ideal choice for control panels, machinery, and power distribution systems.
Technical Specifications
- Rated Insulation Voltage (Ui)
- 660 V
- Conventional Heating Current (Ith)
- 10 A
- Insulation Resistance
- ≥50MΩ
- Contact Resistance
- ≤25mΩ
- Power Frequency Withstand Voltage
- AC 2.5KV/min
Mechanical Characteristics
Mechanical Life
1,000,000 cycles
Pushbutton
500,000 cycles
Selector Switch
Ingress Protection
IP40
- Mounting Dimensions
- M22
Certifications
- Compliance Standards
- CEISO 9001RoHSULIEC60947-5-1GB/T14048.1
