Double Head Push Button Switch
This double head push button switch is designed for on/off control in electrical power applications. It features a robust construction suitable for industrial environments and a clear, intuitive interface.
Technical Specifications
Product Overview
Industrial Double Head Pushbutton

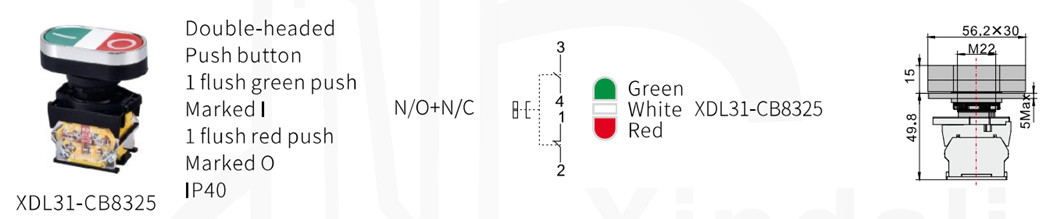

This double head pushbutton switch is designed for reliable on/off control in demanding industrial circuits. Featuring a robust construction with zinc alloy and high-grade anti-flam plastic, it offers excellent durability and operational safety. The unit includes one flush green button marked 'I' and one flush red button marked 'O', providing an intuitive interface for signal and interlocking applications.
Technical Specifications
- Rated Insulation Voltage
- 600 V
- Rated Thermal Current
- 10 A
- Rated Withstanding Impulse Voltage
- 6 kV
- Pollution Grade
- 3
Operational Environment
- Operating Temperature Range
- -5°C to +55°C
- Storage Temperature Range
- -25°C to +70°C
- Relative Humidity
- 35% - 85% RH
Mechanical Performance
Mechanical Durability
3,000,000 operations
Standard Pushbutton
300,000 operations
Emergency Button
- Fastening Torque
- 0.8Nm (Max: 1.2Nm)
Compliance and Standards
- Certification & Standards
- CEISO 9001RoHSULIEC60947-5-1GB/T14048.1
Physical Dimensions
Dimensions and Mounting
| Parameter | Specification |
|---|---|
| Mounting Size | M22 |
| Front Dimensions | 56.2 x 30 mm |
| Protection Grade | IP40 / IP65 |
