Double Head Light Indicator Push Button Switch
This industrial push button switch features a double head with integrated light indicators. It is used for controlling signals and interlocking purposes.
Technical Specifications
Product Overview

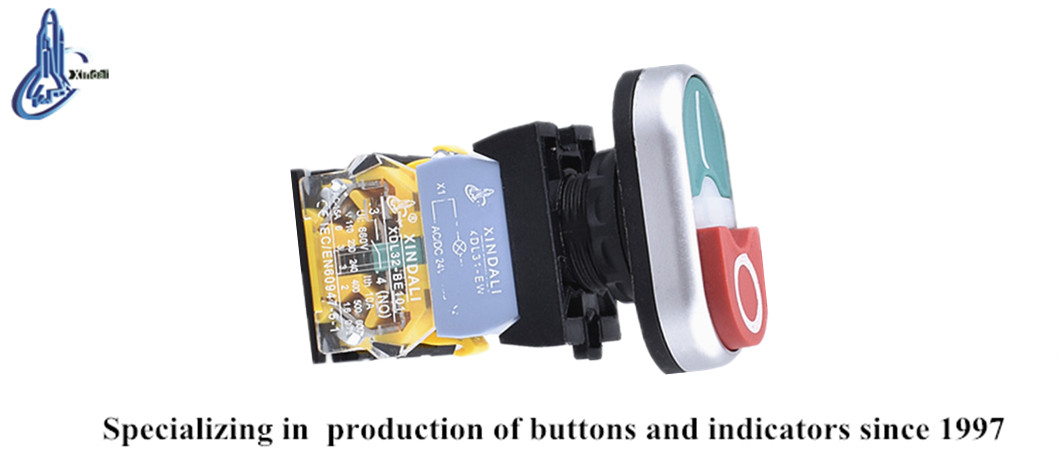

Industrial Double Head Push Button

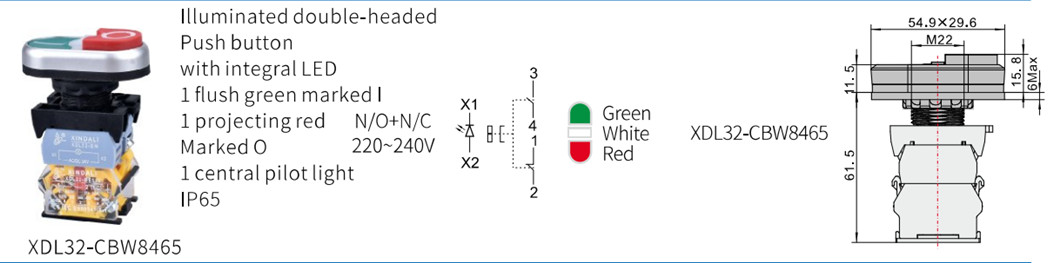

This double-head light indicator push button switch is designed for high-performance industrial control circuit applications. Featuring an integrated LED for status signaling, it includes one flush green button marked 'I' and one projecting red button marked 'O'. Engineered with high-grade anti-flam plastic and zinc alloy, it ensures long-term durability and reliable performance in demanding environments.
Technical Specifications
Protection Grade
IP65IP66IP67IP68
Mechanical Durability
3,000,000 cycles
Standard Button
300,000 cycles
Emergency Button
- Certifications
- CEISO 9001RoHSULIEC60947-5-1GB/T14048.1
- Rated Insulation Voltage
- 600 V
- Operating Temperature Range
- -5°C to +55°C
- Contact Configuration
- N/O + N/C
Dimensions and Mounting
- Mounting Diameter
- 22 mm
- Physical Dimensions
- 54.9 x 29.6 mm
