Double Head LED Push Button Switch
This double-headed push button switch is designed for industrial applications needing reliable, waterproof operation. It features a red 'O' button for 'off' and a green '-' button for 'on', with an amber LED indicator.
Technical Specifications
Product Overview
Industrial Double-Head Control Switch

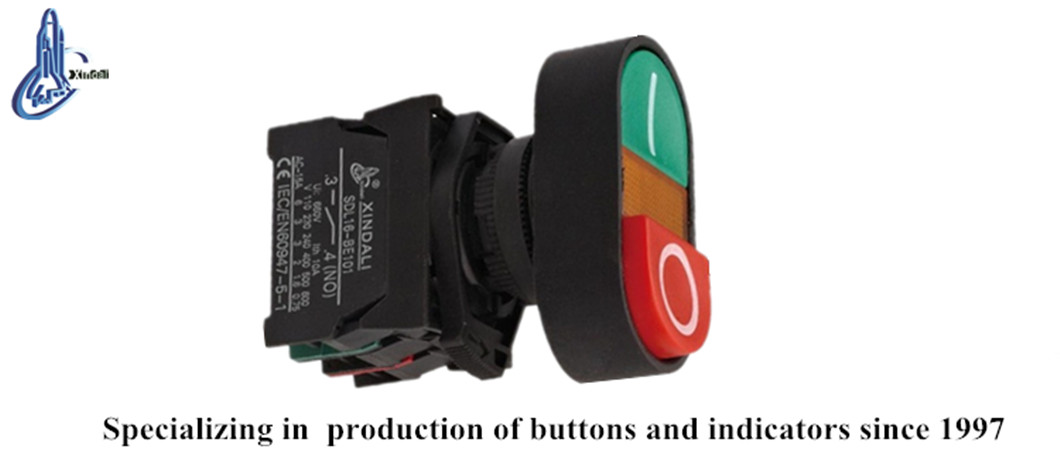

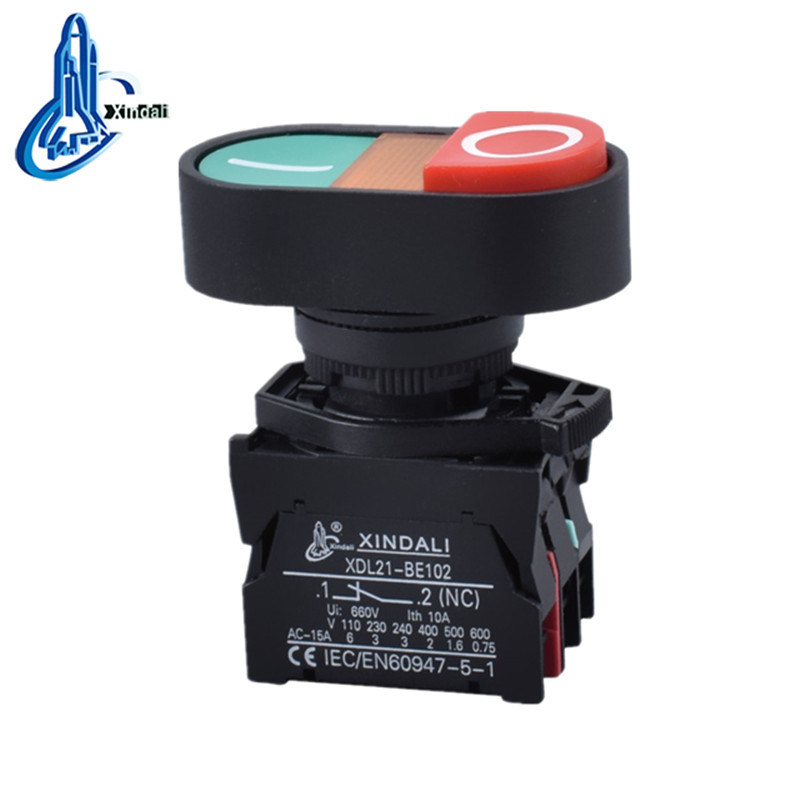

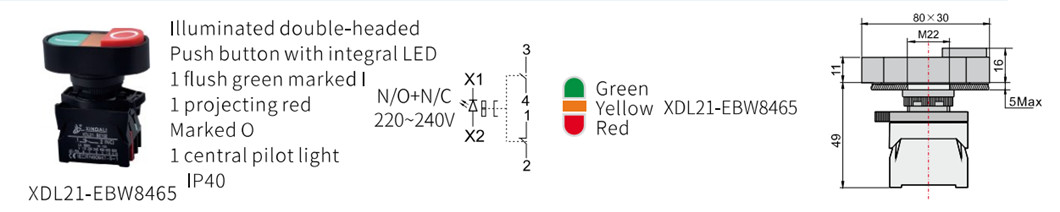

This double-head illuminated push button switch is designed for reliable industrial circuit control. It features a flush green button marked 'I' for start and a projecting red button marked 'O' for stop, separated by an integrated LED pilot light for status indication. Built for durability in harsh environments, it utilizes high-grade anti-flame plastics and zinc alloy components for long-lasting operation.
Technical Specifications
- Rated Insulation Voltage
- 600 V
- Conventional Heating Current
- 10 A
- Insulation Resistance
- ≥50 MΩ
- Contact Resistance
- ≤25 mΩ
- Withstand Voltage
- AC 2.5KV/min
Mechanical Performance
Mechanical Life
1,000,000 Cycles
Pushbutton
500,000 Cycles
Selector Switch
Electrical Life
5,000,000 Cycles
Pushbutton
250,000 Cycles
Selector Switch
Certifications & Standards
- Compliance & Certifications
- CEISO 9001RoHSULIEC 60947-5-1
Physical Characteristics
Protection Rating
IP40
- Contact Configuration

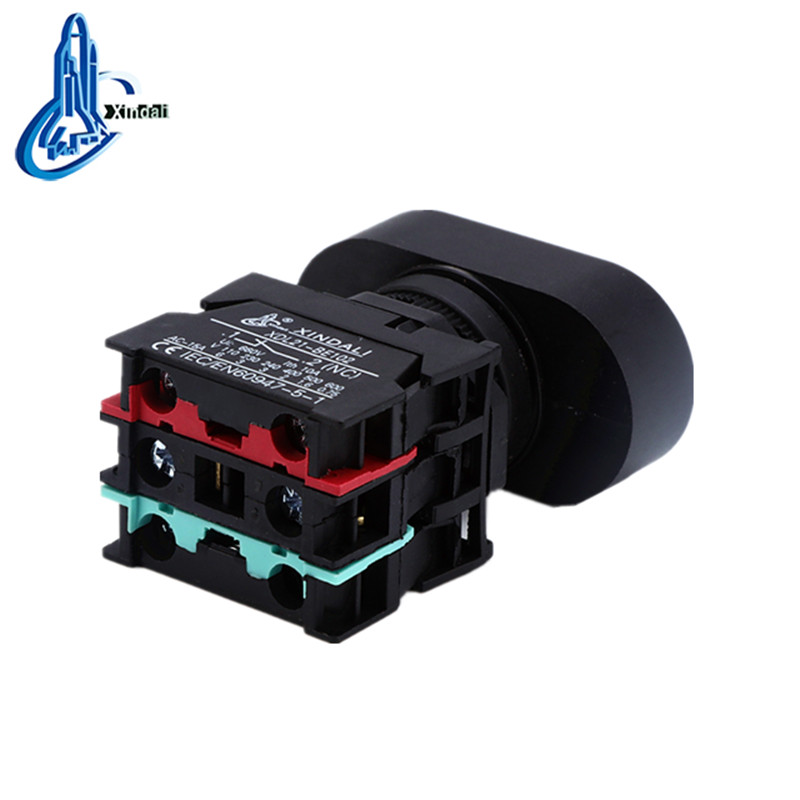

- 1 Normally Open + 1 Normally Closed
- Mounting Hole Size
- 22mm
