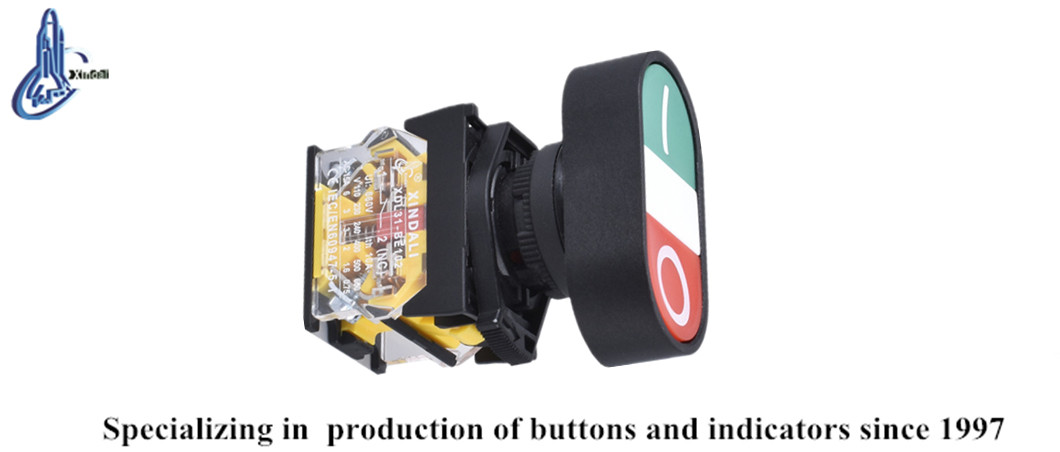

Double Head Electric Lock Push Button Switch
This double head electric lock push button switch is designed for on/off control in circuits up to 660V AC. It features a robust construction with high-grade anti-flam plastic and zinc alloy.
Technical Specifications
Overview
Industrial Double Head Push Button
The XDL31-EB8325 is a 22mm double-head electric push button switch engineered for precise on/off control in industrial electrical circuits. Featuring a durable design with zinc alloy and high-grade anti-flam plastic, it ensures longevity and reliability even in demanding environments. This switch is fully compliant with international standards, including IEC and CE certifications, making it a safe choice for critical signaling, interlocking, and control applications.
Electrical Ratings
Key Electrical Metrics
660 V
Max AC Voltage
400 V
Max DC Voltage
10 A
Rated Thermal Current
6 kV
Impulse Voltage
Technical Specifications
Operating Environment
| Parameter | Range |
|---|---|
| Operating Temperature | -5°C to +55°C |
| Storage Temperature | -25°C to +70°C |
| Relative Humidity | 35-85% RH |
Mechanical Life
- Standard push button: 3,000,000 operations
- Emergency button: 300,000 operations
Protection Grade
IP40IP65IP66IP67IP68

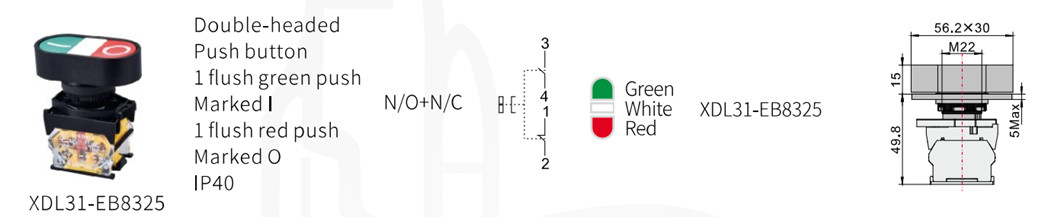

Mounting & Physical
- Mounting Hole Diameter: 22mm
- Fastening Torque: 0.8Nm (Max: 1.2Nm)
- Pollution Grade: 3
- Installation Category: Class III
- Compliance & Certifications
- CEISO 9001RoHSULIEC60947-5-1GB/T14048
