Technical Specifications
Product Overview

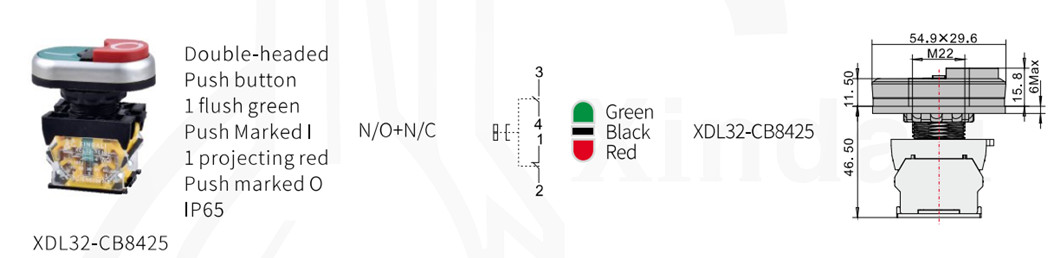

Professional Double Head Control Switch
This double head control push button switch is engineered for reliable on/off circuit control in demanding industrial environments. It features a robust design with high-grade anti-flame materials and silver alloy contacts for excellent anti-electrical erosion properties. Compliant with international IEC standards, it ensures safe and efficient signal indication and interlocking operations for systems up to 660V.
Electrical Ratings
- Rated Insulation Voltage
- 600 V
- Rated Thermal Current (Ith)
- 10 A
- Short-Circuit Protection
- 10A fuse (IEC269-1/GB14048.3 compliant)
Operating Environment
- Operating Temperature
- -5°C to +55°C
- Storage Temperature
- -25°C to +70°C
- Relative Humidity
- 35% - 85% RH
Mechanical Specifications
- Mechanical Life (Standard Button)
- 3000000 cycles
- Mechanical Life (Emergency Button)
- 300000 cycles
- Fastening Torque
- 0.8Nm (Max: 1.2Nm)
Compliance and Standards
Compliance Standards
- IEC60947-5-1
- GB/T14048.1
- GB14048.5
Protection Grade
IP40IP54IP65IP66IP67IP68
- Certifications
- CEISO9001RoHSUL
