Double Color Push Button Switch
This plastic push button switch features a double color button. It is designed for on/off control in various electrical applications.
Technical Specifications
Product Overview
Industrial Double Color Push Button Switch

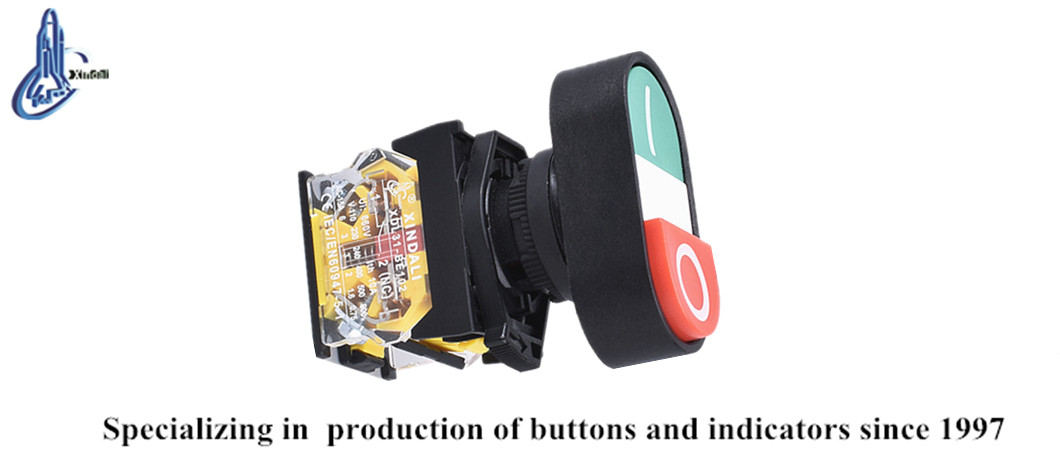

The XDL31-EB8425 is a professional-grade double color push button switch designed for reliable AC and DC circuit control. Constructed with a high-grade anti-flam plastic body and a durable zinc alloy core, it ensures long-term operational stability. Featuring a distinct green 'I' (on) and red 'O' (off) configuration, this switch provides clear visual status identification for demanding industrial environments.
Electrical Specifications
Key Electrical Metrics
660 V
Max AC Voltage
400 V
Max DC Voltage
10 A
Rated Thermal Current
- Contact Configuration
- Normally Open (NO)Normally Closed (NC)Slow breaking operation
Environmental Performance
Environmental Durability
| Parameter | Range/Rating |
|---|---|
| Operating Temp | -5°C to +55°C |
| Storage Temp | -25°C to +70°C |
| Humidity | 35-85% RH |
| Pollution Grade | 3 |

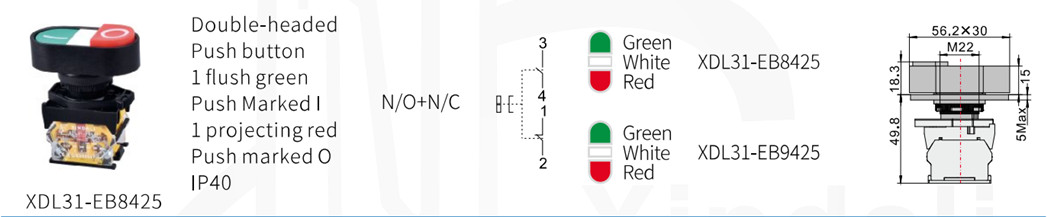

Mechanical Specs
Expected Operational Life
- Standard Button: 3,000,000 operations
- Emergency Stop Button: 300,000 operations
Certification & Standards
Industry Certifications
CEISO 9001RoHSULIEC60947-5-1GB/T14048.1
