Double Action Tact Switch with Double Push Button
This double action tact switch features a double push button design. It is suitable for applications requiring reliable and precise actuation.
Technical Specifications
Product Overview

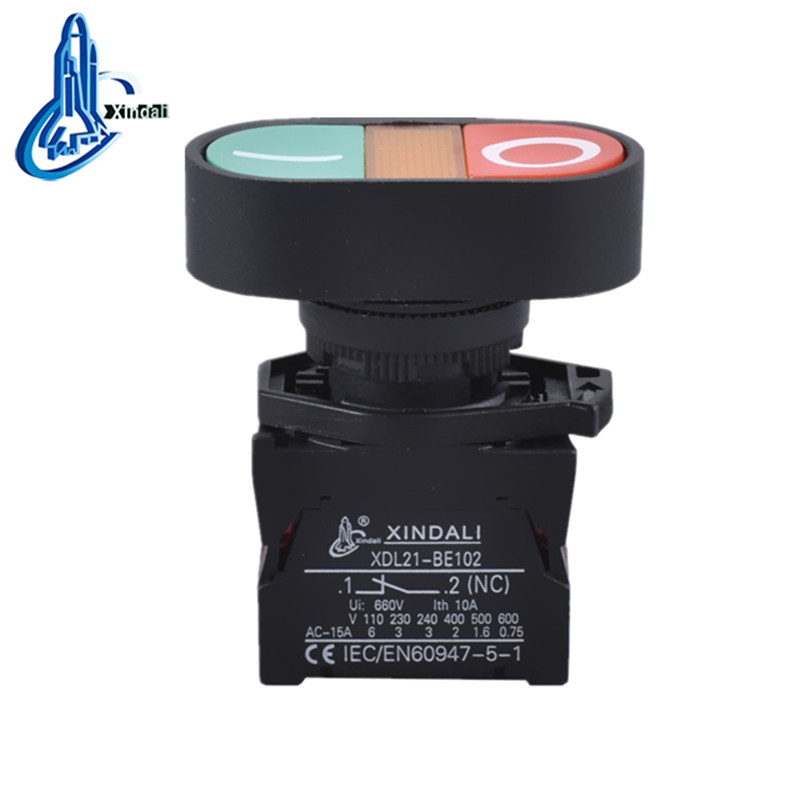

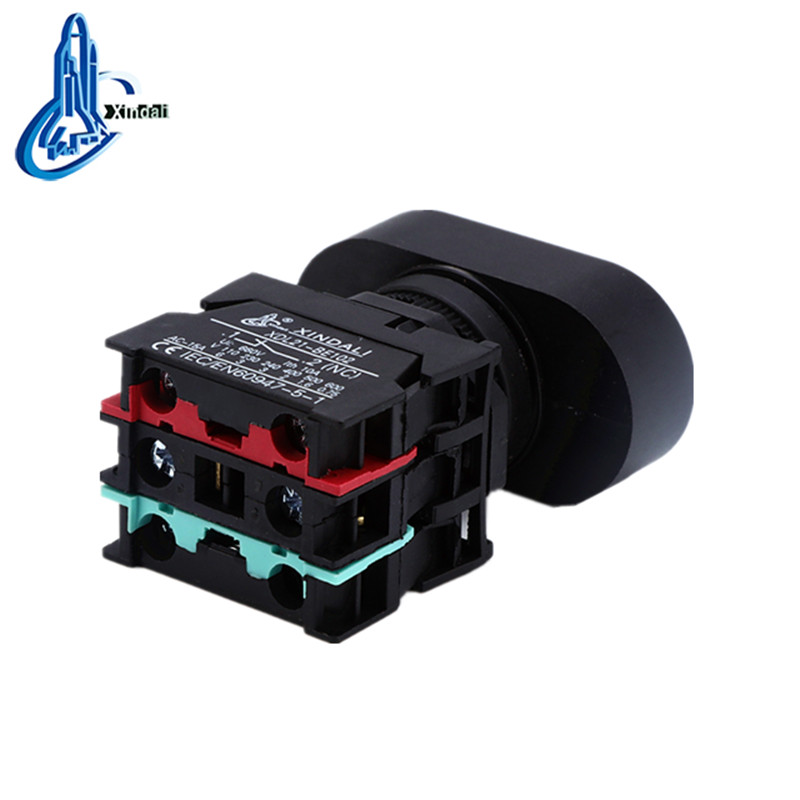

Industrial Double-Action Tact Switch
This double-action tact switch combines a dual push-button interface with an integrated central pilot light, designed for precise control in demanding industrial environments. Constructed with high-grade anti-flame plastic and professional-grade silver alloy contacts, it offers high resistance to electrical erosion and long-term reliability. The unit is ideal for control circuits in distribution cabinets, power stations, and communication networks.

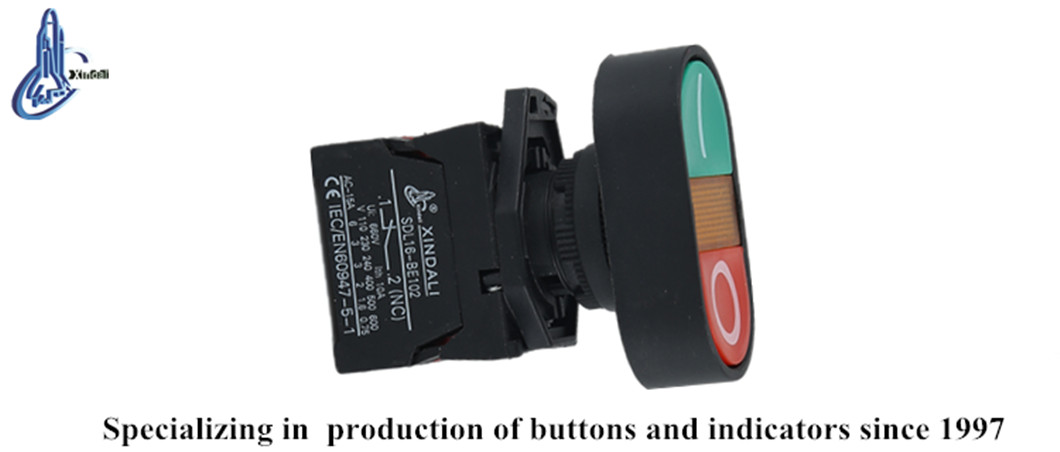

Electrical Specifications
- Rated Insulation Voltage
- AC 600V (50/60Hz)
- Conventional Heating Current
- 10 A
- Insulation Resistance
- ≥50 MΩ
- Contact Resistance
- ≤25 mΩ
- Withstand Voltage
- AC 2.5 kV/min
Technical Performance
Mechanical Life
1,000,000 cycles
Pushbutton
500,000 cycles
Selector Switch
Electrical Life
5,000,000 cycles
Pushbutton
250,000 cycles
Selector Switch
Physical and Environmental
Ingress Protection
IP40
- Mounting Type
- M22

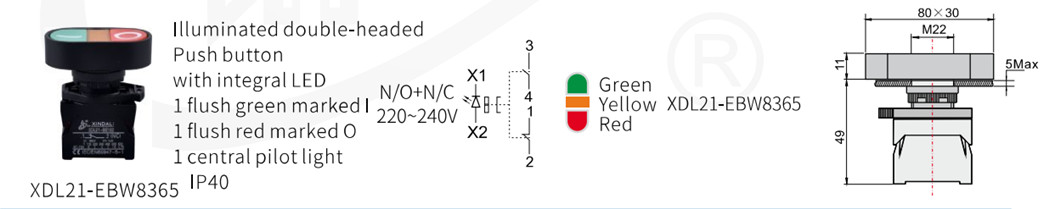

- Dimensions
- 80mm x 30mm
Certifications
- Standards and Compliance
- CEIEC 60947-5-1GB/T 14048.1ISO 9001RoHS
