Double Action Pushbutton Switch
This double action pushbutton switch features a dual push button design for enhanced control. It is suitable for use in control panels, machinery, and other industrial equipment.
Technical Specifications
Overview
Double Action Pushbutton Switch

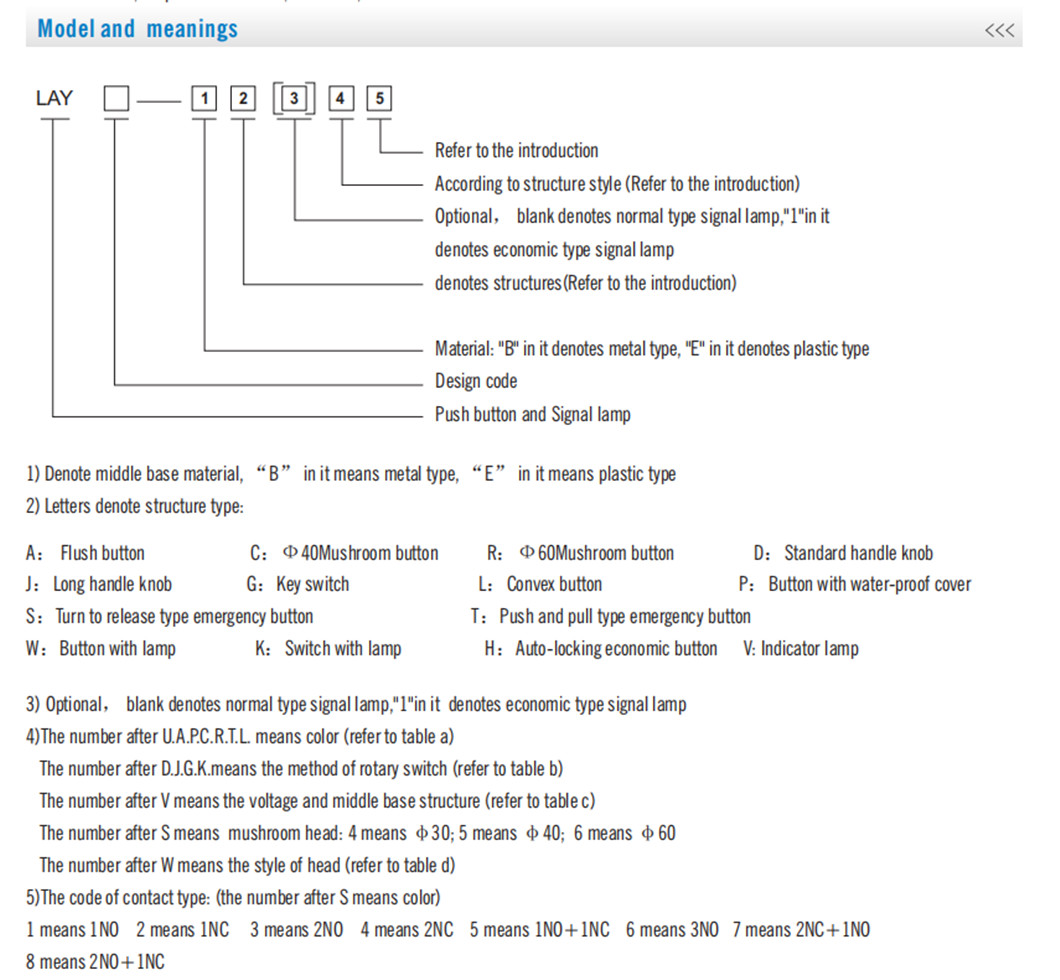

The LAY4-BL8325 is a high-performance double action pushbutton switch designed for industrial control circuits. Engineered with a durable zinc alloy and high-grade anti-flam plastic body, it features silver alloy contacts to ensure superior resistance to electrical erosion. This versatile switch is suitable for controlling signals and interlocking purposes in circuits up to 660V AC or 400V DC.
- Certifications & Standards
- CEISO 9001RoHSULIEC 60947-5-1GB/T 14048.1
Electrical Specifications
- Rated Insulation Voltage
- 600 V
- Conventional Heating Current
- 10 A
- Insulation Resistance
- ≥50MΩ
- Contact Resistance
- ≤25mΩ
Performance Metrics
Mechanical Life
1,000,000 cycles
Pushbutton
500,000 cycles
Selector Switch
Electrical Life
500,000 cycles
Pushbutton
250,000 cycles
Selector Switch
Signal Lamp Parameters
| Parameter | Value |
|---|---|
| Pf withstand voltage | AC 2.5KV/min |
| Voltage wave | ±20% |
| Brightness | 60cd/m2 |
| Continuous working life | 100,000h |
Applications
Typical Applications
- Distribution boxes
- Distribution cabinets
- Control cabinets
- Power stations
- Communication networks
