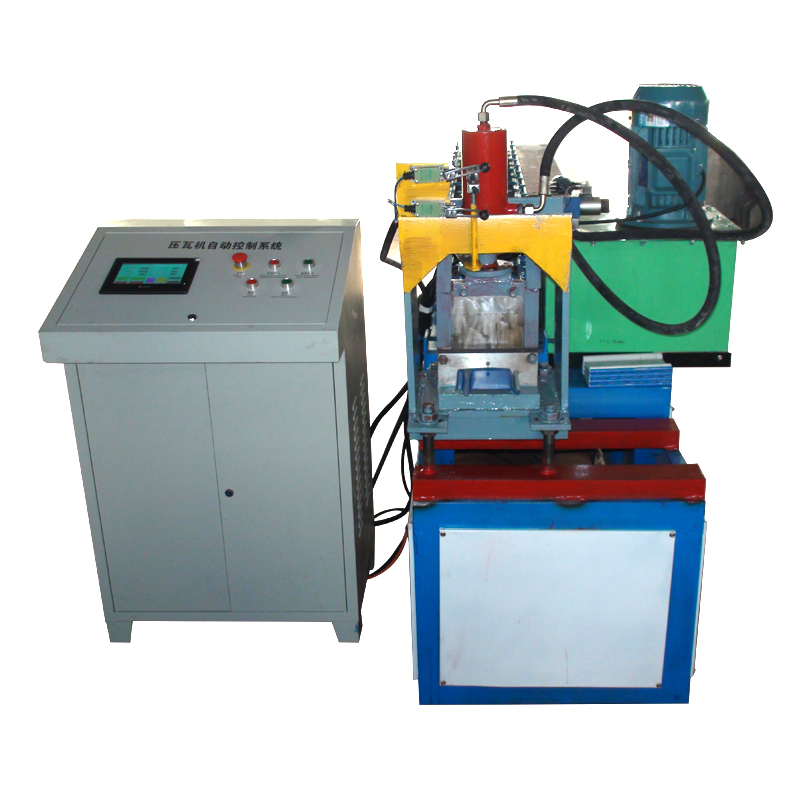

Door Frame Shutter Metal Roofing Roll Forming Machine
This roll forming machine is designed for manufacturing door frames, shutter doors, and metal roofing components. It utilizes a robust hydraulic system for precise forming and cutting operations.
Technical Specifications
Overview
Versatile Roll Forming Solution
This industrial-grade roll forming machine is engineered for the high-precision production of door frames, shutter doors, and metal roofing components. It features a space-saving design with a reasonable structure, making it ideal for facilities with limited floor space or site-specific operations. The system is fully customizable to meet specific user requirements for profile dimensions and material thickness.
Performance Metrics
Key Performance Metrics
3 kW
Main Motor Power
3 kW
Hydraulic Motor Power
20 Mpa
Max Hydraulic Pressure
Technical Specifications
- Power Supply
- 380V / 3 Phase / 50 Hz (Customizable)
- Control System
- PLC Delta Inverter
- Main Frame Construction
- 300mm H-Beam
- Backboard Thickness
- 14 mm
- Drive Chain Size
- 20 mm
Material Handling
- Feeding Thickness
- 2 mm
- Feeding Width
- Customized to user requirements
- Effective Width
- Determined by profile design
Machine Components

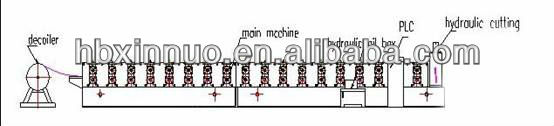

Standard Components
- Decoiler for material feeding

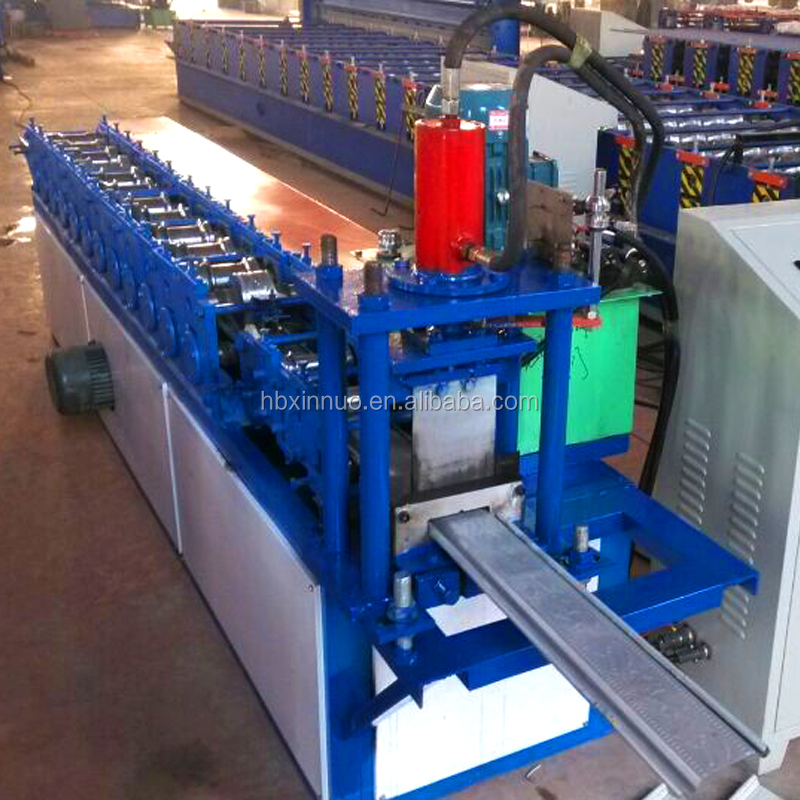

- Main forming machine with multiple stations
- Hydraulic oil box

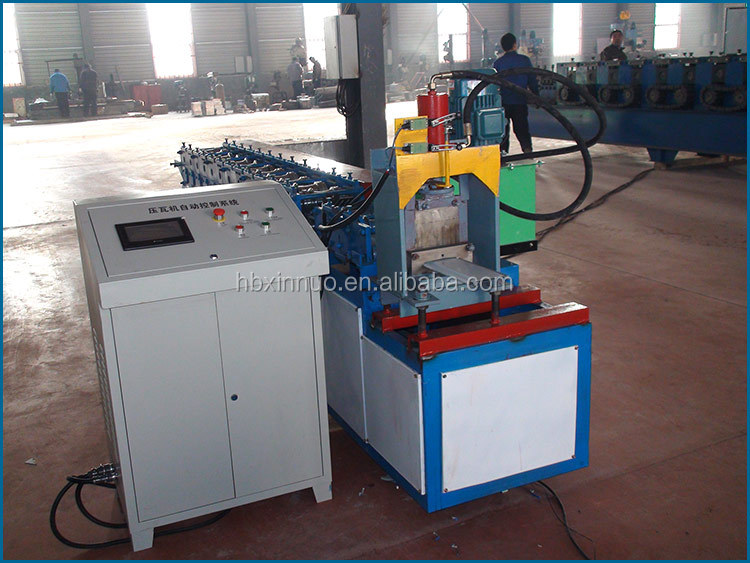

- PLC automated control system
- Hydraulic cutting mechanism
Certifications
Compliance & Quality
CE CertifiedISO 9001Quality Management System
