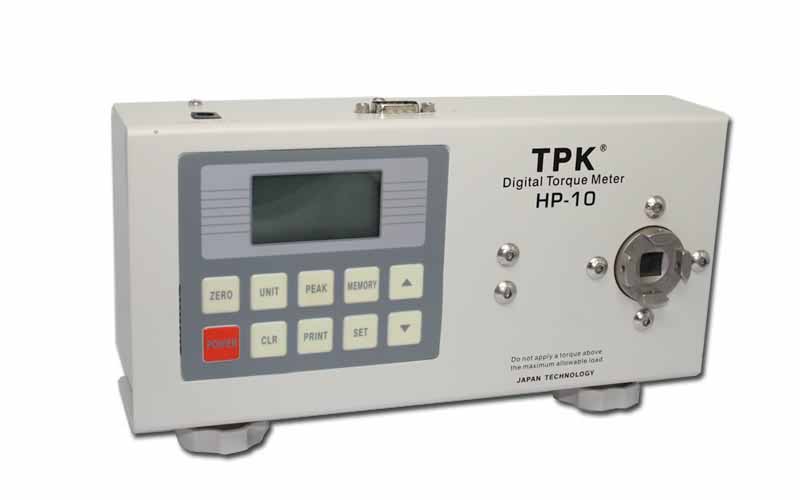

Digital Torque Meter with LED Display
This digital torque meter features a clear LED display for easy reading of torque values. It offers multiple units of measurement and includes peak hold functionality to capture maximum torque readings.
Technical Specifications
Product Overview
Precision Digital Torque Meter
This high-precision digital torque meter is designed for professional quality control, research, and production environments. Featuring an intuitive LED display and robust construction, it ensures accurate torque measurement across a versatile range of units. With peak hold functionality and multiple data management features, it provides reliable performance for demanding industrial applications.
Measurement Performance
Sampling Frequency
600 Hz
Sampling Frequency
Measurement Range
| Unit | Range |
|---|---|
| kgf.cm | 0.15~10.00 |
| N.m | 0.015~1.000 |
| Lbf.in | 0.15~9.00 |
- Measurement Accuracy
- ±0.5% FS
Power and Battery
Battery Specifications
- Type: Ni-Cd Chargeable
- Configuration: 6V x 2
- Charging Duration: 8 Hours
- Continuous Runtime: 50 Hours
- Battery Life Cycle: 500 charges
- Power Adaptor
- Input: AC220V 50Hz / Output: DC12V 300mA
Physical Attributes
- Dimensions
- 123mm x 230mm x 65mm
- Weight
- 2 kg
Features
- Key Functions
- Peak HoldZeroingUnit SelectionMemory StorageDigital Display
