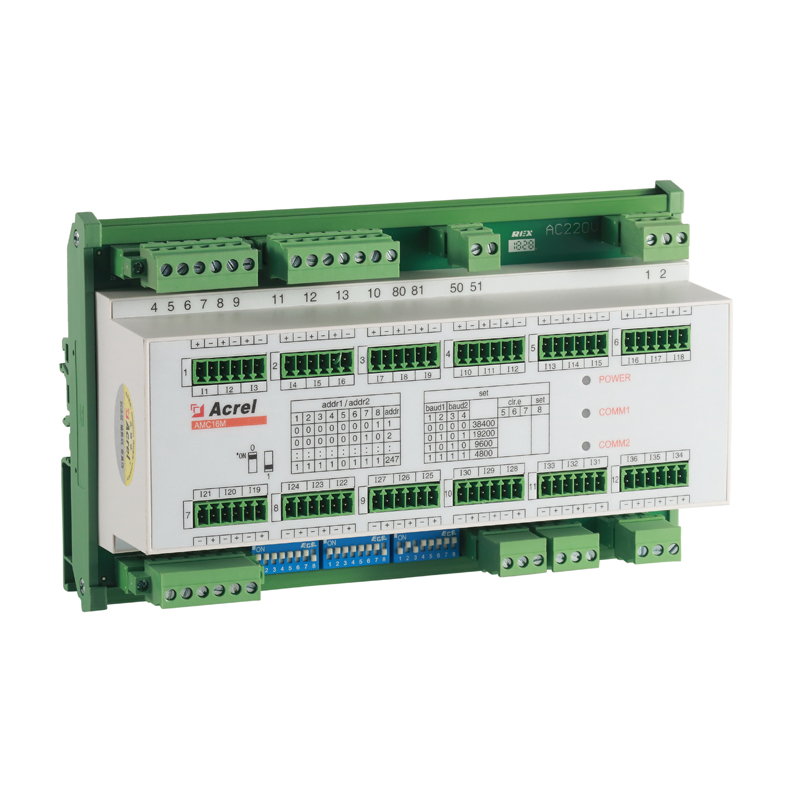

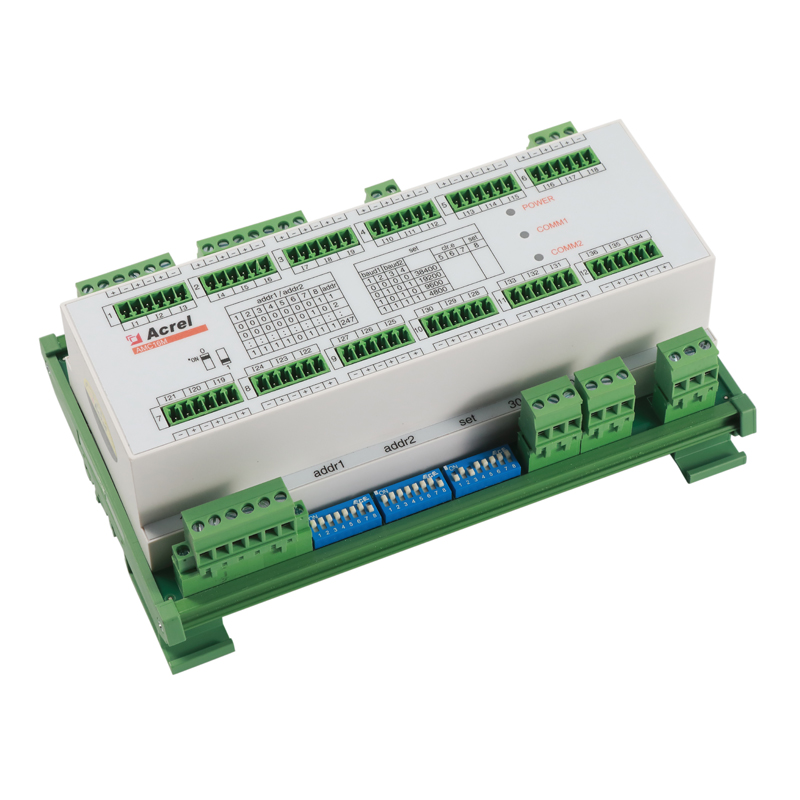

Data Center Power and Energy Monitor
This device is designed for power supply management of servers in data centers. It monitors 2 incoming and 36 outgoing circuits, measuring voltage, current, power, energy, and power factor.
Technical Specifications
Overview
Intelligent Data Center Monitoring
This programmable three-phase power and energy monitor is specifically engineered for server power management in data center environments. Utilizing advanced AC sampling technology, it provides precise measurement of voltage, current, and energy consumption across multiple circuits. The device integrates seamlessly into existing industrial control systems, supporting both local display and remote communication protocols.
Technical Specifications
Monitoring Channels
2 channels
Incoming Line Circuits
36 channels
Outgoing Line Circuits
- Measured Parameters
- Voltage (U)Current (I)Active Power (P)Reactive Power (Q)Apparent Power (S)Power Factor (PF)Active Energy (kWh)Reactive Energy (kvarh)
Connectivity & Control
Communication Interfaces
- 2 x RS485 Communication Ports
- Modbus Protocol Support
- I/O Capabilities
- 1 On-Off Output
Advanced Features
Harmonic Analysis
Optional 2nd-15th Harmonic
- Sampling Technology
- AC Sampling Technology
