Technical Specifications
Product Overview

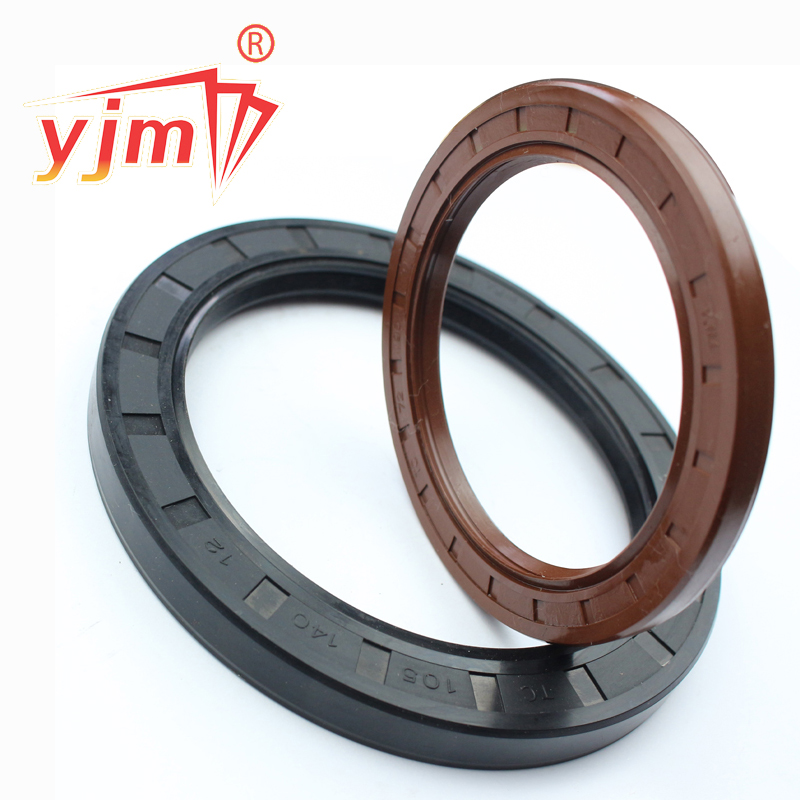

High-Performance Crankshaft Oil Seal
This crankshaft oil seal is a precision-engineered component designed to isolate lubricated parts from transmission components, effectively preventing oil leakage. It serves as a vital barrier against contaminants such as water, chemical liquids, dust, and sand. Featuring a robust skeleton structure with a self-tightening spring, this seal ensures optimal engine performance and longevity under demanding automotive conditions.
Technical Specifications
Material Options
- Nitrile rubber
- Acrylic polyester rubber
- Silicone rubber
- Fluorine rubber
- Seal Type
- TC Skeleton Oil Seal
- Design Features
- Double-lipSelf-tightening springRubber-covered springMetal skeleton
Dimensions
Key Dimensions
105 mm
Outer Diameter
140 mm
Inner Diameter
12 mm
Width
Alternative Dimensions
79.37 mm
Outer Diameter
47.62 mm
Inner Diameter
12.7 mm
Width
