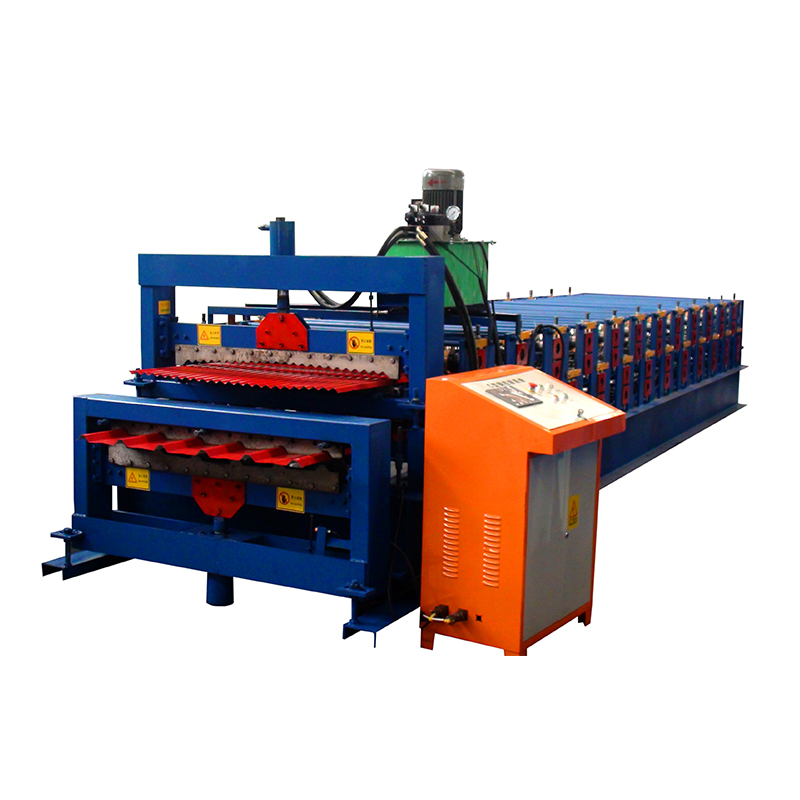

Corrugated and Standing Seam Metal Roofing Machine

Versatile Double-Layer Roll Forming Solution

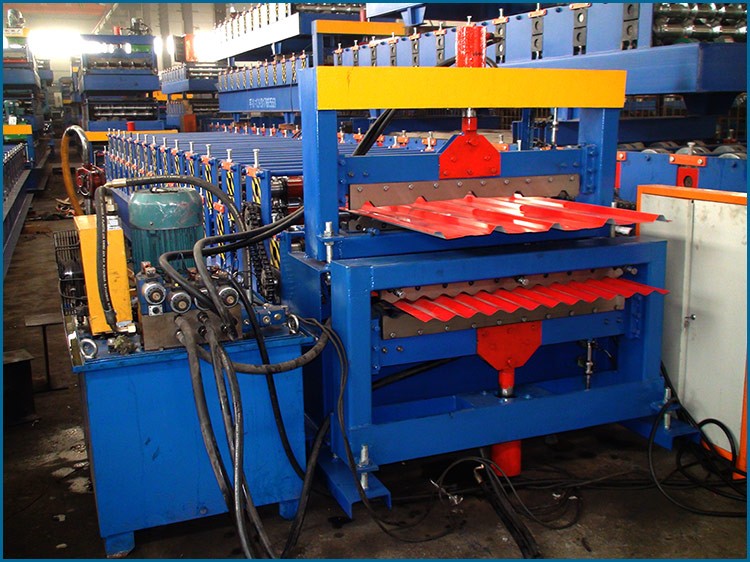

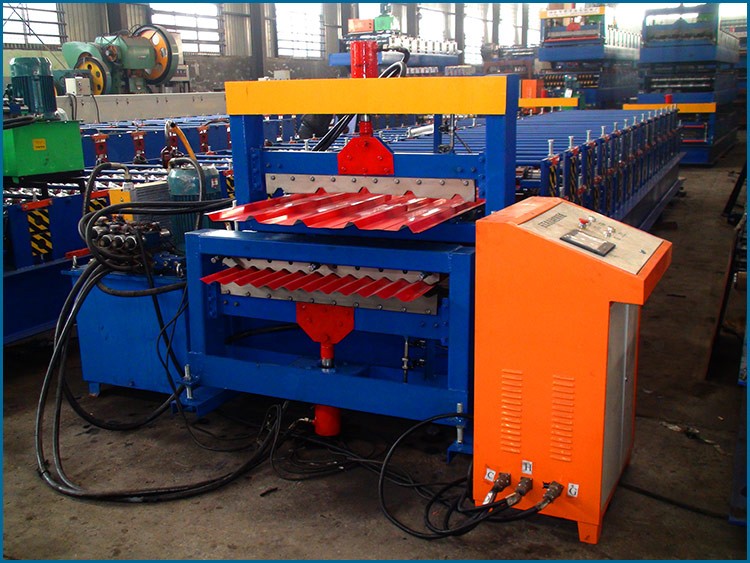

This high-efficiency machine is designed to produce both corrugated sheets and standing seam metal roofing profiles using a space-saving double-layer design. It integrates the entire manufacturing process from uncoiling and roll forming to hydraulic cutting and automated stacking. Built with a robust steel frame and precision-engineered rollers, it offers a reliable solution for high-volume production of durable roofing and cladding materials.

Performance Metrics

Roller System Details

• Material: High grade No.45 forged steel
• Roller Stations: 11-18 rows (customizable)
• Shaft Diameter: 70-80mm

Hydraulic Cutting System

• Blade Material: Cr12Mov with quenched treatment
• Drive: Hydraulic drive controlled by PLC
• Function: Precision dimension cutting for two different profiles

PLC Control Cabinet

• Operation Modes: Automatic and Manual
• Programmable Settings: Profile length and quantity
• Supported Languages: English, Chinese, Spanish, Russian

Hydraulic Unit Parameters

Production Workflow Stages

• Raw Material Preparation
• Component Machining
• Base Plate Production
• Shot Blasting Surface Treatment
• Corrosion-Resistant Painting
• Machine Assembly
• Debugging and Testing
• Packing and Shipment

Compliance & Quality
