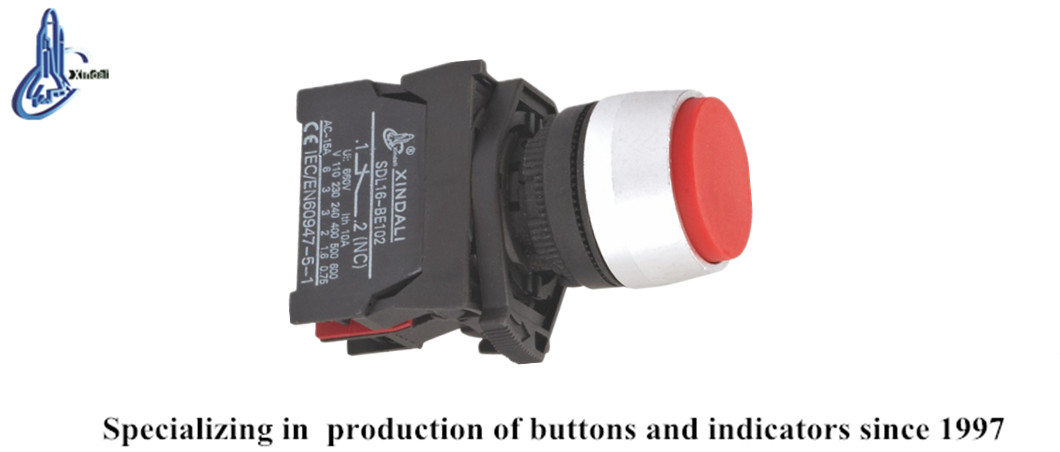

Convex Metal Push Button Switch with Waterproof Cover
This metal push button switch features a convex button and waterproof cover. It is designed for controlling circuits in AC voltage up to 660V and DC voltage below 400V.
Technical Specifications
Product Overview
Industrial Push Button Switch
This convex metal push button switch is engineered for high-performance industrial control applications. Featuring a robust zinc alloy body and specialized silver alloy contacts, it offers excellent resistance to electrical erosion. The integrated waterproof cover ensures reliable operation in demanding environments, making it ideal for control signals, warning indicators, and emergency stop systems.
Technical Specifications
Protection Grade
IP65
Mechanical Life
3 million ops
Standard Button
300,000 ops
Emergency Stop
- Rated Insulation Voltage (Ui)
- 600 V
- Conventional Heating Current (Ith)
- 10 A
- Operating Temperature
- -5°C to +55°C
- Certifications & Standards
- CEIEC60947-5-1GB/T14048.1GB14048.5RoHSISO9001

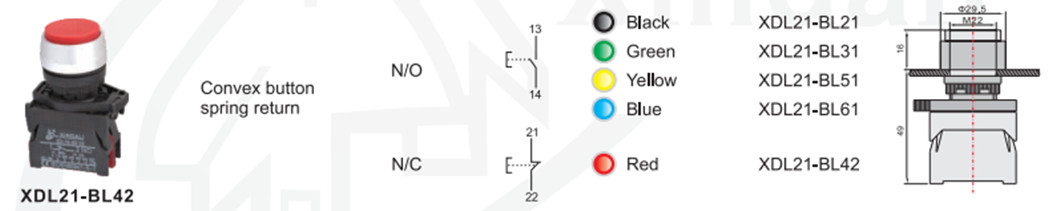

Dimensional Data
Mounting Details
| Parameter | Value |
|---|---|
| Mounting Hole Diameter | 22mm |
| Thread Size | M22 |
| Button Diameter | 29.5mm |
| Total Height | 49mm |
