Technical Specifications
Overview

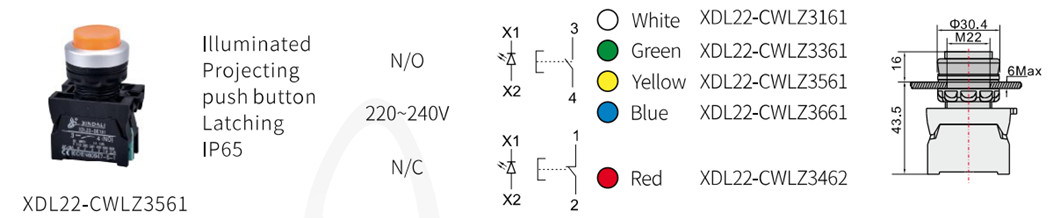

Convex LED Push Button Switch

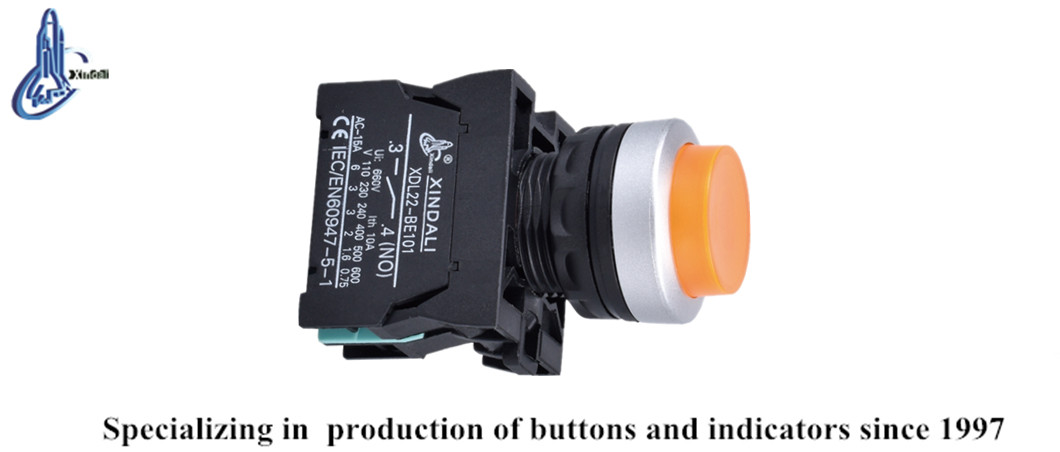

The XDL22 series convex LED push button switch is engineered for demanding industrial environments requiring reliable signal and interlocking control. Featuring a robust zinc alloy and high-grade anti-flam plastic construction, it offers excellent durability and resistance to electrical erosion. The switch is fully IP67 waterproof-rated, ensuring peak performance against dust and moisture ingress, and is fully certified to international safety standards including CE and IEC60947-5-1.
Electrical Ratings
Rated Current
10 A
Ith
- Voltage Compatibility
- AC 660VDC 400VAC 380V (Signal Lamp)
Environmental Performance
Ingress Protection
IP67IP66IP65
- Temperature Range
- Operating: -5℃ to +55℃; Storage: -25℃ to +70℃
Technical Specifications
Mounting Dimensions
22 mm
Mounting Hole
6 mm
Max Panel Thickness
Mechanical Life
- Standard Pushbutton: 300,000 cycles
- Emergency Button: 30,000 cycles
- Compliance
- CEISO9001RoHSULIEC60947-5-1
