Convex Head Green Indicator Push Button Switch
This metal push button switch features a convex head and an integrated green indicator lamp. Designed for electrical power applications, this switch provides reliable performance and clear visual indication of its operational state.
Technical Specifications
Product Overview
Convex Head Green Indicator Push Button
This robust metal push button switch features a distinctive convex head design integrated with a bright green indicator lamp for clear visual status feedback. Engineered for industrial reliability, it supports both AC and DC control circuits and is built to withstand harsh environments. Its high-grade zinc alloy construction and special silver alloy contacts provide excellent resistance to electrical erosion, ensuring a long mechanical service life.

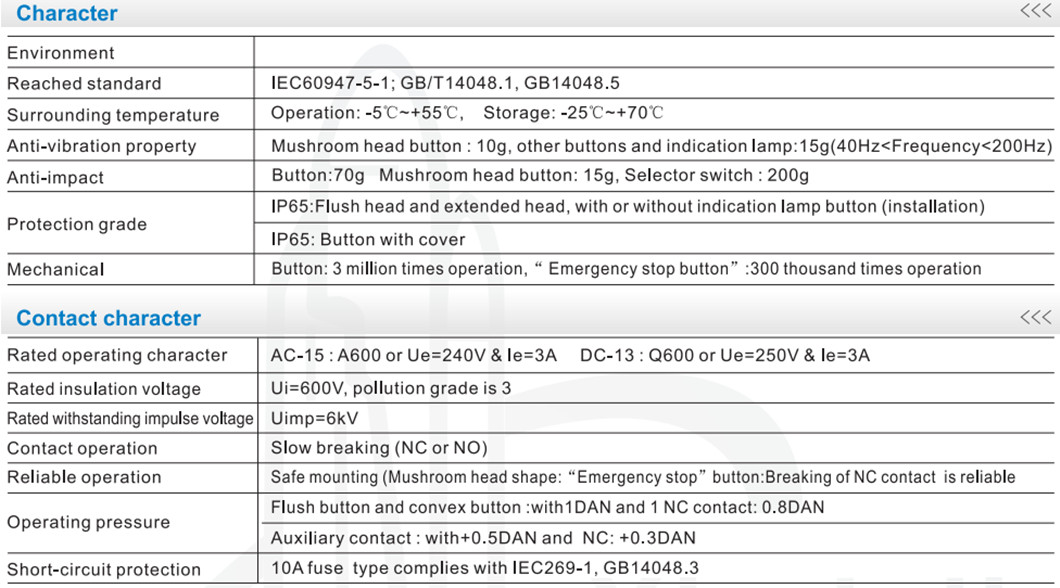

Technical Specifications
- Rated Insulation Voltage
- 600 V
- Conventional Thermal Current (Ith)
- 10 A
- Pollution Grade
- 3
- Fastening Torque
- 0.8Nm (Max: 1.2Nm)
Environmental Performance
- Operating Temperature Range
- -5°C to +55°C
- Storage Temperature Range
- -25°C to +70°C
- Relative Humidity
- 35% - 85% RH
- Protection Rating
- IP40IP54IP65IP66IP67IP68
Certifications & Standards
Conforming Standards
- IEC60947-5-1
- GB/T14048.1
- GB14048.5
- CE
- ISO9001
- RoHS
- UL
Mechanical Performance
Mechanical Life
3,000,000 cycles
Standard Button Operations
300,000 cycles
Emergency Stop Operations
