Convex Cover Pushbutton Switch with LED Indicator

This convex cover pushbutton switch features an integrated LED indicator. It is designed for controlling circuits in industrial applications, providing clear visual feedback.

Request a Quote Download PDFPDF

XDL27-CWL3462 Convex Cover Pushbutton Smart Light Switch with LED Light - Image 1

Technical Specifications

Overview

Convex Cover Pushbutton with LED

The XDL27-CWL3462 is a high-performance convex cover pushbutton switch featuring an integrated LED indicator. Engineered for industrial reliability, this switch is constructed from premium zinc alloy and anti-flame plastic, ensuring durability in demanding environments. It is designed for signal control and interlocking applications, offering high electrical erosion resistance through special silver alloy contacts.

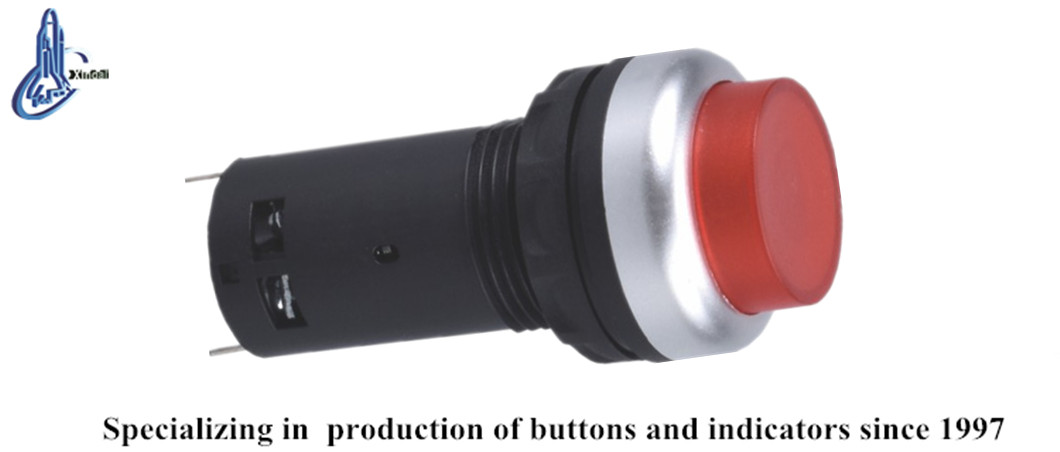

XDL27-CWL3462 convex cover pushbutton switch with LED — The XDL27-CWL3462 provides clear visual feedback with integrated LED status indication

Compliance & Certifications

Certifications: CEISO 9001ROHSUL
Applied Standards: GB/T14048.1IEC60947-5-1

Electrical Ratings

Rated Voltage

AC up to 660V (50/60Hz)
DC below 400V

Conventional Heating Current: 10 A
Insulation Resistance: ≥50MΩ

Performance Metrics

Mechanical Life

1,000,000 cycles

Pushbutton

500,000 cycles

Selector Switch

Electrical Life

5,000,000 cycles

Pushbutton

250,000 cycles

Selector Switch

Physical Specifications

Dimensional Data

Feature	Value
Mounting Size	M22
Button Diameter	30mm
Total Length	42.3mm
Base Diameter	20.3mm
Button Height	15.5mm

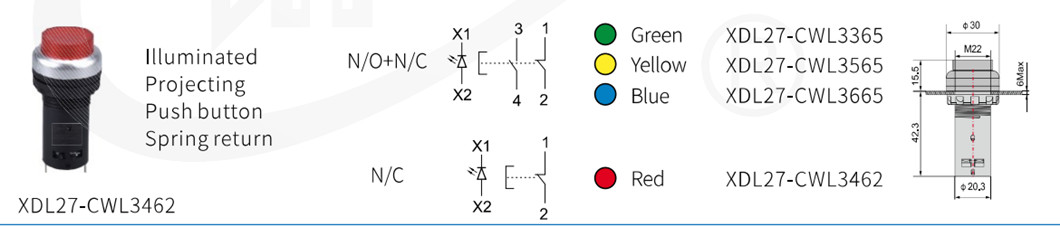

Technical diagram of the XDL27-CWL3462 series pushbutton dimensions and contact options — Dimensional outline and contact configuration layout
