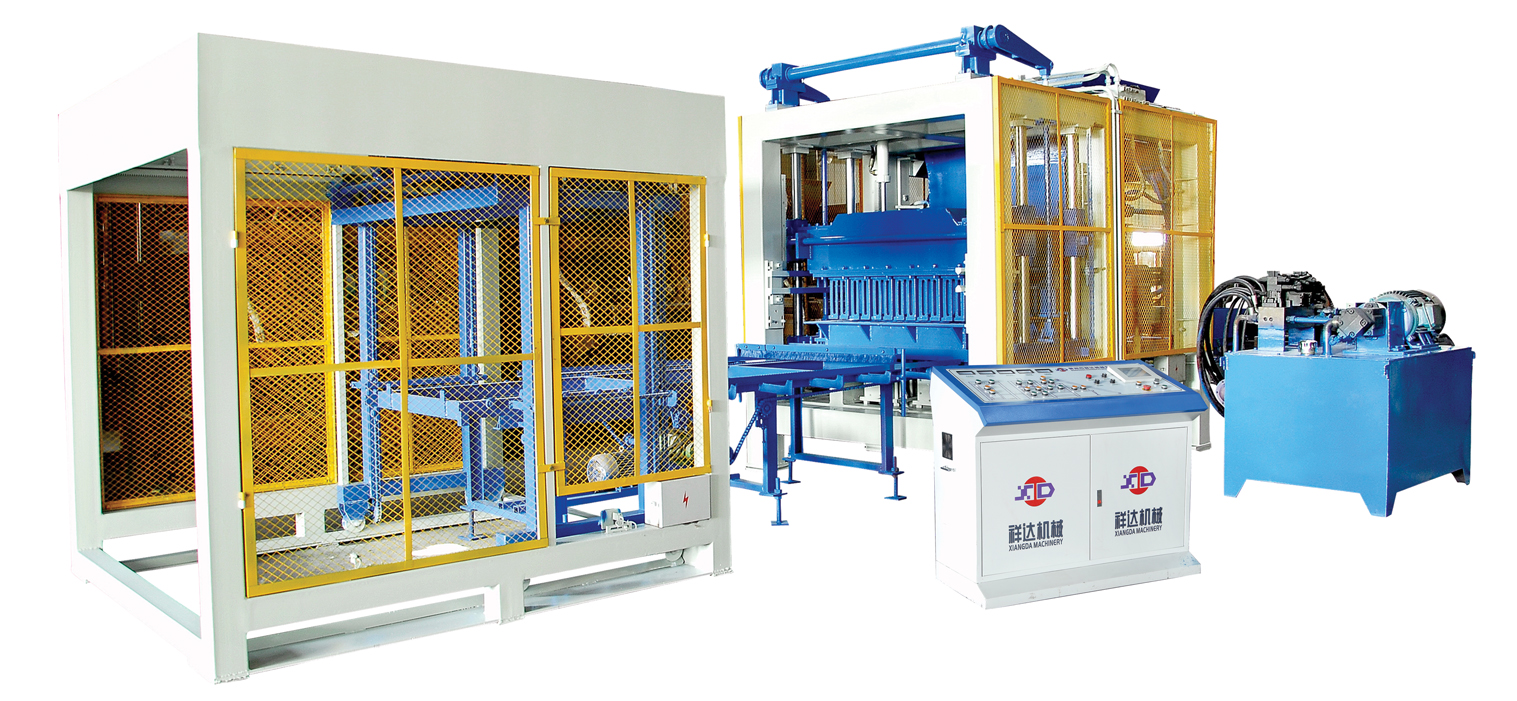

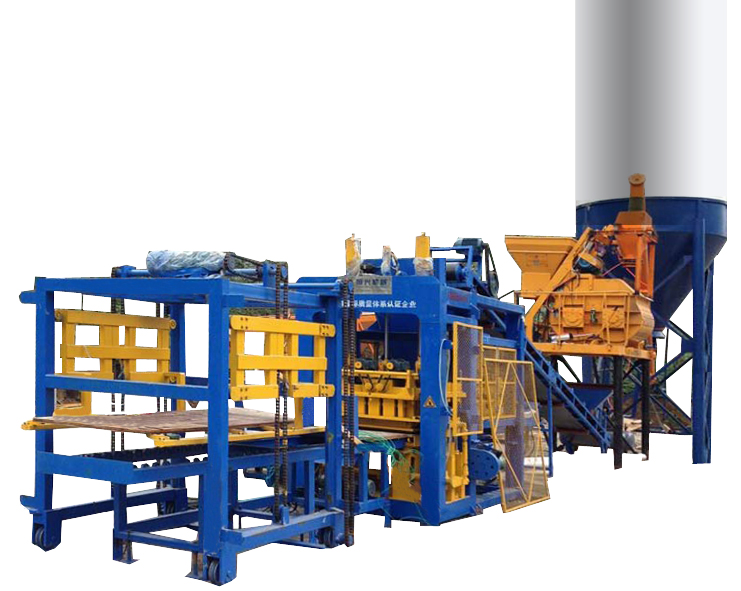

Concrete Block Manufacturing Machine
This automatic block machine is designed for efficient and precise production of concrete blocks. The robust machine features a hydraulic system for powerful pressing and molding, ensuring consistent block density and dimensional accuracy.
Technical Specifications
Overview
High-Efficiency Hydraulic Block Production
The XD10-15 is a fully automatic hydraulic brick making machine designed for high-yield industrial production. Controlled by an advanced PLC system with a touch-screen interface, it automates feeding, distribution, and pallet conveying to ensure consistent quality and high output. Its robust construction and integrated fault diagnosis system make it an ideal investment for large-scale brick factories seeking reliable performance and significant profit margins.
Key Performance Metrics
Performance Highlights
20 Mpa
Nominal Pressure
35 KW
Gross Power
12 sec
Min Cycle Time
10,500 Kg
Overall Weight
Technical Specifications
- External Dimensions
- 3000 x 1980 x 2730 mm
- Vibration Frequency
- 50~70 HZ
- Vibration Force
- 60-80 Kn
- Pallet Size
- 1100 x 880 x 25-30 mm
- Molding Area
- 1080 x 800 mm
Control & Automation
Control System
- Programmable Logic Controller (PLC)
- Touch screen text display
- Remote controlling system for diagnosis
- Automatic fault diagnosis and warning signals
- Sensor-based auto motion system
Production Capacity
Output by Brick Type
| Brick Type | Size (mm) | Pcs/Mould | Pcs/8 Hours |
|---|---|---|---|
| Hollow Block | 390×190×190 | 10 | 19,200 |
| Solid Brick | 240×115×53 | 51 | 97,920 |
| Holland Brick | 200×100×60 | 35 | 50,400 |
| Porous Block | 240×115×90 | 24 | 46,080 |
| Paving Block | 225×112.5×60 | 24 | 34,562 |
Construction & Features
Build Quality
- Main frame constructed from thick-walled square tubes
- Solid steel plate base with machined surface
- Special anti-wet electrode welding for durability
- Impact-type flexible vibration system
- Rolling forced cloth distribution system
Operational Requirements
- Required Workshop Area
- 300 M2
- Water Consumption
- 6 Ton
