Concrete Block Making Machine

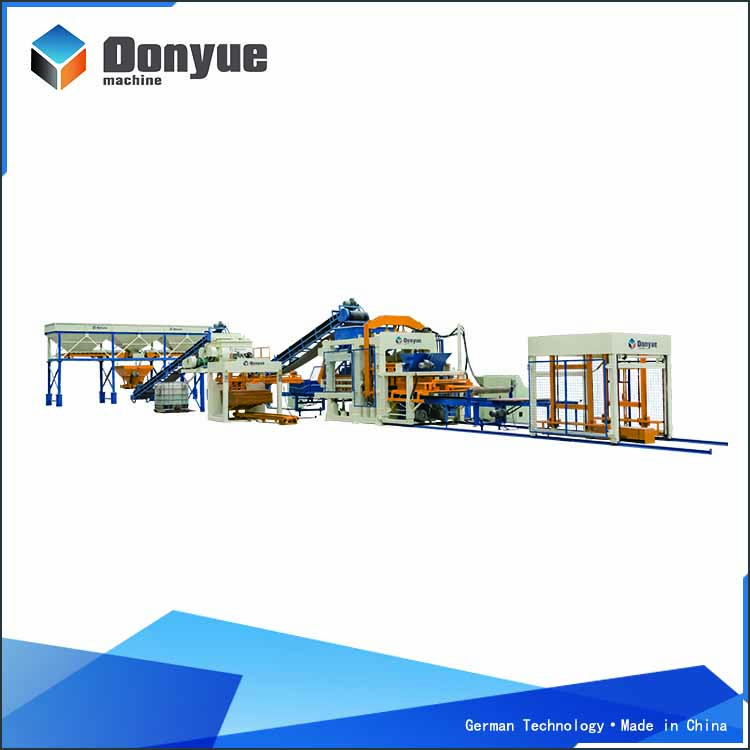

This automated machine is engineered for the efficient production of concrete blocks. It utilizes a hydraulic pressing unit and an automated system for material handling and stacking.
Technical Specifications
Overview
High-Efficiency Concrete Block Production
This concrete block making machine offers a versatile production solution suitable for operations of all scales. It features an automated line capable of handling the entire process from batching and mixing to conveying and stacking. Designed for high efficiency, it supports both semi-automatic and fully automatic configurations to meet specific production requirements.
Technical Specifications
Color
Optional
- Machine Dimensions
- 3800 x 2500 x 3550 mm
- Host Machine Power
- 56.2 KW
- Vibration Force
- 100-130 KN
- Host Machine Weight
- 13.5 T
- Pallet Size
- 1400 x 900 x 35 mm
- Block Making Period
- 15 s
Production Capacity
Production Capacity by Block Size
| Size (LxWxH mm) | Pcs/Mould | Pcs/Hour | Pcs/8 Hours |
|---|---|---|---|
| 200x100x60 | 42 | 7560 | 60480 |
| 240x115x53 | 60 | 10800-14400 | 86400-115200 |
| 400x200x200 | 12 | 2160-2880 | 17280-23040 |
| 200x163x60 | 28 | 4320 | 34560 |
