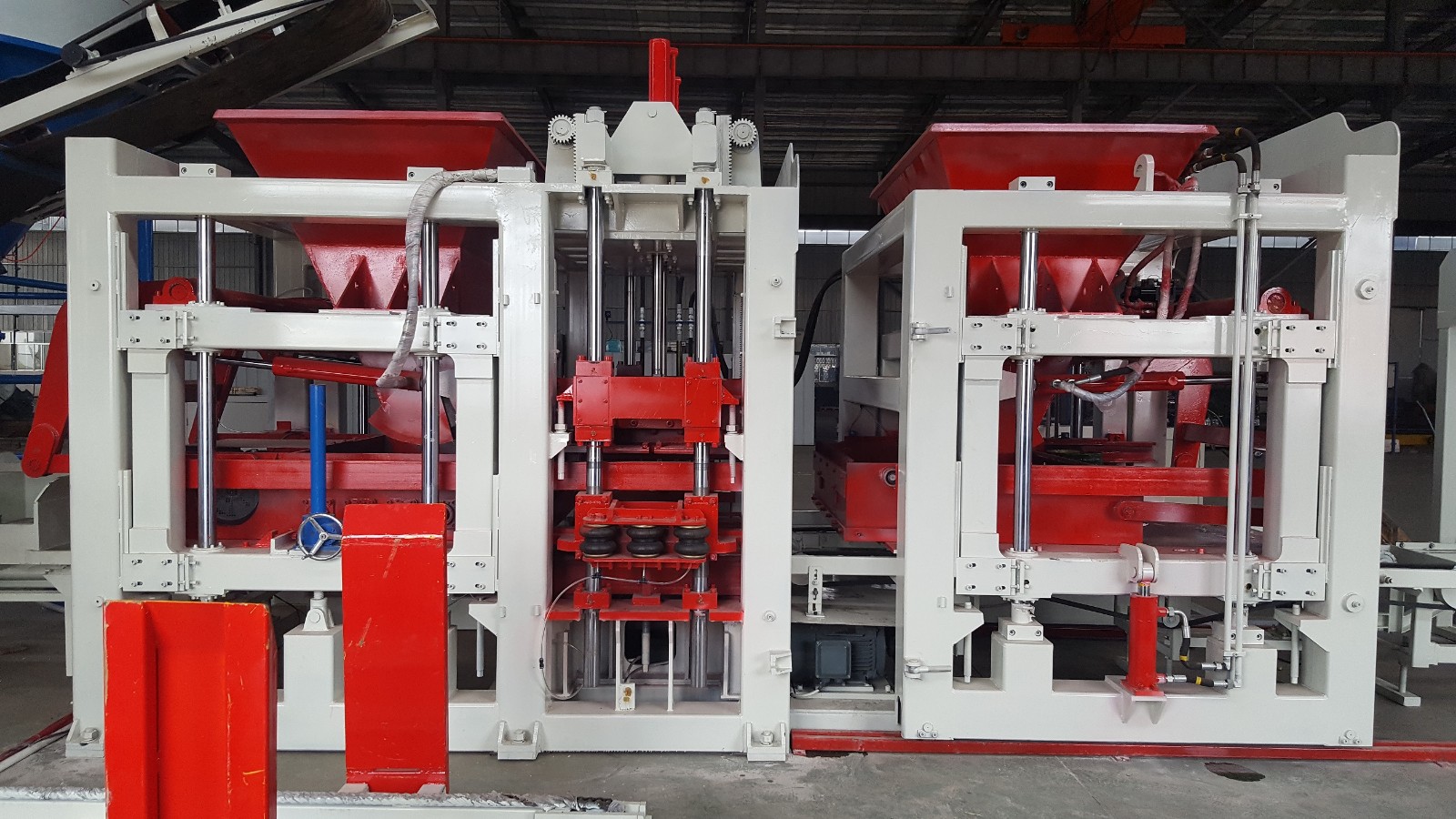

Concrete Block, Brick, and Paver Machine

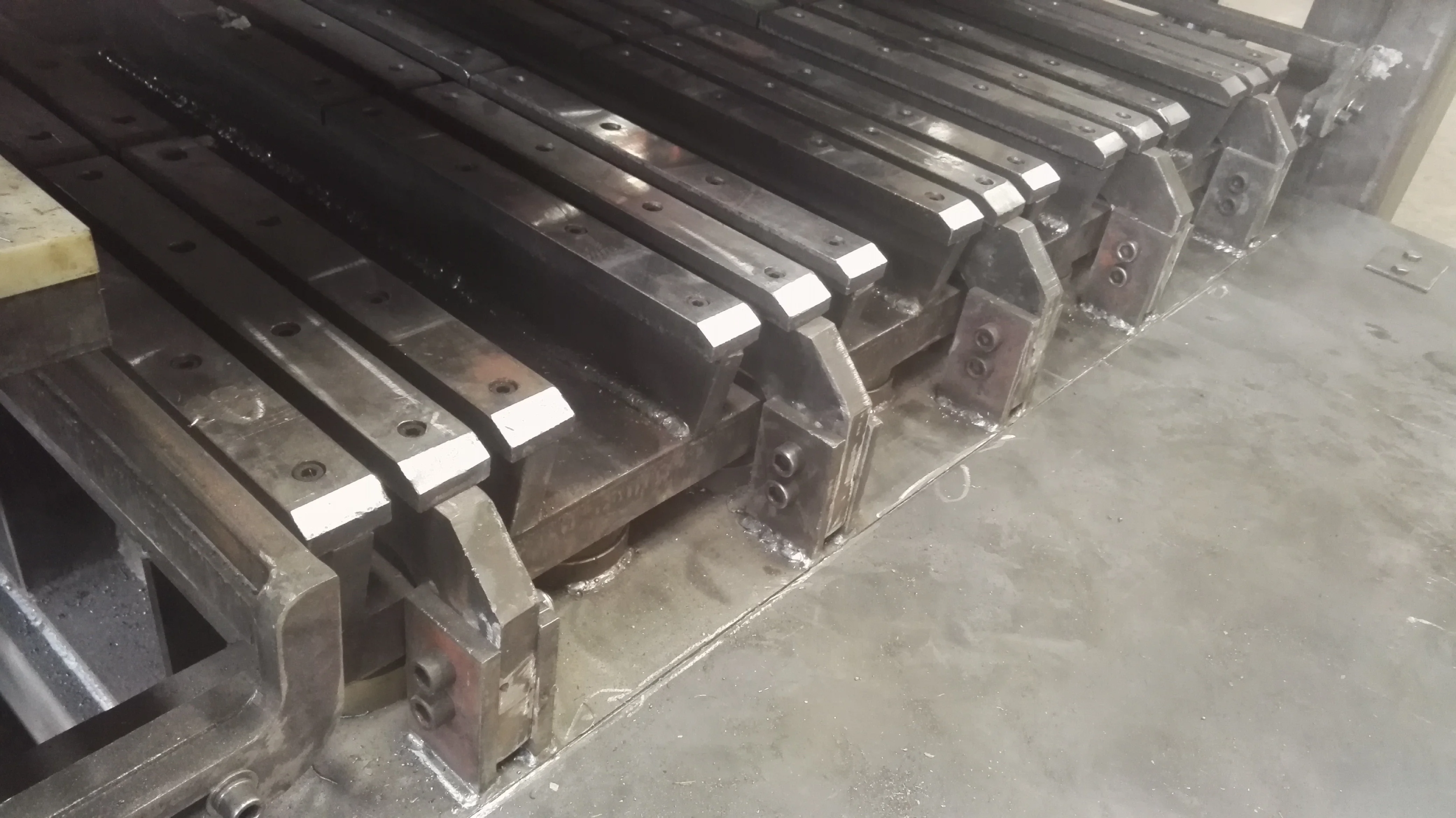

This multifunctional block machine produces various types of blocks, bricks, pavers, and curbstones by changing the molds. Its particular storage and description material system ensures feeding accuracy and avoids the effect of exterior material.
Technical Specifications
Overview
Multifunctional Concrete Block Production
This high-end automated machine is designed for the versatile production of concrete blocks, bricks, pavers, and curbstones by simply changing the molds. It features a particular storage and material description system that ensures feeding accuracy and high product density. Utilizing synchronization vibration technology, the system achieves optimal compaction for various materials through adjustable frequency controls.
Technical Capabilities
Performance Metrics
21 MPa
Rated Pressure
- Rated Pressure
- 21 MPa
- Overall Dimensions
- 7500 × 2500 × 3020 mm

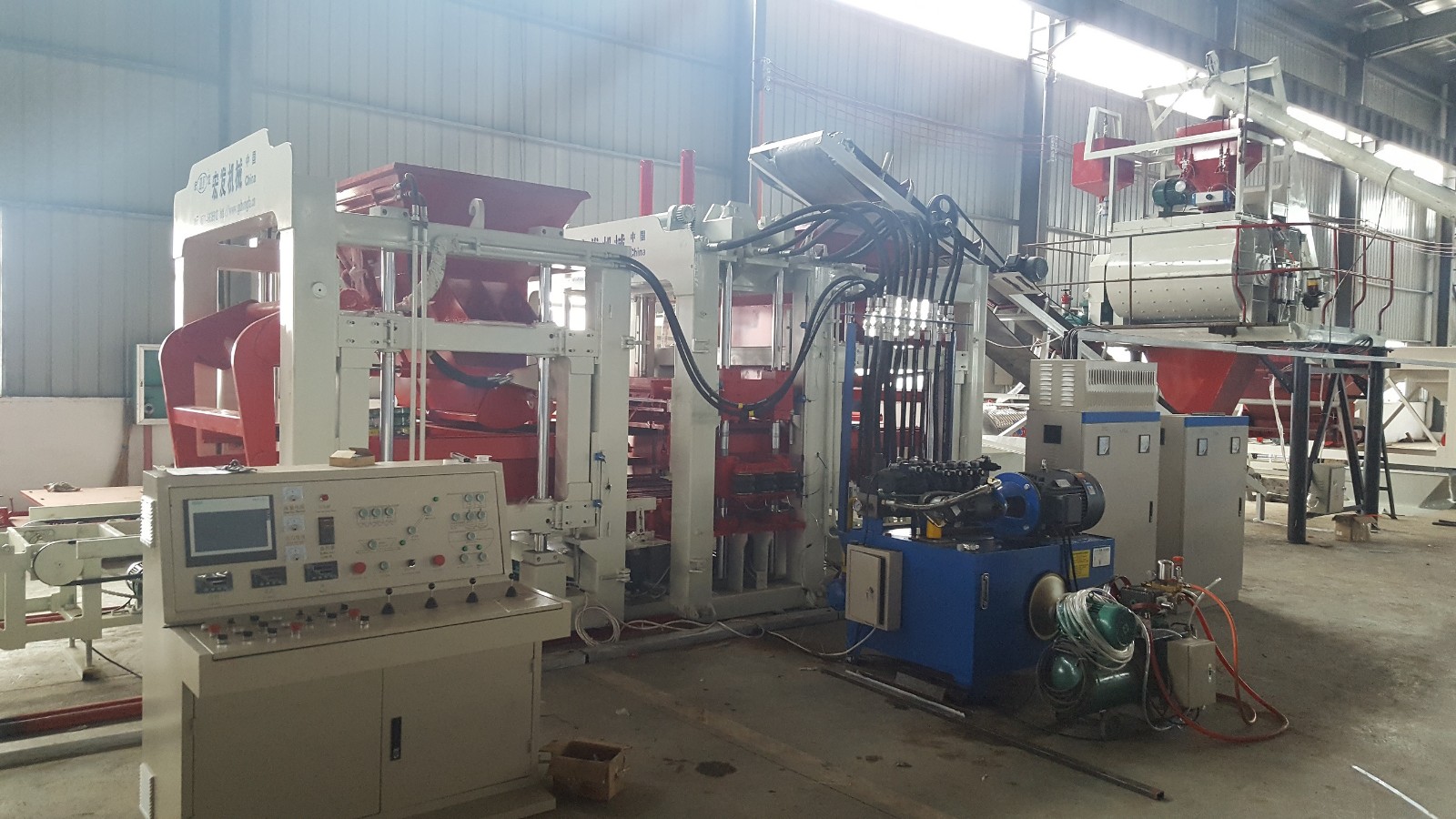

Control System
Control System Features
- PLC intelligent control with man-machine interface
- Complete logic control and production programming
- Integrated malfunction diagnosis system
- Remote control functionality for scrutiny and diagnosis
- Warning signals for fault elimination
- Simple operator training requirements
Production Scope
- Supported Block Types
- Color-face bricksThrough-body tilesLock linkage blocksRoad curb bricksHydraulic blocksHollow blocksPerforated bricksStandard bricks
Mechanical Engineering
Advanced Mechanical Systems

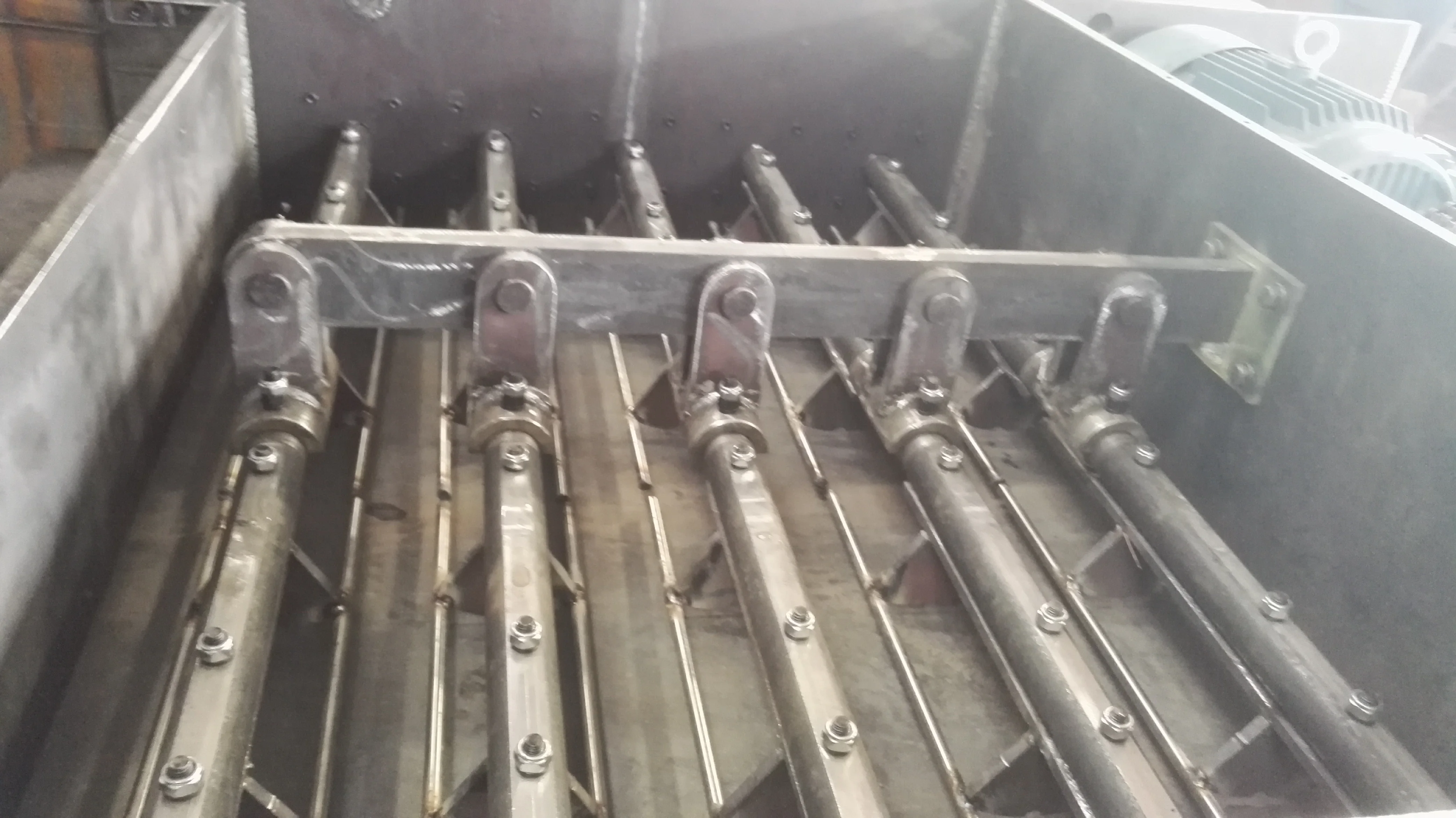

- High-strength twin crank arm for material feeder
- High-speed swing-type material feeding system
- Automatic hydraulic pallet feeding system
- Twin hydraulic cylinder balanced propulsion
- Four posts sliding positioning system
- Airbag shocking mitigation system
- High-strength split-type vibration platform
- Siemens variable frequency motor
- Block conveyor with automatic extra materials cleaning
- Vibration Technology
- Synchronization vibration with frequency adjustment (Low frequency for feeding, high frequency for optimal compaction).
