Color Brick Block Making Machine
This machine produces concrete blocks ideal for load-bearing and non-load-bearing walls. The resulting bricks offer a higher strength-to-weight ratio, aiding in the design of stronger and more economic structures.
Technical Specifications
Overview
High-Efficiency Concrete Block Production
The QFT3-20 is a professional-grade color brick and block making machine designed for high-volume production in diverse construction applications. Featuring an advanced hydraulic pressing system and robust construction, it ensures consistent density, strength, and high-quality finishes for every unit produced. Its modular design allows for rapid mold changes, making it a versatile and cost-effective solution for manufacturing everything from interlocking pavers to hollow and cellular blocks.
Technical Specifications
- Machine Dimensions
- 4500 x 1500 x 2800 mm
- Machine Weight
- 5600 KG
- Rated Pressure
- 21 MP
- Vibration Frequency
- 50HZ; 3000-4000 r/min
- Power Rating
- 30 kw
Production Capacity
Production Output (per 8-hour shift)
| Product Type | Capacity | pcs/mould |
|---|---|---|

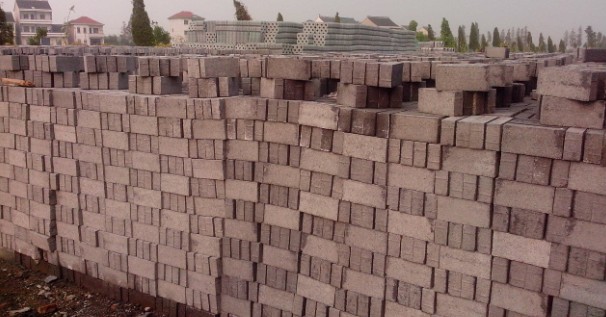

| Standard Brick | 28,000 | 20 |

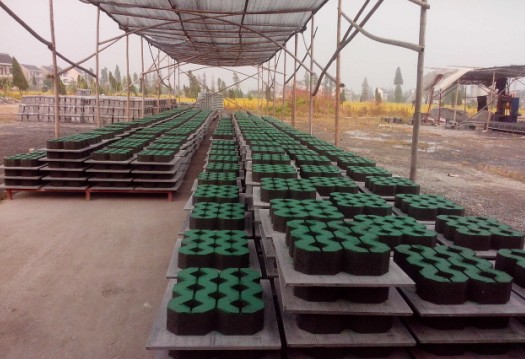

| Paver | 17,280 | 12 |
| Hollow Brick | 5,760 | 4 |
| Cellular Block | 4,320 | 3 |
Operating Specifications
- Pallet Size
- 695 x 560 x 15 mm
- Key Features
- Hydraulic SystemPLC ControlModular DesignAutomated Feeding
