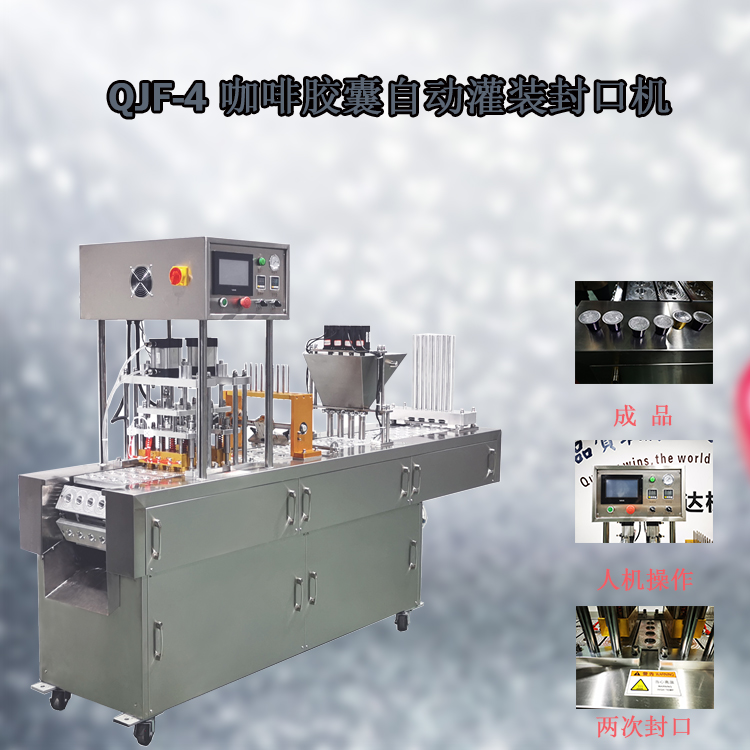

Coffee Capsule Filling and Sealing Machine
This automatic machine fills coffee capsules with precise amounts of coffee and seals them for freshness. It features a user-friendly interface for easy operation and monitoring.
Technical Specifications
Product Overview
Efficient Coffee Capsule Production
This automatic coffee capsule filling and sealing machine is designed to streamline the production of single-serve coffee capsules. It efficiently handles cup dropping, filling, and sealing, making it suitable for various powders including coffee, tea, dental bleaching powder, and sugar. Constructed with durable steel and stainless steel, the machine offers simple operation and can be customized to meet specific production requirements.
Construction Material
SteelStainless Steel
Technical Specifications
Performance Comparison
| Specification | JQF-4 | JQF-6 |
|---|---|---|
| Packaging Speed (pcs/h) | 3600 | 5000 |
| Filling Content (ml) | 0-35 | 0-35 |
| Heat Up Power (KW) | 3.2 | 4.8 |
| Weight (kg) | 500 | 650 |
Key Operating Parameters
220 V
Voltage
0.75 KW
Electric Motor Power
0.5 MPa
Min Air Pressure
0.45 m3/m
Max Air Consumption
- Available Models
- JQF-4JQF-6
Physical Dimensions
Machine Dimensions (L*W*H)
- JQF-4: 2500*500*1550mm
- JQF-6: 2800*600*1550mm
