Technical Specifications
Overview
Versatile Brick Manufacturing Solution

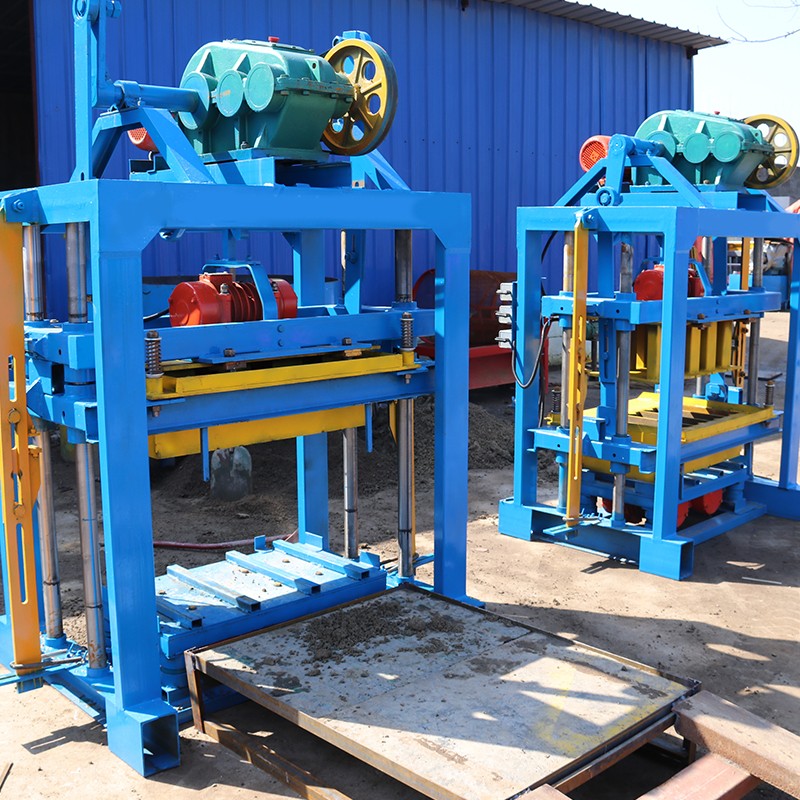

The RH series brick making machines are engineered for the efficient production of high-quality cement and clay bricks. These robust units feature heavy-duty steel frames and hydraulic systems to ensure consistent compression and uniform brick density. Designed for small to medium-scale operations, they offer a cost-effective way to manufacture various brick sizes through interchangeable mold systems.
Performance Metrics
Key Performance Metrics
3,000 pcs/8h
Max Capacity
22 MPA
Max Pressure
15 S
Min Cycle Time

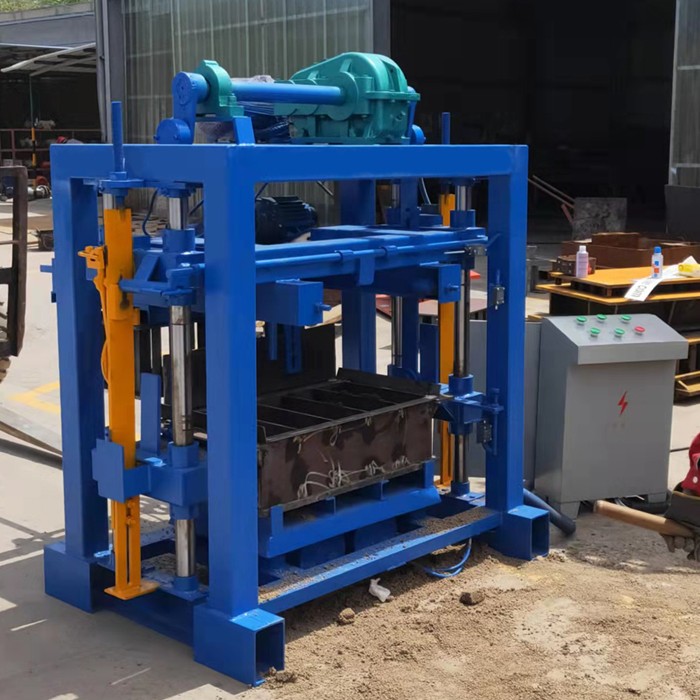

Model RH4-40 Specifications
- Vibrating Motor Power
- 4.4 KW
- Lifting Motor Power
- 3 KW
- Machine Weight
- 1400 KGS
- Dimensions (L*W*H)
- 1600*1300*2100mm
Model RH2-25 Specifications
Technical Parameters
| Parameter | Value |
|---|---|
| Voltage | 220V/380V |
| Power | 5.5KW |
| Shaping Cycle | 15-20S |
| Pressure | 16-22 MPA |
| Capacity | 2500-3000 pcs / 8 hours |
Materials & Versatility
- Suitable Raw Materials
- ClaySandCement
Design Features
Core Features
- Heavy-duty steel frame for durability
- Hydraulic system for powerful compression
- Automated control panel for easy operation
- Modular design for quick mold changes
- Integrated material hopper and feeding system
- Safety guards and emergency stop buttons
