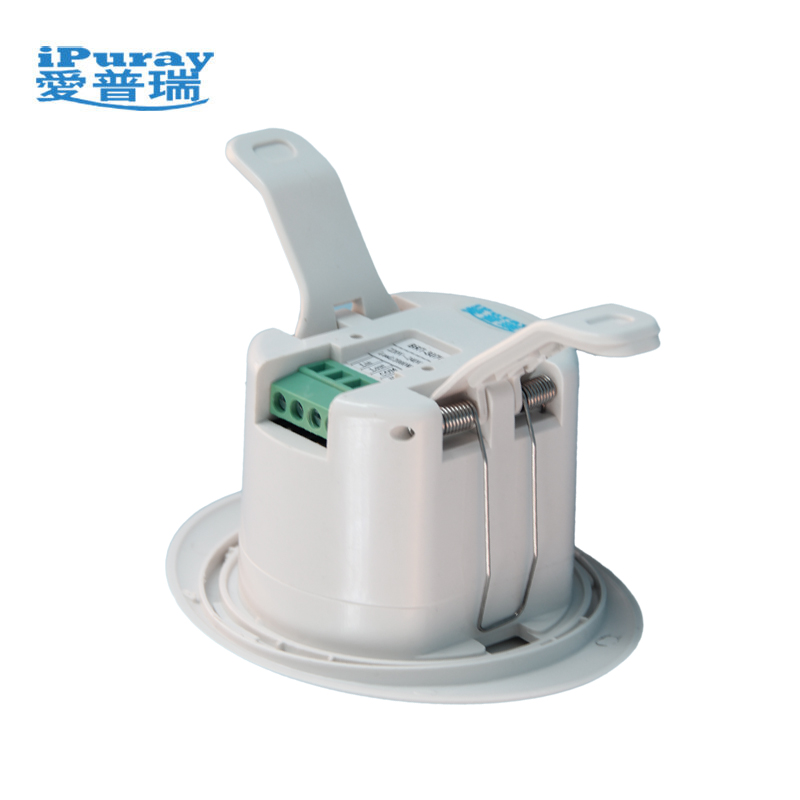

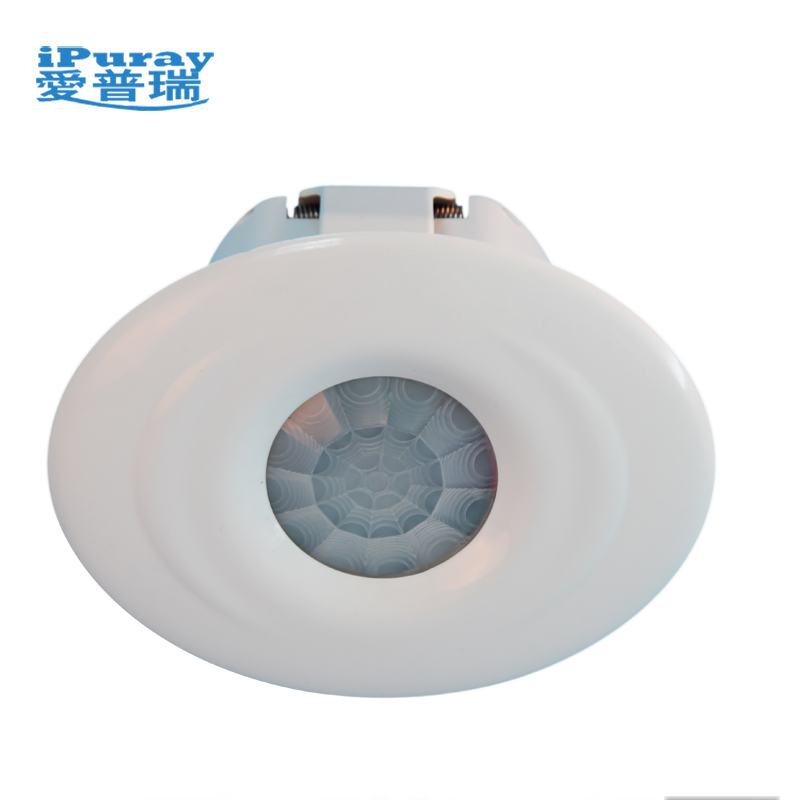

Ceiling Mount PIR Motion Sensor Switch
This ceiling mount PIR motion sensor switch provides automated lighting control. It uses passive infrared technology to detect motion and activate lights or other connected devices.
Technical Specifications
Product Overview
Automated Climate and Lighting Control
This ceiling-mounted PIR motion sensor switch is an advanced energy-saving solution designed to automate air conditioners and lighting systems based on human presence. With a comprehensive 360-degree detection angle, it ensures reliable performance in diverse environments like offices, conference rooms, and hallways. The device features breakthrough technology that can learn remote codes for seamless air conditioner management, significantly reducing energy waste.
Technical Performance
Performance Metrics
360 °
Detection Angle
240 V
Max Voltage
100,000 cycles
Mechanical Life
Detection & Range
Sensing Capabilities
| Parameter | Specification |
|---|---|
| Working Distance | 5~7m (at 2.4m height) |
| Detection Angle | 360 Degrees |
| Delay-off Settings | 8 settings (1 to 30 minutes) |
Installation & Design
Physical Specifications
- Color: White
- Installation: Ceiling mount with or without holder
- Mounting: Two-clip secure fixation
- Options: Two face cover options available
Compatibility
- Supported Loads
- Air ConditionersLED LightsIncandescent LampsMotorsFluorescent Lights
Applications
Ideal For
OfficesConference RoomsStairwellsCorridorsWashroomsLaboratoriesHospitalsSchools
Technical Features
Smart Functionality
- PIR code learning for air conditioner auto-control
- One-button control for easy management
- Automatic on/off based on occupancy
- Adjustable delay-off timer
