5-Speed Ceiling Fan and Light Remote Control Switch

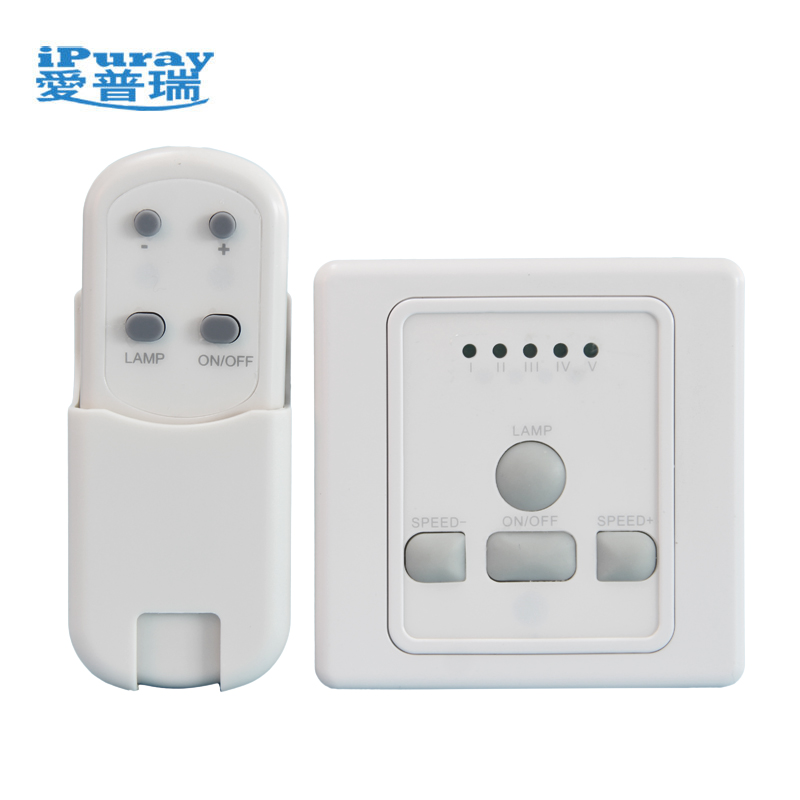

This speed control switch has a built-in micro controller unit. In addition to a wall mount keypad unit, it also has a handheld remote control.
Technical Specifications
Overview
Smart 5-Speed Fan & Light Control
The BRT-F005-T is a sophisticated speed control switch featuring a built-in micro controller for precise AC motor regulation. Designed for easy retrofit into standard wall boxes without a neutral wire, it provides dual control for both ceiling fans and integrated lighting. This versatile system includes both a wall-mounted keypad and a handheld remote, making it an ideal solution for residential and commercial environments like schools, hospitals, and restaurants.
Key Features
Speed Control
5
Speed Steps
Functional Highlights
- Dual load control outputs (Fan and Light)
- Memory function (starts at last used speed)
- Adjustable minimum speed for motor compatibility
- Wall-mount and remote control operation
- No neutral wire required for installation
Technical Specifications

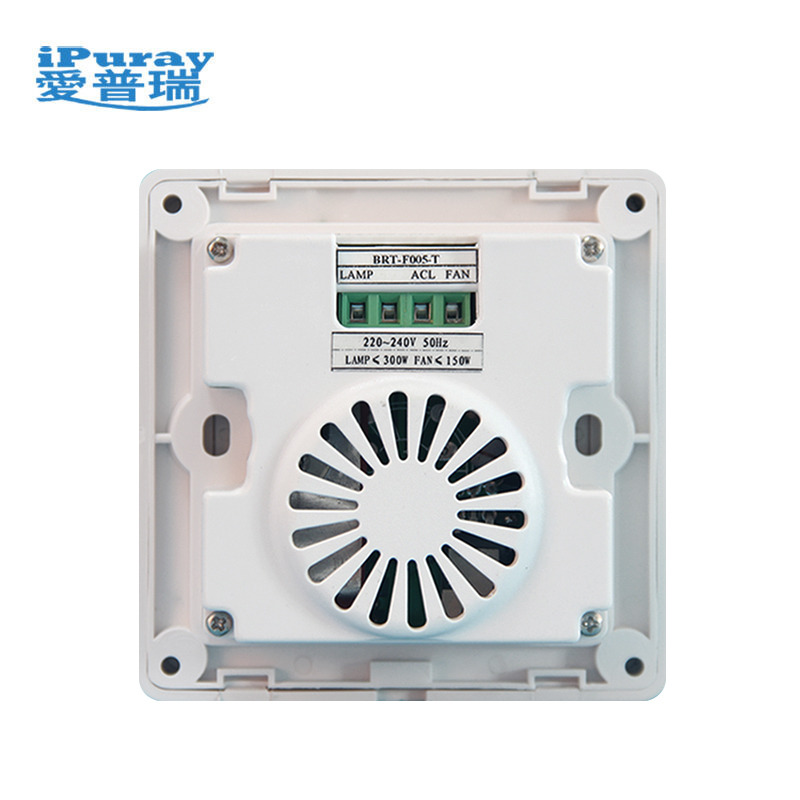

Electrical Ratings
| Parameter | Value |
|---|---|
| Input Voltage | 220-240V AC 50Hz |
| Lamp Load Capacity | Up to 300W |
| Fan Load Capacity | Less than 150W |
| Material | ABS-V0 Flame Resistance |
- Design Series
- Classical 86 series
Applications
Compatible Equipment
- Ceiling Fans with Lights
- Ventilation Fans
- Pumps
- Blowers
- Recommended Applications
- HomesSchoolsLaboratoriesHospitalsBarsRestaurants
Interface
Visual Indicators
5 LED Speed Indicators (I-V)Fan StatusLight Status
