Reversible 5-Speed Fan Controller with Remote

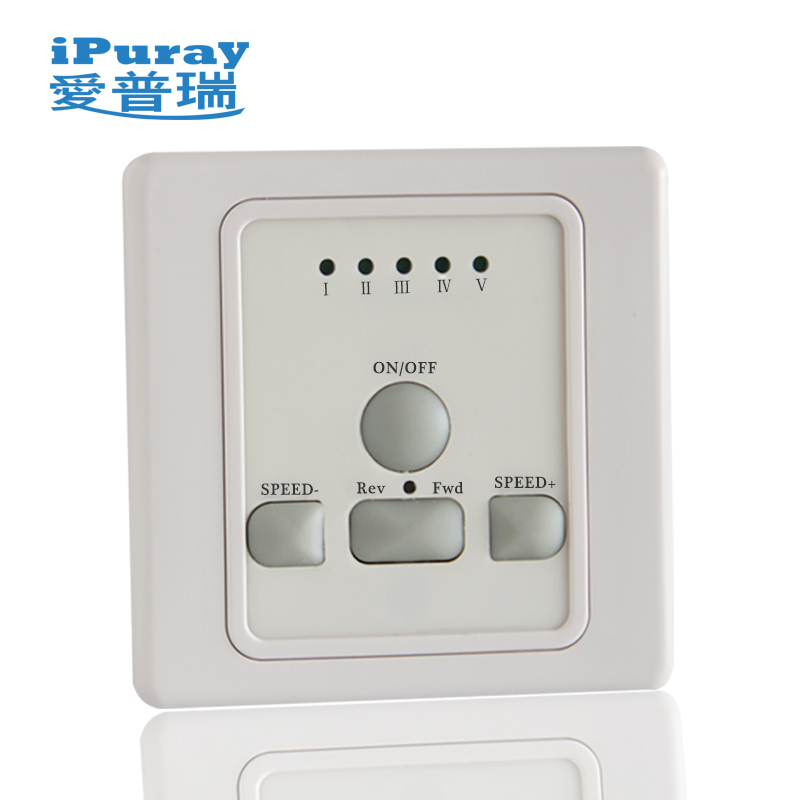

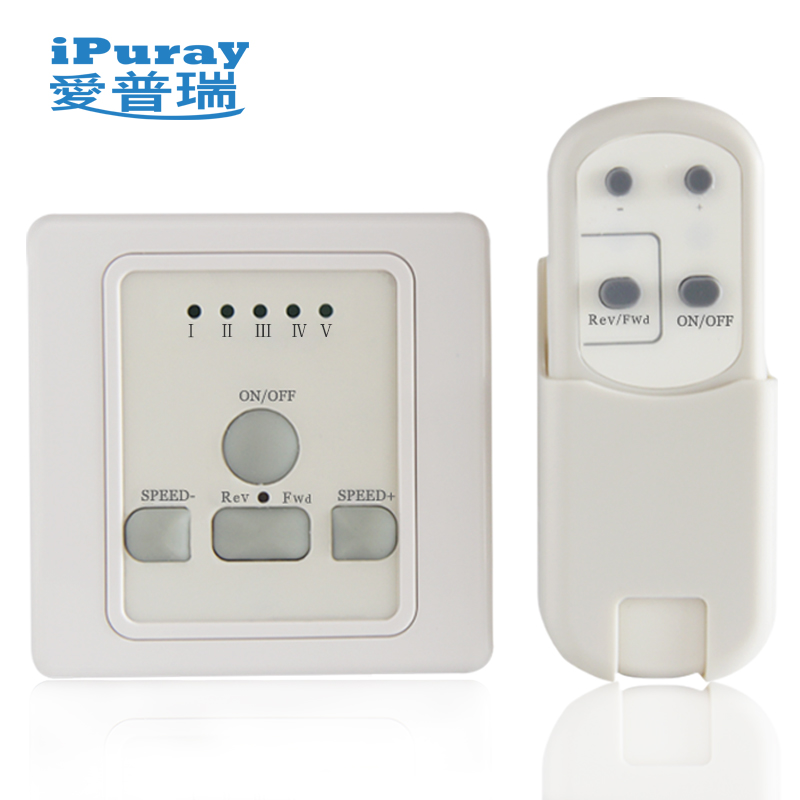

This is a speed control switch with a built-in micro controller unit. It features a wall mount keypad unit and a handheld remote control.
Technical Specifications
Overview
Versatile Reversible Fan Control System
The BRT-F013-T is a high-performance speed control switch featuring an integrated micro-controller for precise AC motor management. It offers a dual-control interface with both a wall-mounted keypad and a handheld infrared remote, making it ideal for modern residential and commercial environments. Designed for easy retrofit into standard wall boxes, this unit provides seamless control over fan speed and rotation direction.
Key Features
Core Capabilities
- Reversible rotation for seasonal comfort (Cooling/Air Circulation)
- 5-step precision speed adjustment
- Intelligent memory function (Starts at last used speed)
- Dual control via wall panel or IR remote
- High-quality ABS-V0 flame resistance material
Technical Specifications
Power & Performance
400 W
Max Load Power
5
Speed Steps
- Motor Compatibility
- Suitable for all types of AC motors
- Design Standard
- Classical 86 series

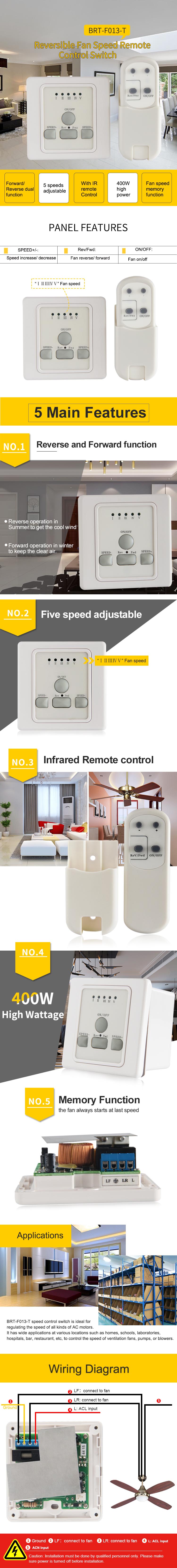

Installation & Wiring
Wiring Terminals
| Terminal Label | Connection Description |
|---|---|
| L | ACL Input (Live) |
| LF | Connect to fan |
| LR | Connect to fan |
| ACN | ACN Input (Neutral) |
Applications
Compatible Devices
Ventilation FansPumpsBlowersCeiling Fans
- Recommended Applications
- HomesSchoolsLaboratoriesHospitalsBarsRestaurants
