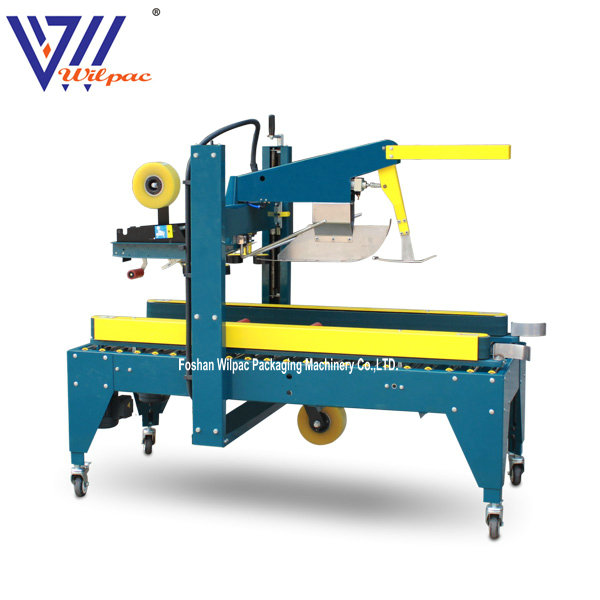

Carton Top Flap Folder and Sealer
This machine automatically folds the top flaps of cartons and seals them with tape. Equipped with adjustable height and width, it accommodates a variety of carton sizes for efficient and reliable sealing.
Technical Specifications
Overview
Automated Carton Finishing
This automatic cover folding and sealing machine is engineered for high-efficiency packaging lines. It streamlines operations by automatically folding top carton flaps and applying tape, ensuring a consistent and secure seal every time. Designed for industrial environments, it features adjustable settings to accommodate a wide range of carton dimensions, helping to reduce labor costs and increase overall throughput.
Operational Capacity
Conveying Speed
20 m/min
Max Speed
- Maximum Carton Dimensions
- 600 x 500 x 500 mm
- Minimum Carton Dimensions
- 200 x 150 x 150 mm
Technical Specifications
- Power Supply
- 400W, 220/380V, 50/60Hz
- Required Air Pressure
- 6 Kg/cm²
- Machine Footprint
- 1770 x 850 x 1520 mm
Consumables
- Compatible Tape Widths
- 48mm60mm75mm
Features
Key Operational Features
- Automatic top flap folding
- Adjustable height and width settings
- Integrated conveyor system
- Easy tape loading mechanism
- Adjustable tension control
