Black Push Button Switch with Spring Return
This black push button switch features a spring return mechanism and offers two positions. It is designed for use in controlling circuits with AC voltage up to 660V and DC voltage below 400V.
Technical Specifications
Overview
Industrial Push Button Switch

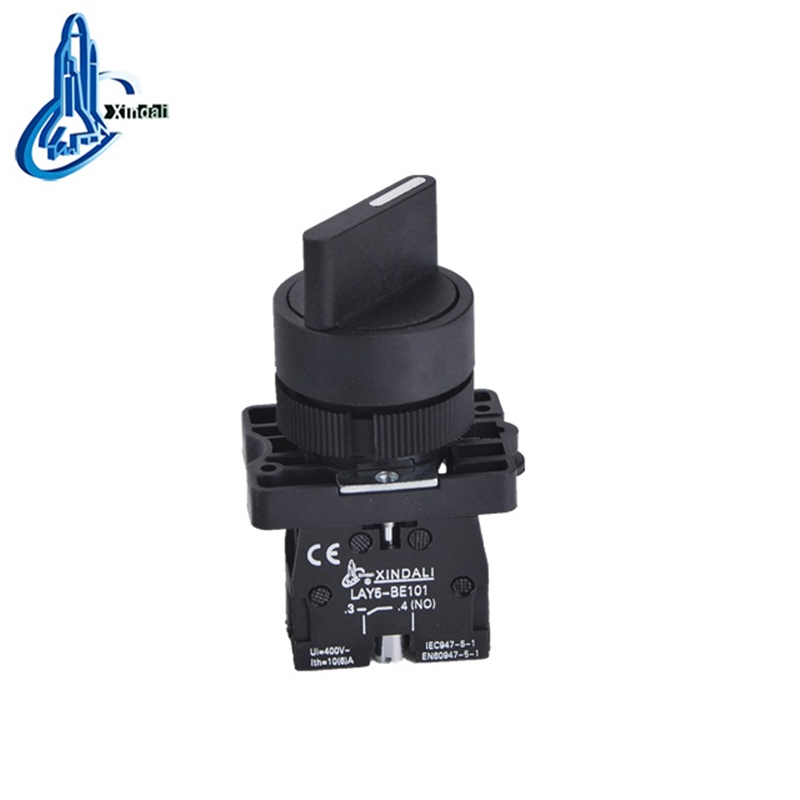

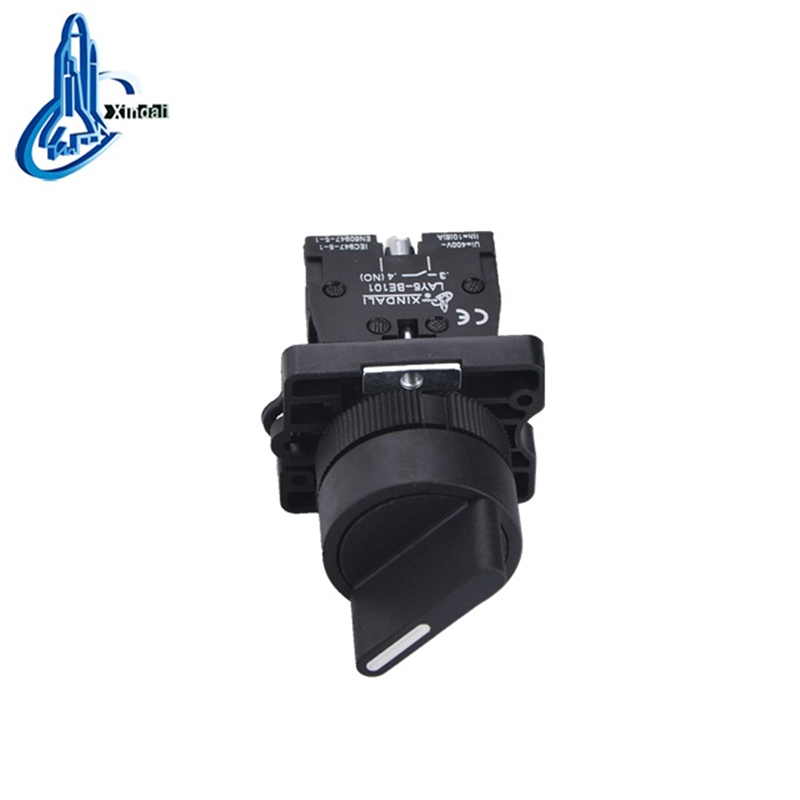

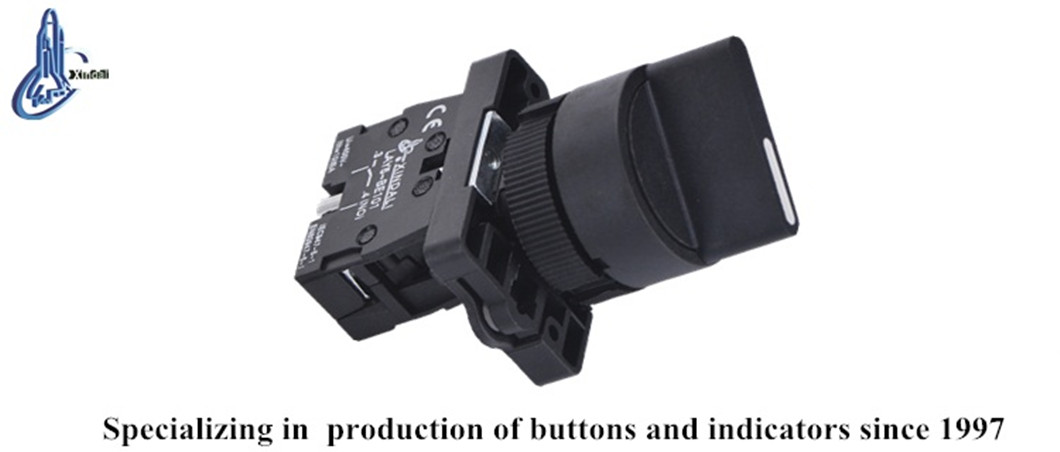

The LAY5-ED21 XB2 is a robust 2-position selector switch featuring a spring return mechanism, engineered for reliable control in industrial electrical systems. Constructed with high-grade anti-flame plastic and zinc alloy, it offers durability against electrical erosion and demanding environments. This versatile component is suitable for distribution boxes, control cabinets, and power stations, ensuring precise signal and interlocking operations.
Technical Specifications
- Rated Insulation Voltage
- 600 V
- Conventional Heating Current
- 10 A
- Insulation Resistance
- ≥50MΩ
- Contact Resistance
- ≤25mΩ
- Withstand Voltage
- AC 2.5KV/min
Performance Metrics
Mechanical Life (Cycles)
1,000,000 cycles
Pushbutton
500,000 cycles
Selector Switch
Electrical Life (Cycles)
5,000,000 cycles
Pushbutton
250,000 cycles
Selector Switch
Compliance & Standards
Certifications
CEISO 9001RoHSUL
- Compliance Standards
- GB/T14048.1IEC60947-5-1
Installation & Design
Material Composition
- Zinc alloy main body
- High-grade anti-flame plastic
- Silver alloy contacts

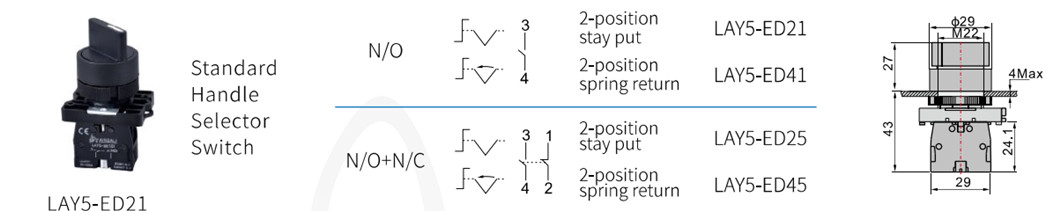

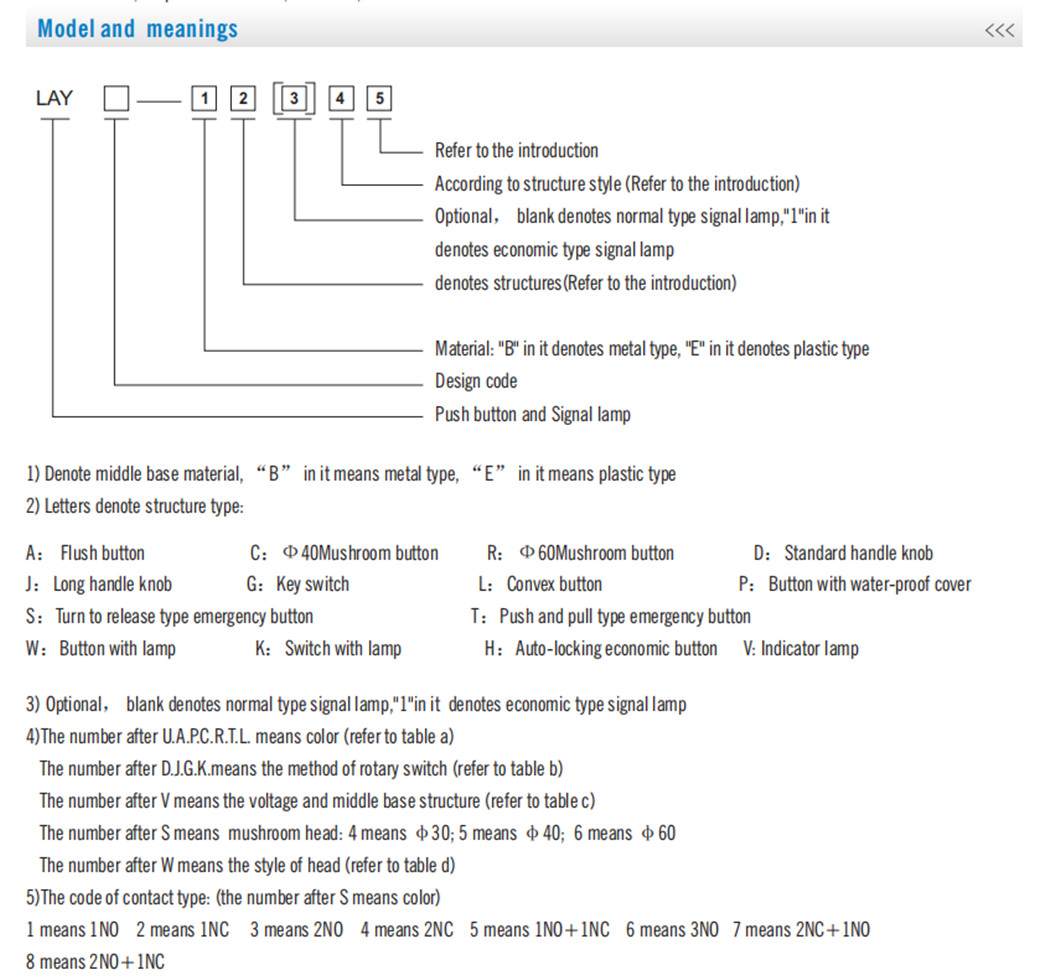

Model Dimensions Reference
| Model | Type | Action |
|---|---|---|
| LAY5-ED21 | Selector Switch | Stay Put |
| LAY5-ED41 | Selector Switch | Spring Return |
| LAY5-ED25 | Selector Switch | Stay Put |
| LAY5-ED45 | Selector Switch | Spring Return |
- Mounting Diameter
- 22 mm
