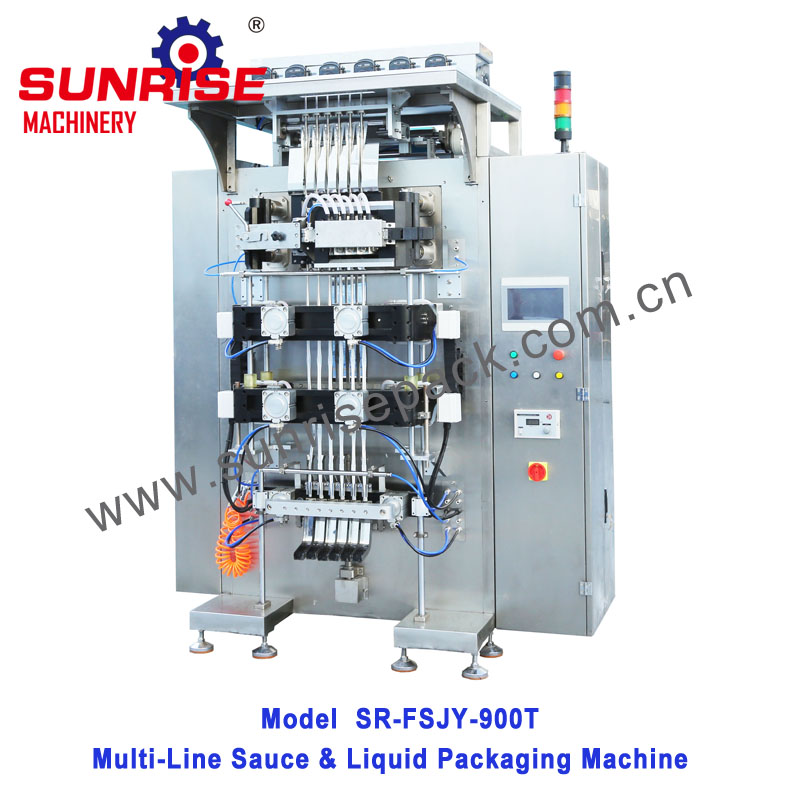

Automatic Multi-Lane Sauce Packing Machine
This automatic machine is designed for high-speed, multi-lane packaging of sauces and similar liquid or semi-liquid products. It ensures accurate filling and sealing, minimizing waste and providing consistent packaging.
Technical Specifications
Overview
High-Performance Multi-Lane Packaging
This automatic multi-lane packing machine is engineered for high-accuracy filling of viscous liquids, including sauces, condiments, mayonnaise, and medical fluids. Featuring a 12-lane design and advanced servo-motor control, it delivers consistent, high-speed production with minimal film waste. The system incorporates specialized anti-leakage and anti-static technologies to ensure clean, neat sachets, making it an ideal solution for high-volume food and healthcare packaging environments.
Technical Specifications
- Maximum Film Width
- 900 mm
- Number of Lanes
- 12
- Production Capacity
- 30-60 bags/min/line
- Max Filling Range
- 40 ml
- Power Supply
- 380V, 50HZ, 5KW
- Air Consumption
- 0.5 L/Min
- Weight
- 1500 kg
- Dimensions (L*W*H)
- 1800*2000*2900mm
Key Features
Operational Highlights
- 12-lane high-speed output
- Panasonic PLC and Servo Motor control
- Automatic film tracking and deviation correction
- Hot-filling capability (up to 90°C with optional jacket hopper)
- Easy-tear notch design

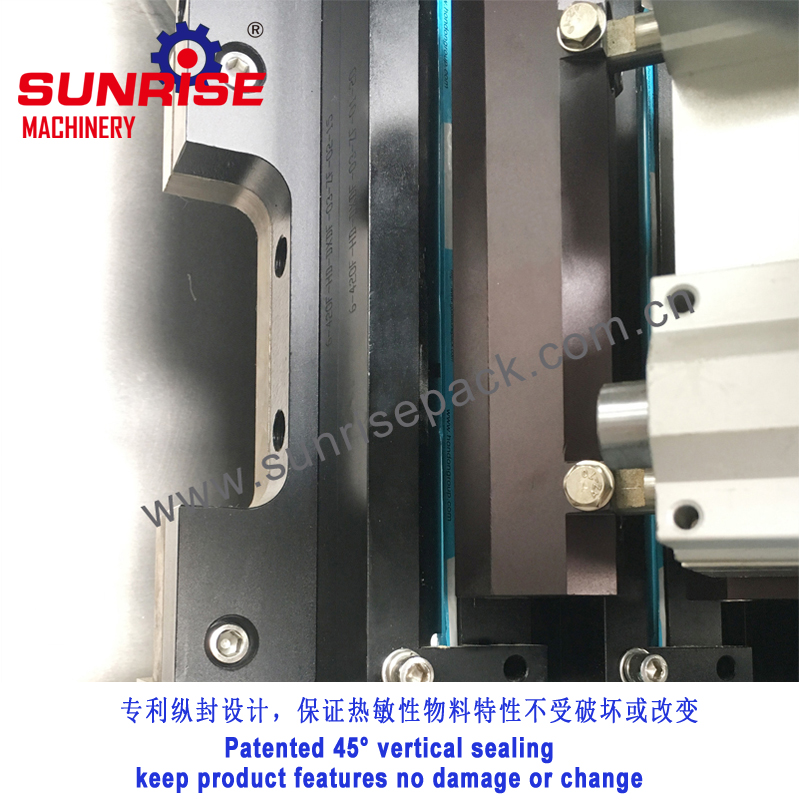

- Anti-static and anti-leakage technology
- Remote tele-assistance support
- Compatible Materials
- Heat-sealable laminationKetchupMayonnaiseSyrupShampooViscous Liquids
Performance Metrics
Key Performance Indicators
12 count
Lanes
90 °C
Hot Fill Temp
40 ml
Max Fill
