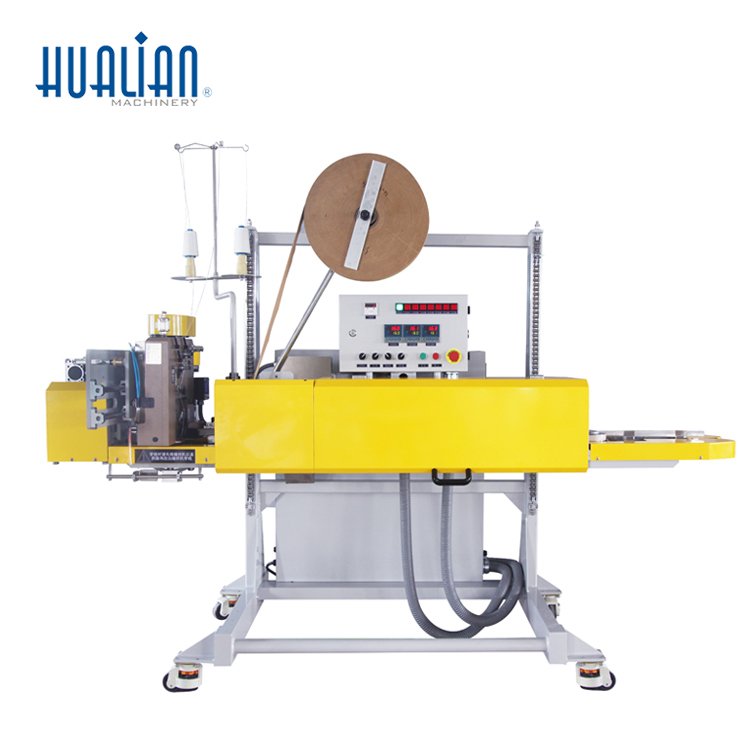

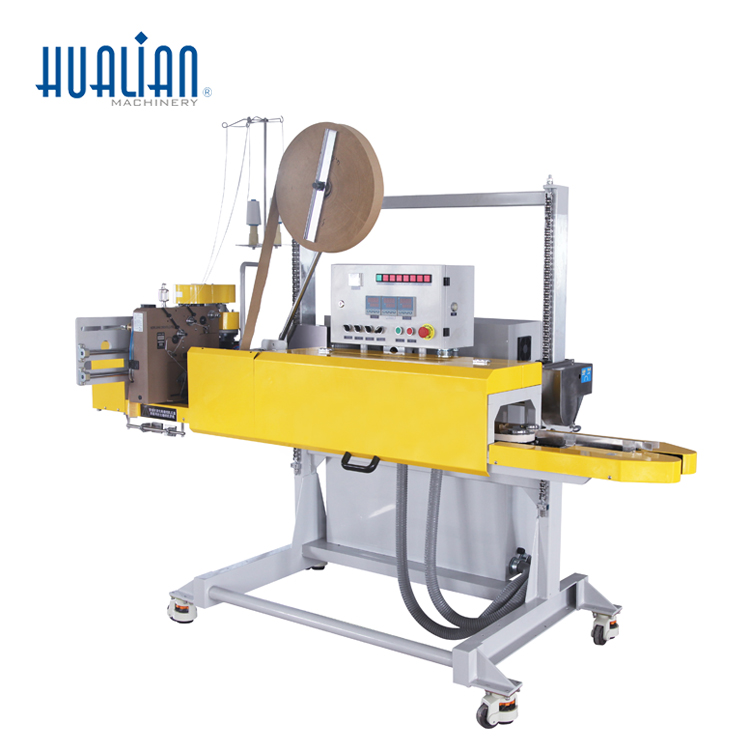

Automatic Kraft Paper Bag Sealing and Stitching Machine
The FBHK series machine is designed for packing single and multi-layer Kraft paper and paper/plastic laminated bags. It automates dust-cleaning, trimming, stitching, edge binding, cutting, heat sealing, and counting.
Technical Specifications
Overview
Automated Packaging Solution
The FBHK series is a high-performance, one-lined sealing and stitching machine engineered for industrial packaging. It automates critical processes including dust-cleaning, trimming, stitching, binding, heat sealing, and counting to ensure secure, dust-proof, and pollution-proof packaging. Designed for single and multi-layer Kraft paper as well as paper/plastic laminated bags, this machine leverages advanced light, electrical, and mechanical technology for consistent, reliable operation.
Technical Specifications
- Voltage
- 380 V
- Frequency
- 50 Hz
- Sealing Speed
- 8.5 m/min
- Temperature Range
- 0-400
- Air Source Pressure
- 0.6 Mpa
Power Requirements
Power Consumption Metrics
4.5 KW
Gross Power
0.75 KW
Transmission Power
0.37 KW
Sewing Motor Power
3 KW
Total Heating Power
Dimensions and Capacity
- External Dimensions (L x W x H)
- 2900 x 950 x 1800 mm
- Net Weight
- 500 kg
- Sealing Center Height
- 750-1450 mm
Compatibility
- Compatible Bag Materials
- Single-layer Kraft PaperMulti-layer Kraft PaperPaper/Plastic Laminated
Features
Automated Processes
- Dust-cleaning
- Trimming
- Stitching
- Edge binding
- Cutting off
- Heat sealing
- Press closing
- Counting
