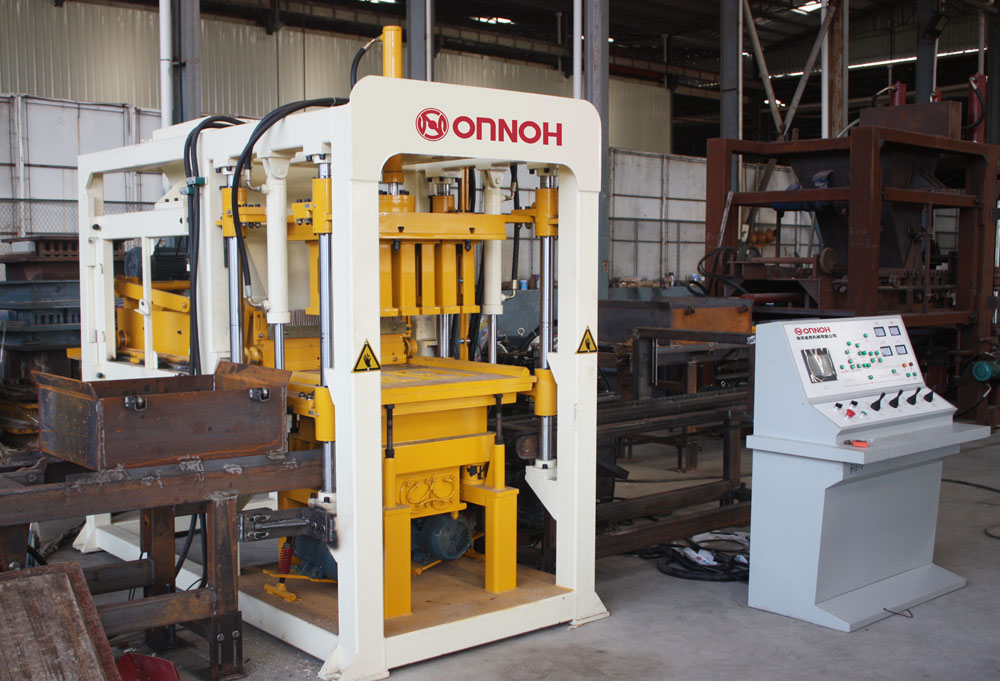

Automatic Hydraulic Block Making Machine
This automatic hydraulic block machine utilizes a PLC controller to automate the entire working process. By changing the mold, it can produce different blocks like hollow, paver, solid, interlocking and other color face bricks.
Technical Specifications
Overview
Automatic Hydraulic Block Making Solution

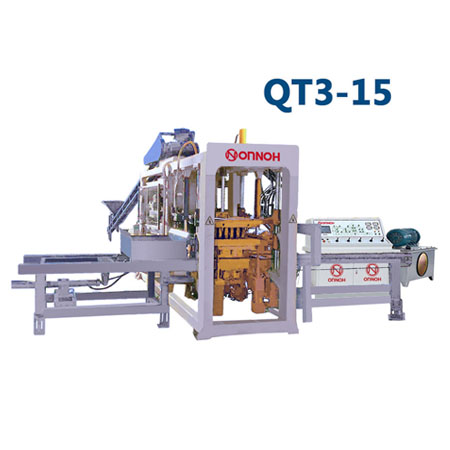

The QT3-15 is a fully automatic hydraulic block machine designed for high-efficiency production of various concrete products. By combining hydraulic pressure with advanced vibration technology, it ensures superior density and strength for hollow blocks, pavers, and solid bricks. This versatile system utilizes a PLC controller to manage the entire working process, making it an ideal choice for professional building material manufacturing.
Key Performance Metrics
Performance Highlights
25 MPa
Rated Pressure
68 KN
Vibration Force
14.7 KW
Total Power
15 S
Min Cycle Time
Production Capacity
Output by Block Type
| Block Type | Dimensions (L*W*H) | Quantity per Hour |
|---|---|---|
| Concrete Block | 390*190*190 mm | 380 - 432 |
| Solid Block | 240*115*53 mm | 2500 - 2880 |
| Porous Block | 240*115*90 mm | 960 - 1152 |
Technical Specifications
- Vibration Frequency
- 3800-4500 r/min
- Main Machine Weight
- 3.5 T
- Overall Dimensions
- 10000 * 4500 * 2600 mm
- Pallet Size
- 680 * 550 mm
Material & Application

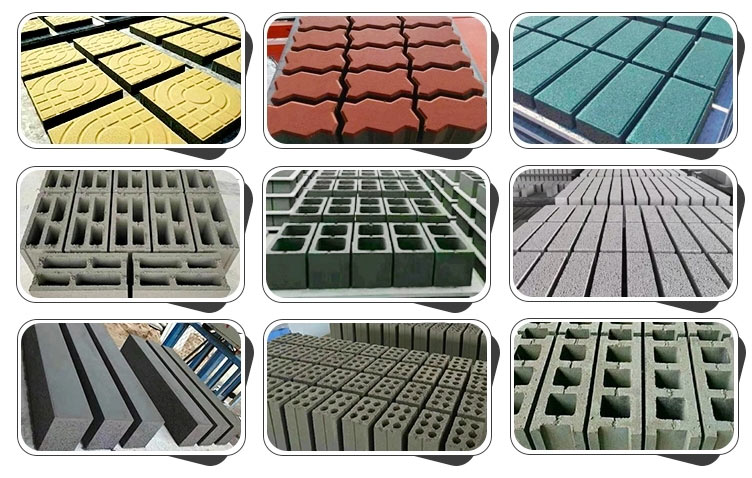

Finished Product Variety
- Hollow Blocks
- Interlocking Pavers
- Color Pavement Bricks
- Permeable Bricks
- Curbstones
- Grass Planting Bricks
- Slope Protection Bricks
- Compatible Raw Materials
- River SandStoneSlagShaleCoal GangueFly AshCement
Operational Features
Automation Level
Full AutomaticPLC ControlledHydraulic Pressing
