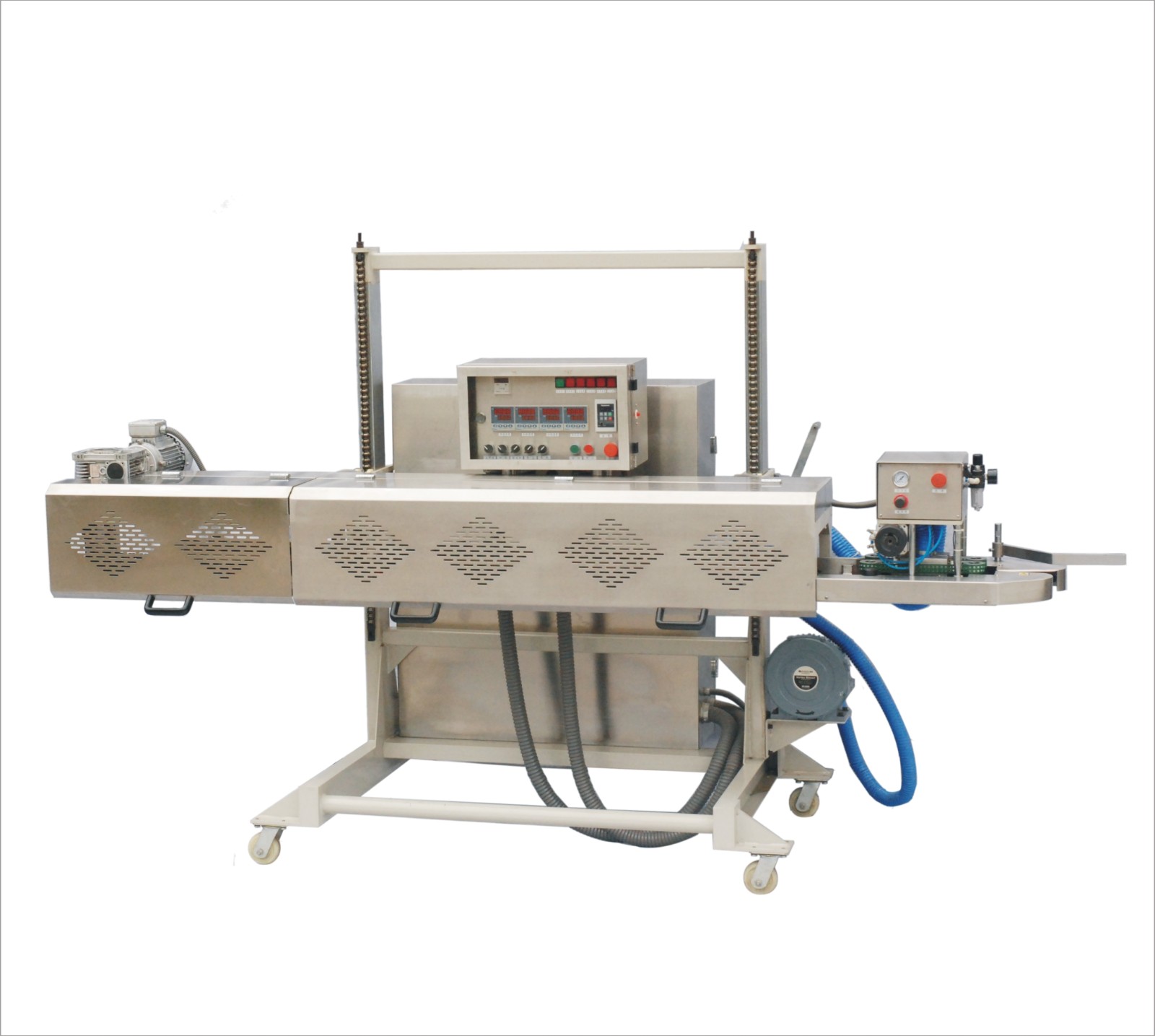

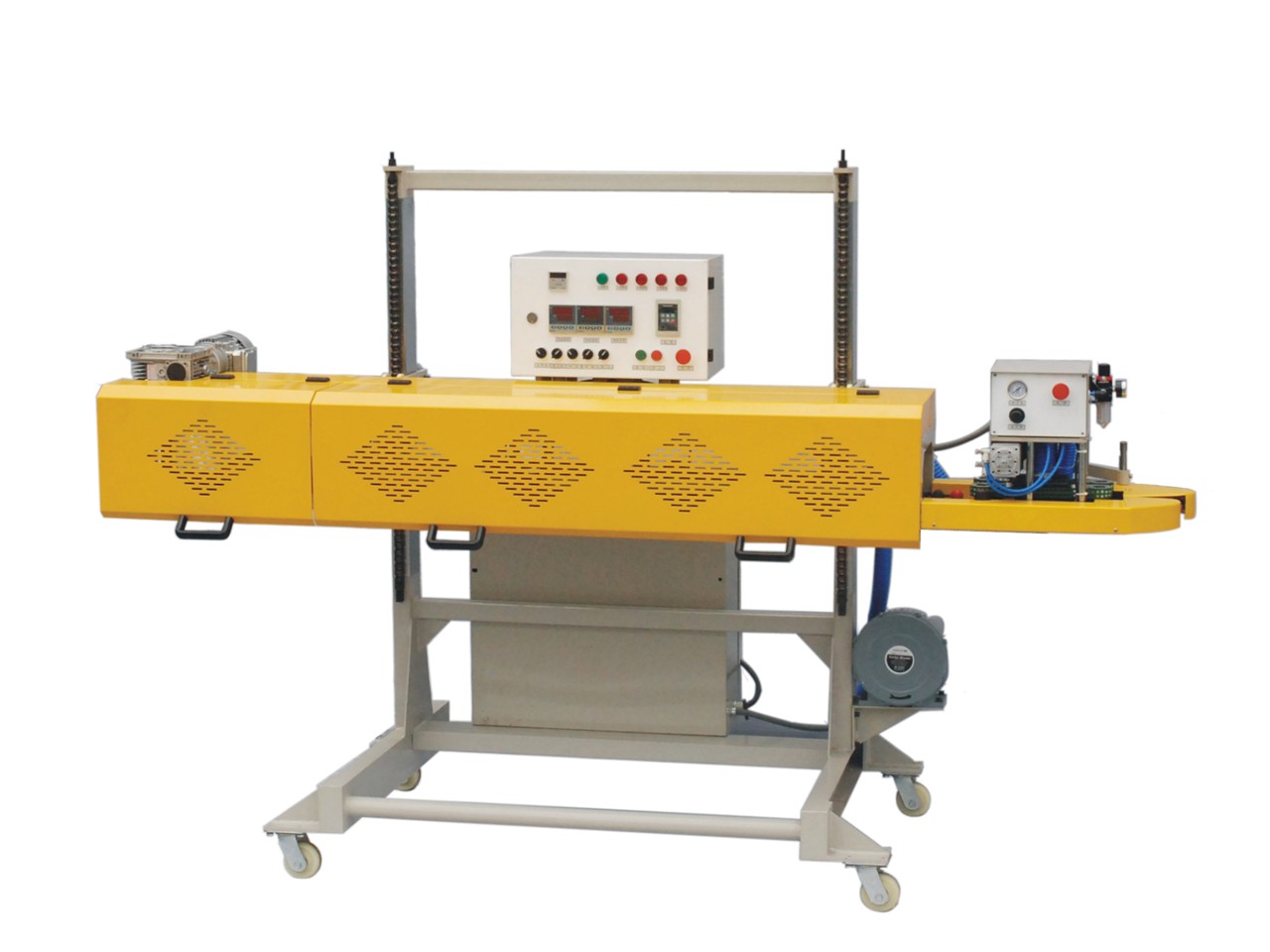

Automatic Heat Sealer for Thick Plastic Bags
This automatic heat sealer is designed for continuously sealing thick PE or PP plastic bags, as well as laminated paper/PE and AL/PE films. It is widely used for sealing bags containing chemical, medical, rice, and food products.
Technical Specifications
Overview
Heavy-Duty Continuous Sealing Solution
The FBH series automatic heat sealer is engineered for high-performance, continuous sealing of thick PE, PP, and laminated bags, including paper/PE and AL/PE films. Designed for industrial environments, it is widely utilized in sectors such as chemical, medical, foodstuff, and agricultural feed packaging. The system employs a TEFLON sealing belt to ensure rapid cooling and a smooth, high-quality seal finish.
Performance Metrics
Sealing Speed
12 m/min
Max Sealing Speed
- Operating Temperature
- 400 °C
- Max Bag Thickness
- 0.8 mm
Technical Specifications
Gross Power Consumption
| Model | Power (KW) |
|---|---|
| FBH-42 | 5 |
| FBH-42D | 5.5 |
- Power Supply
- 3PH AC 380V/50Hz
- Sealing Width
- 10 mm
- Air Source Pressure
- 0.6 Mpa
- Cooling Method
- Air cooling
Physical Dimensions
- External Dimensions
- 3015 x 950 x 1800 mm
- Net Weight
- 350 kg
- Sealing Center Height
- 750-1450 mm
Features & Compatibility
Optional Add-ons
- Bag edge trimmer
- Deduster
- Compatible Film Materials
- PEPPPaper/PE LaminateAL/PE Laminate
