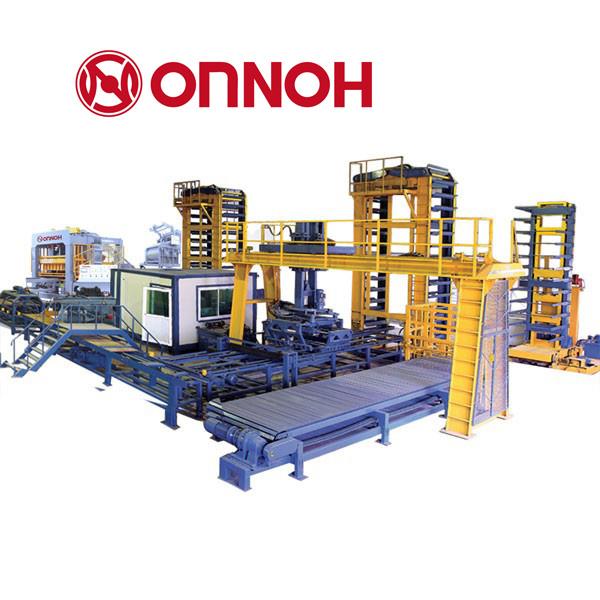

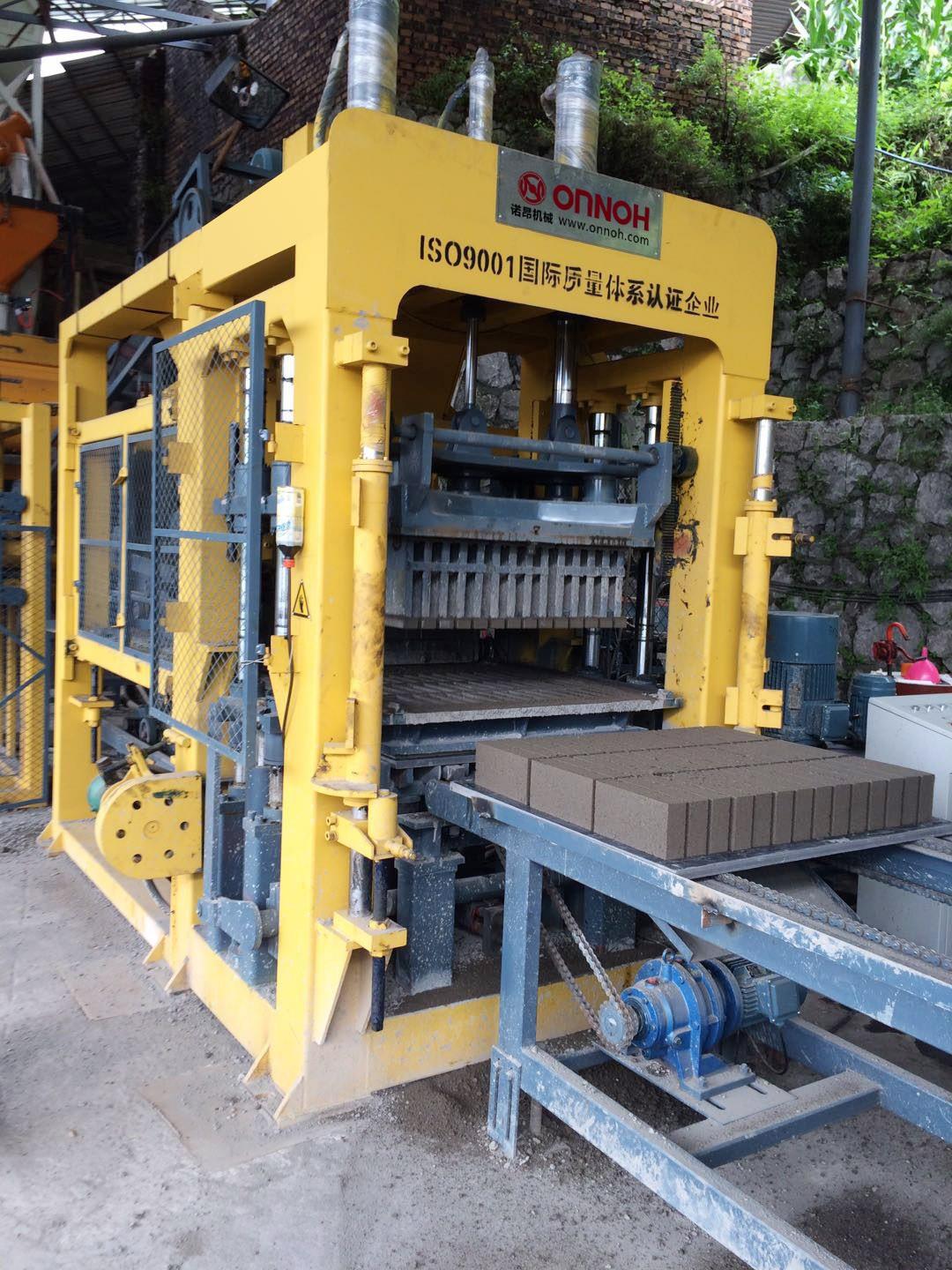

Automatic Concrete Block Production Line
This automatic concrete block production line is constructed with high-strength steel and specialized welding for durability. By changing the mold, it can produce various specifications of hollow blocks, porous bricks, pavement bricks, and slope protection bricks.
Technical Specifications
Overview
High-Efficiency Automated Production

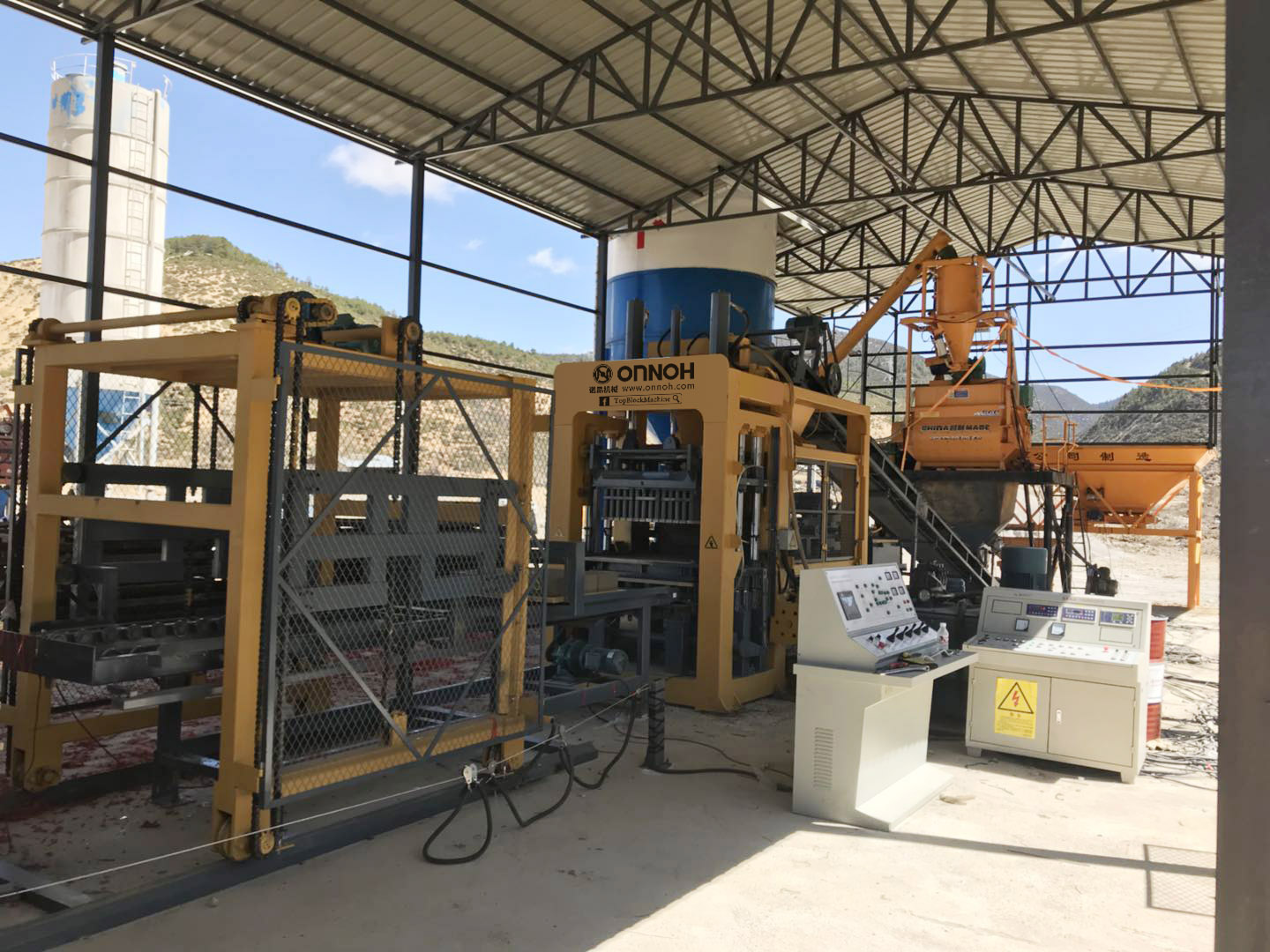

This full automatic concrete block production line is designed for high-volume manufacturing of diverse construction materials, including hollow blocks, porous bricks, and pavement pavers. The system integrates advanced servo vibration and hydraulic technologies to ensure fast forming speeds, low noise, and consistent dimensional accuracy. By automating the entire process from batching to stacking, this line significantly reduces labor costs while maintaining high production efficiency.
System Components

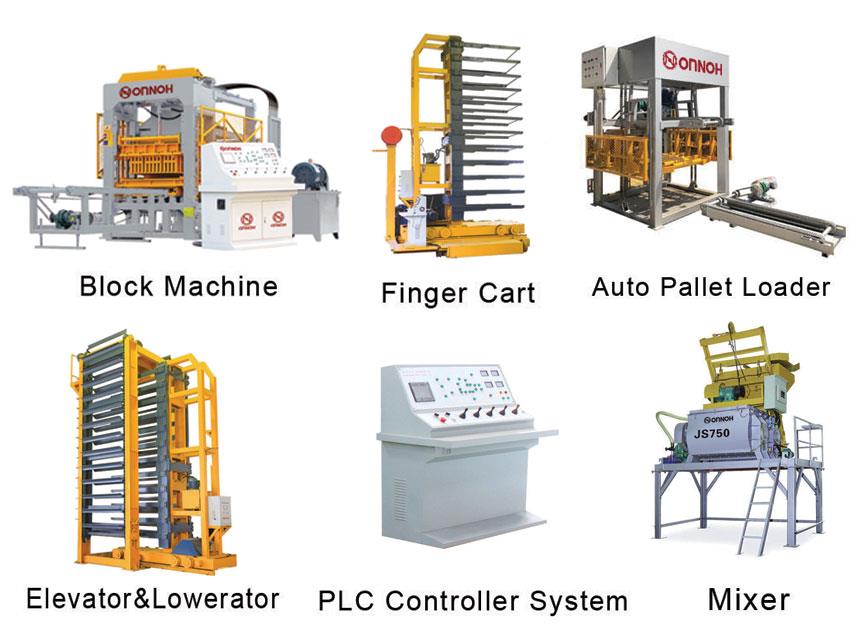

Production Line Components
- Automatic weighing system
- Twin shaft compulsory mixer
- PLC and touch screen control unit
- Hydraulic proportional relief valve system
- Heavy-duty steel structure frame
- Precision heat-treated molds
Technical Features
- Control System
- PLC-based automated control with touch screen interface
- Vibration Mechanism
- High-efficiency servo vibration with forced synchronization
- Hydraulic Efficiency
- Proportional relief valve for automatic flow and pressure adjustment
- Energy Efficiency
- 10 %
Production Capabilities
Production Process
- Raw material metering
- Batching
- Mixing
- Conveying
- Forming
- Curing
- Stacking

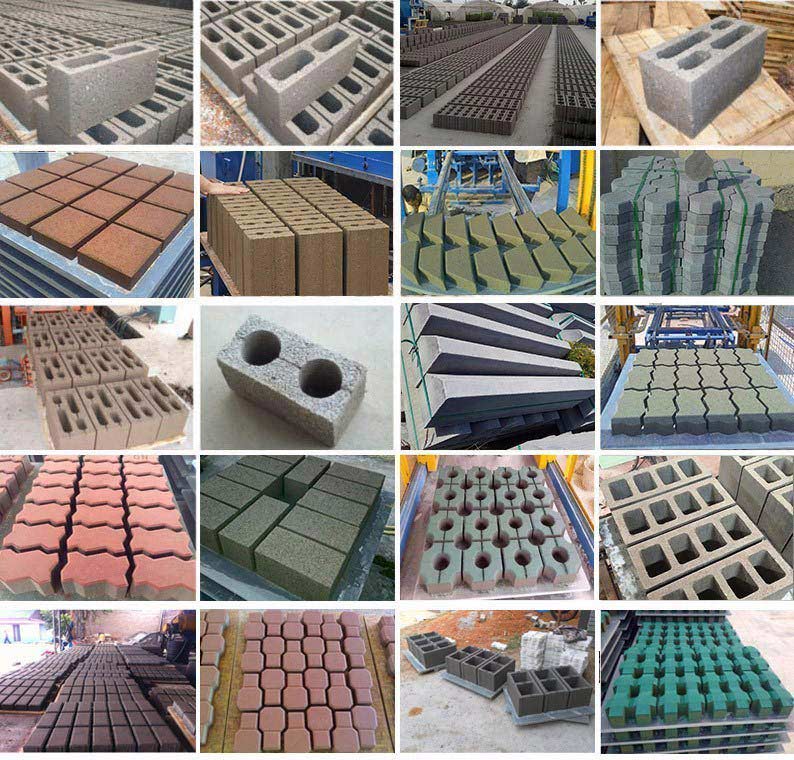

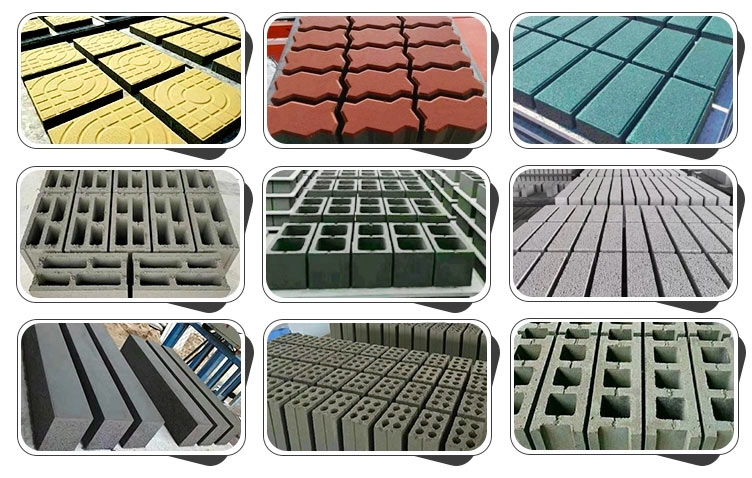

- Compatible Products
- Hollow BlocksPorous BricksPavement BricksGrass Planting BricksSlope Protection Bricks
