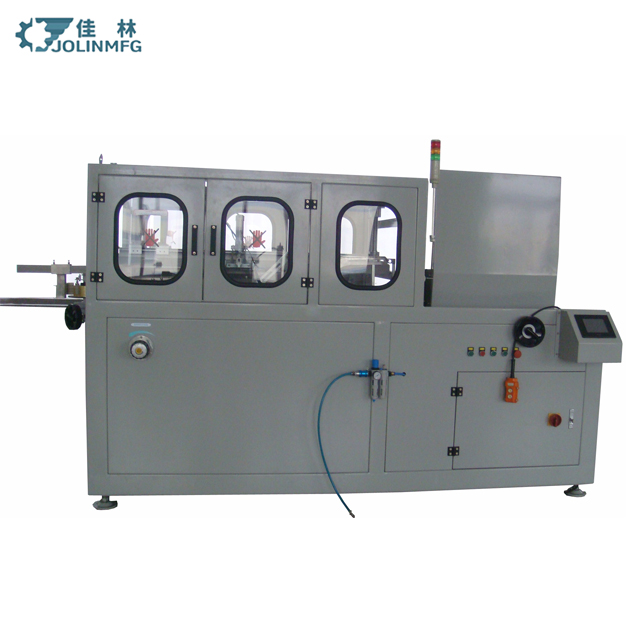

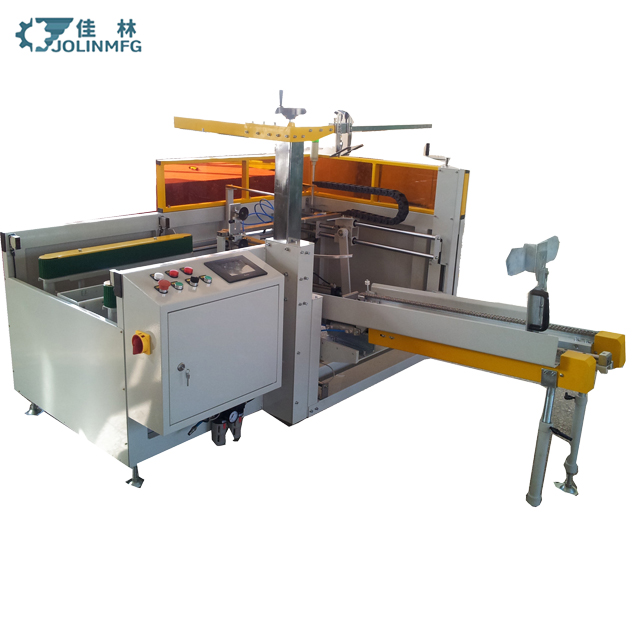

Automatic Carton Erector with Bottom Sealer

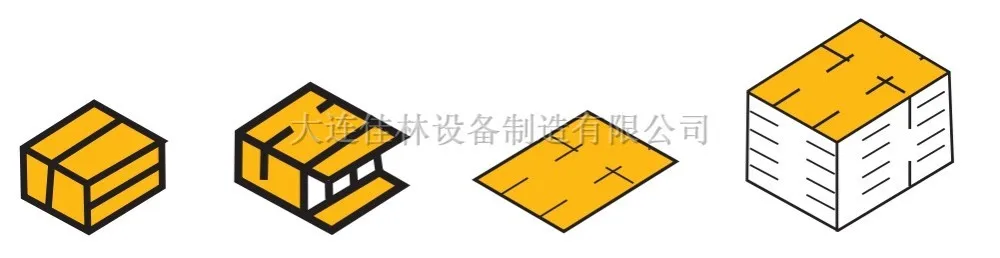

This machine automatically erects cartons, folds the bottom flaps, and seals them with tape, preparing them for filling. It features adjustable carton size settings and a large capacity magazine for carton blanks.
Technical Specifications
Overview
High-Efficiency Carton Erector
This automatic carton erector with bottom sealer is designed to streamline end-of-line packaging processes. It features a vertical carton storage and loading mechanism for rapid, continuous operation. Engineered for durability and high performance, the system allows for quick size modulation, making it suitable for various packaging requirements in food, beverage, and pharmaceutical industries.
Operational Specifications
Running Speed
600 ctns/h
Min Speed
720 ctns/h
Max Speed
Tape Width Options
48mm60mm75mm
- Carton Size Range
- L 200-450mm x W 150-400mm x H 100-350mm
- Pneumatic Requirements
- 5 to 6 kg/cm2 (150Ne/min)
Technical Details
- Equipment Dimensions
- L 2000mm x W 1900mm x H 1200mm
- Total Weight
- 350 kg
- Min Table Height
- 650 mm
Components & Control
Key Components
| Component | Specification/Brand |
|---|---|
| PLC | Siemens or Mitsubishi |
| Cylinder | AIRTAC |
| Sensors | Omron |
| Contractor & Switch | Schneider |
| Touch Screen | 5.7 inches |
- Power Requirements
- 220/380V, single phase, 50/60Hz
