Technical Specifications
Product Overview
Advanced Brick Cutting Technology

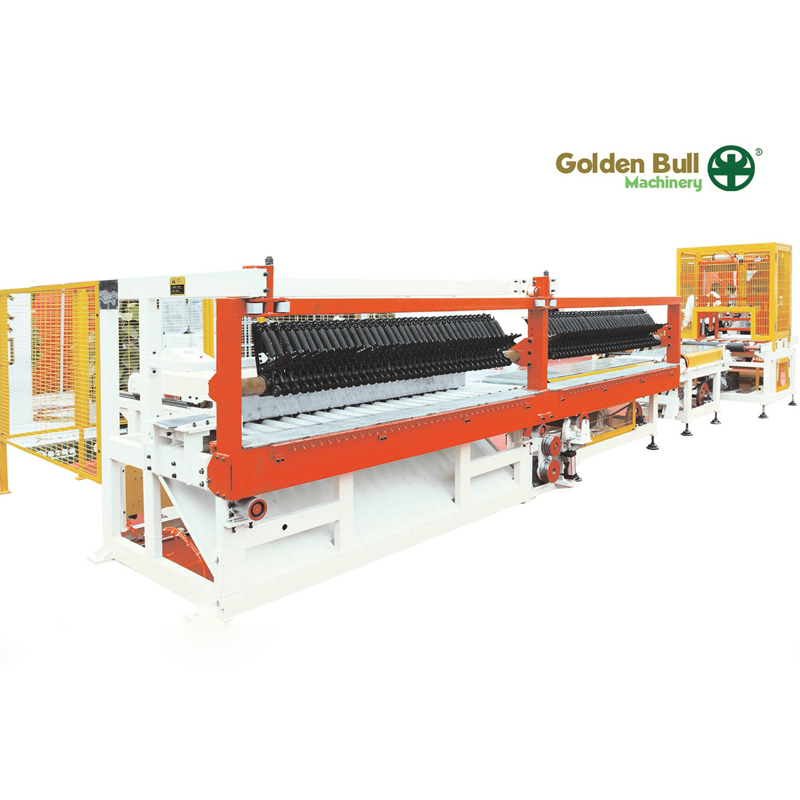

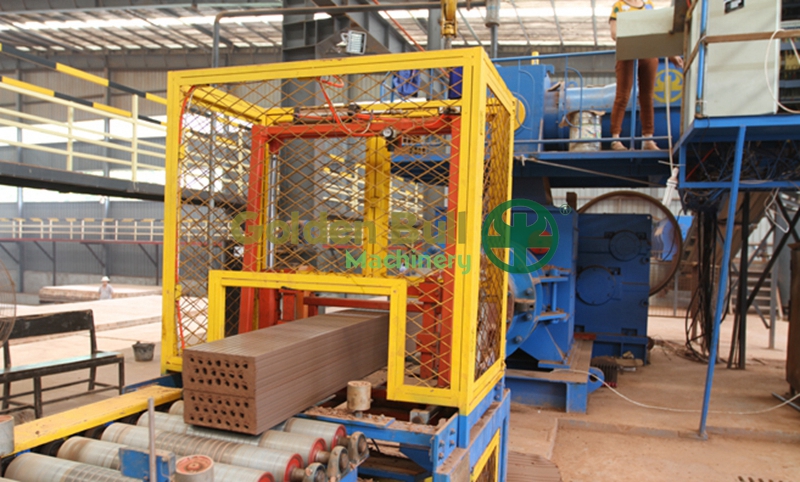

The ZQPQ series automatic brick cutting system is engineered for precision in sintering brick production. Utilizing advanced photoelectric, pneumatic, and electric servo systems, it delivers high-accuracy cutting for both solid and hollow bricks. This system is designed for ease of operation and maintenance, ensuring high yield and low power consumption in industrial environments.
Key Features
Operational Benefits
High accuracyEasy operationSimple maintenanceHigh yieldLow power consumption
- Core Capabilities
- Vertical stripe cuttingBlank cuttingPhotoelectric positioningPneumatic controlElectric servo system
Technical Specifications
Model Performance Data
| Model | Stripe Capacity (stripes/min) | Blank Capacity (pieces/hr) | Motor Power (KW) |
|---|---|---|---|
| ZQPQ27 | 16 | 25,000 | 7.5/1.5 |
| ZQPQ30 | 20 | 36,000 | 14.7 |
| ZQPH30 | 20 | 36,000 | 18.8 |
| ZQPH36 | 20 | 43,000 | 18.8 |
| ZQPH48 | 20 | 57,000 | 18.8 |
- Minimum Gas Source Pressure
- 0.6 MPa
