Automatic Block Making Machine
This automatic block making machine utilizes a PLC controller for fully automatic operation. The machine creates various concrete blocks, such as hollow, paver, and solid blocks, by changing the mold.
Technical Specifications
Overview
High-Efficiency Pallet-Free Block Production

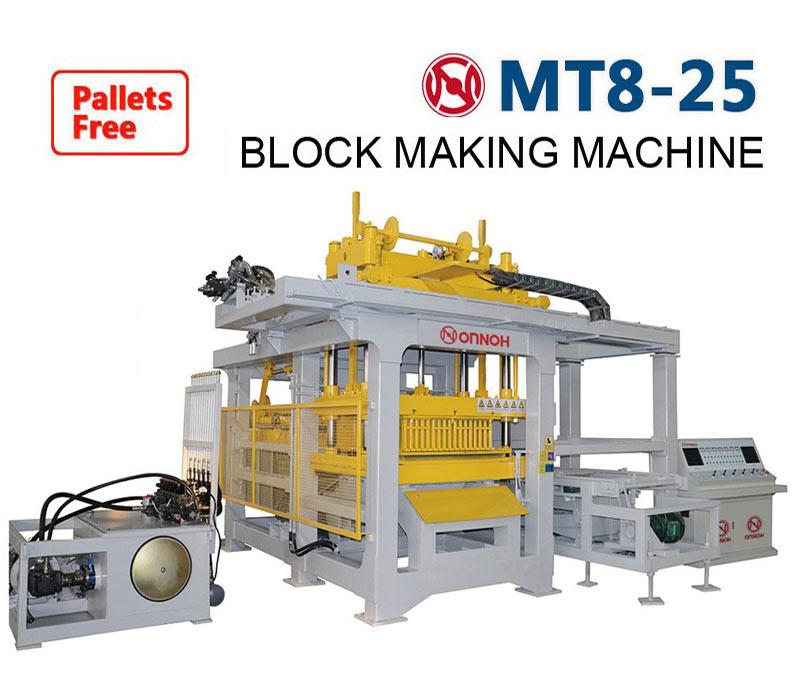

The MT8-25 is a fully automatic block making machine designed to eliminate the need for pallets, significantly reducing operational costs and loading time. Controlled by a high-precision PLC system, it offers rapid pressurization and a high degree of automation for consistent product density. This versatile machine can produce a wide range of building materials, including hollow blocks, solid bricks, pavers, and interlocking stones, by simply changing the molds.
Technical Performance
Key Performance Metrics
63.5 kW
Host Power
21.8 T
Overall Weight
16 s
Min Cycle Time
- Forming Area
- 780 × 780 mm
- Exciting Force
- 55-120 KN
- Installed Capacity
- 100 kVA
Control & Systems
- Control System
- PLC / Hydraulic Control
- Hydraulic System
- Encoder servo hydraulic control
- Vibration Table
- Variable frequency motor vibration
Production Capabilities
Production Output Capacity
| Block Type | Dimensions (mm) | Pcs/Mould | 8hr Output (Pcs) |
|---|---|---|---|
| Solid Brick | 240x115x53 | 36 | 46,272 - 51,840 |
| Hollow Block | 390x190x190 | 8 | 9,216 - 11,520 |
| Perforated Brick | 240x115x90 | 18 | 20,736 - 25,920 |
| Dutch Brick | 200x100x60 | 18 | 18,512 - 20,736 |
- Supported Block Types
- Hollow BlocksPaversSolid BricksInterlocking BlocksColor Face Bricks
Key Features
Advanced Features
- Pallet-free design saves operational costs and labor
- Double speed reduction motor in hopper for uniform cloth distribution
- Synchronous air bag drive for flexible product clamping
- Servo motor driven mold movement and lifting table
- Higher product compactness and uniformity

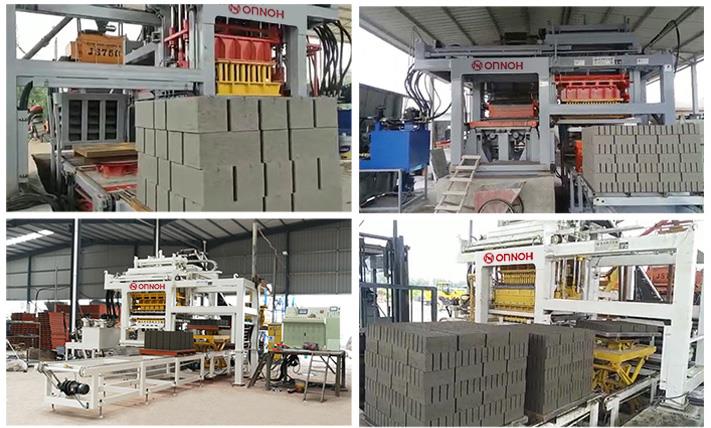

- Integrated special brick receiving line for automated stacking

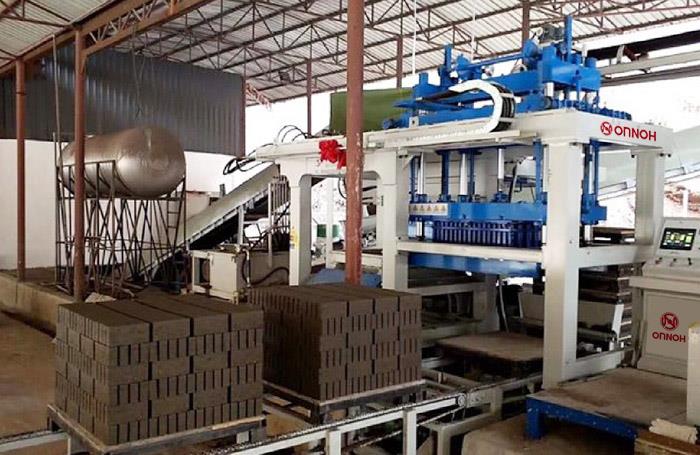

Installation Requirements
- Required Plant Area
- 800 m²
- Host Machine Dimensions
- 4680 × 3860 × 3090 mm
